Disassembly And Assembly

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not disassemble the primary piston and secondary piston assembly.

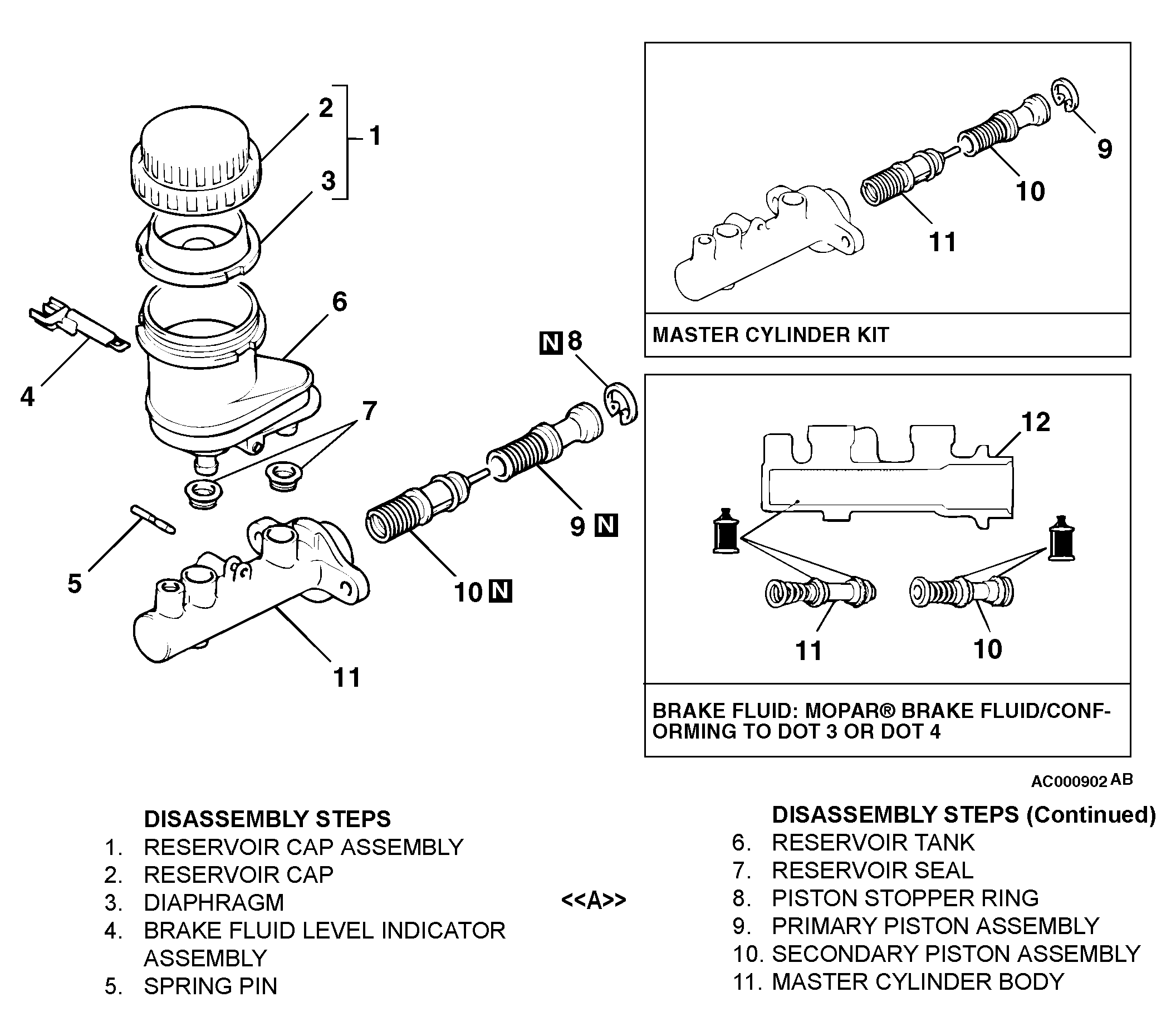

Fig 1: Identifying Master Cylinder Components
G04537108Courtesy of DAIMLERCHRYSLER CORPORATION
