WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

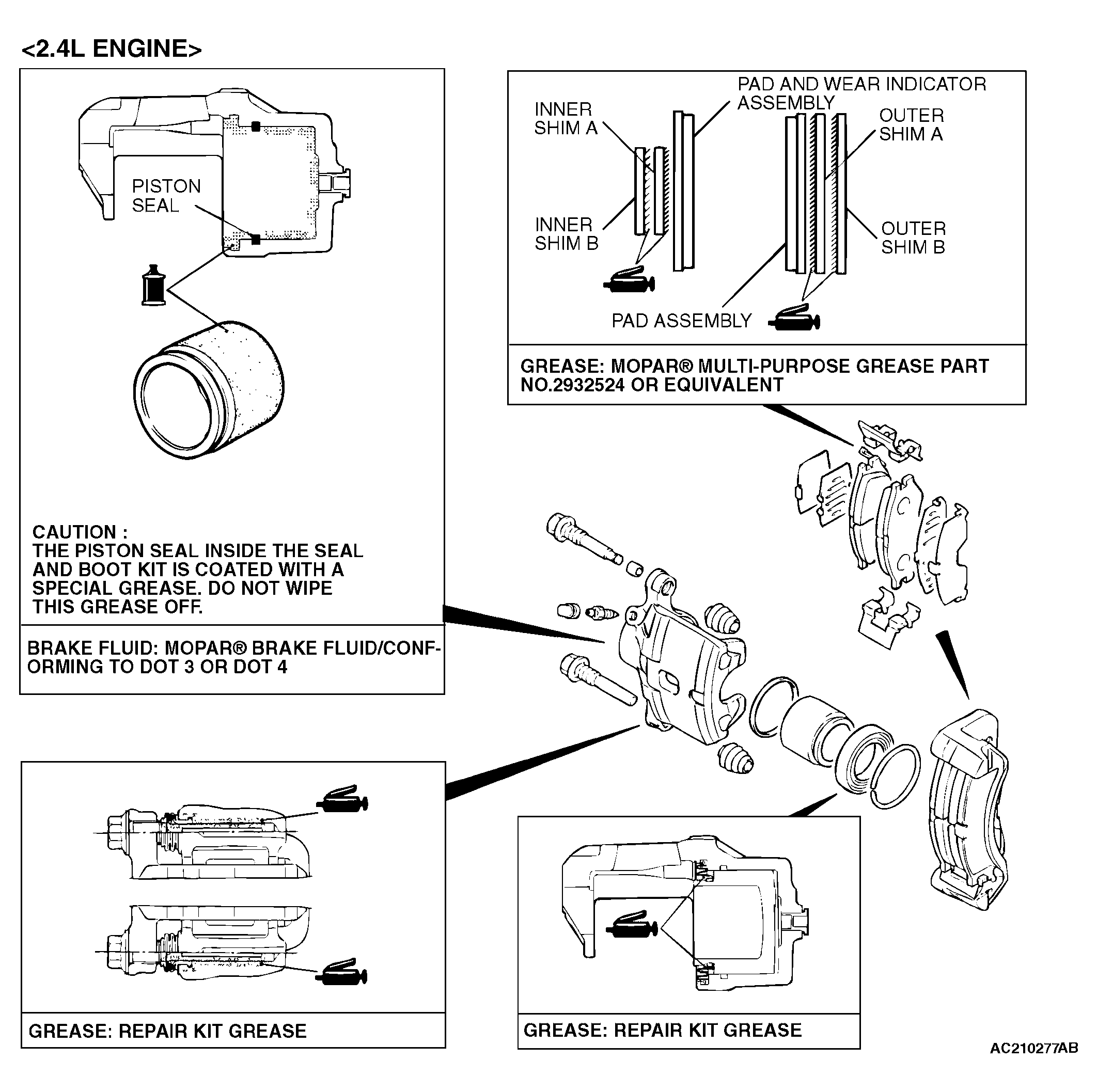

Fig 1: Identifying Lubrication Points Of Front Disc Brake Assembly (2.4L Engine)
Courtesy of DAIMLERCHRYSLER CORPORATION

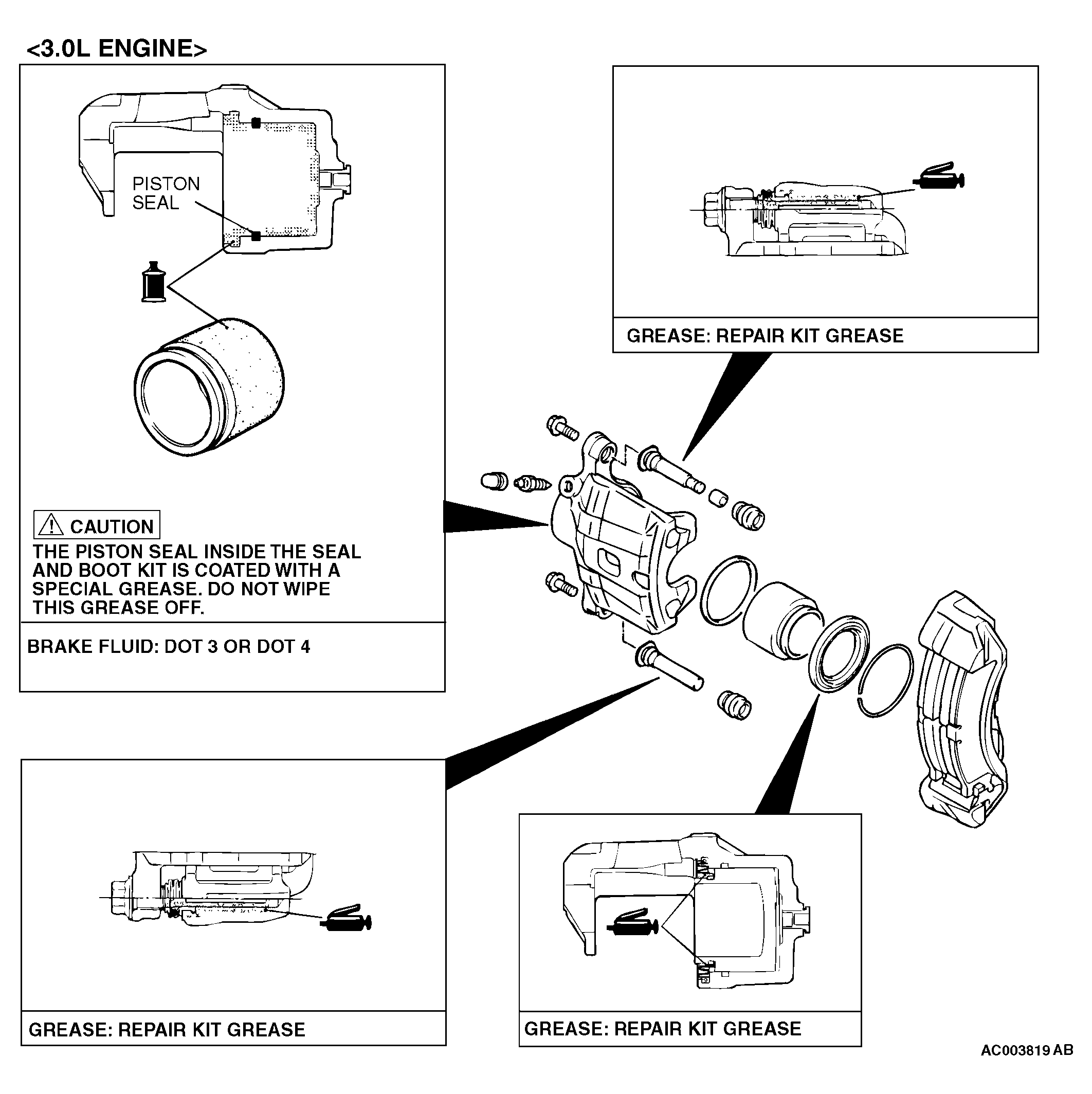

Fig 2: Identifying Lubrication Points Of Front Disc Brake Assembly (3.0L Engine)
