SRS Warning Light Check

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition key to the "ON" position. Does the "SRS" warning light illuminate for about seven seconds, and then remain off for at least five seconds after turning OFF? If yes, the SRS system is functioning properly. If no, refer to DIAGNOSIS .

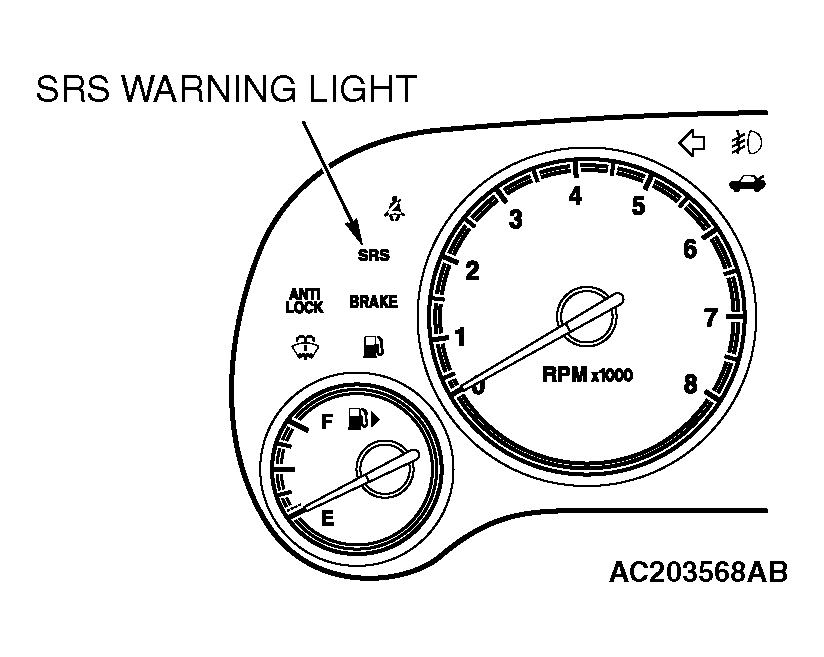

Fig 1: Checking SRS Warning Light
G04536903Courtesy of DAIMLERCHRYSLER CORPORATION
