Special Tools
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTION
| TOOL | TOOL NUMBER AND NAME | REPLACED BY MILLER TOOL NUMBER | APPLICATION |
|---|---|---|---|
| MB991502 Scan tool (MUT-II) |
DRB-III W/CH8425 |
|
|
| MB991348 Test harness set |
General service tool (jumper) |
|
|
| MB991709 Test harness set |
General service tool (jumper) |
|
|
| MB991658 Test harness set |
General service tool (jumper) | Inspection of heated oxygen sensor | |

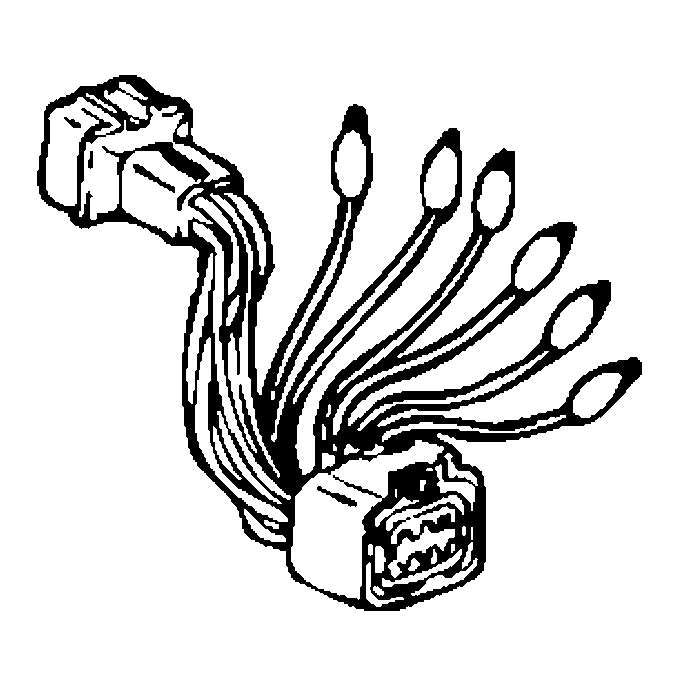

| MD998463 Test harness (6 pin, square) |
General service tool (jumper) | Inspection using an oscilloscope | |
| MD998464 Test harness (4 pin, square) |
General service tool (jumper) |
|
|
| MD998478 Test harness (3 pin, triangle) |
General service tool (jumper) | Inspection using an oscilloscope | |
| MD998709 Adaptor hose |
MD998709 | Measurement of fuel pressure | |
| MD998742 Hose adaptor |
MD998742 | ||
| MB991637 Fuel pressure gauge set |
DRB III W/Pressure sensor adaptors |
