Removal & Installation: Removal

  1. Remove crankshaft rear oil seal and oil pan. See REMOVAL .
  2. Remove seal retainer attaching screws.

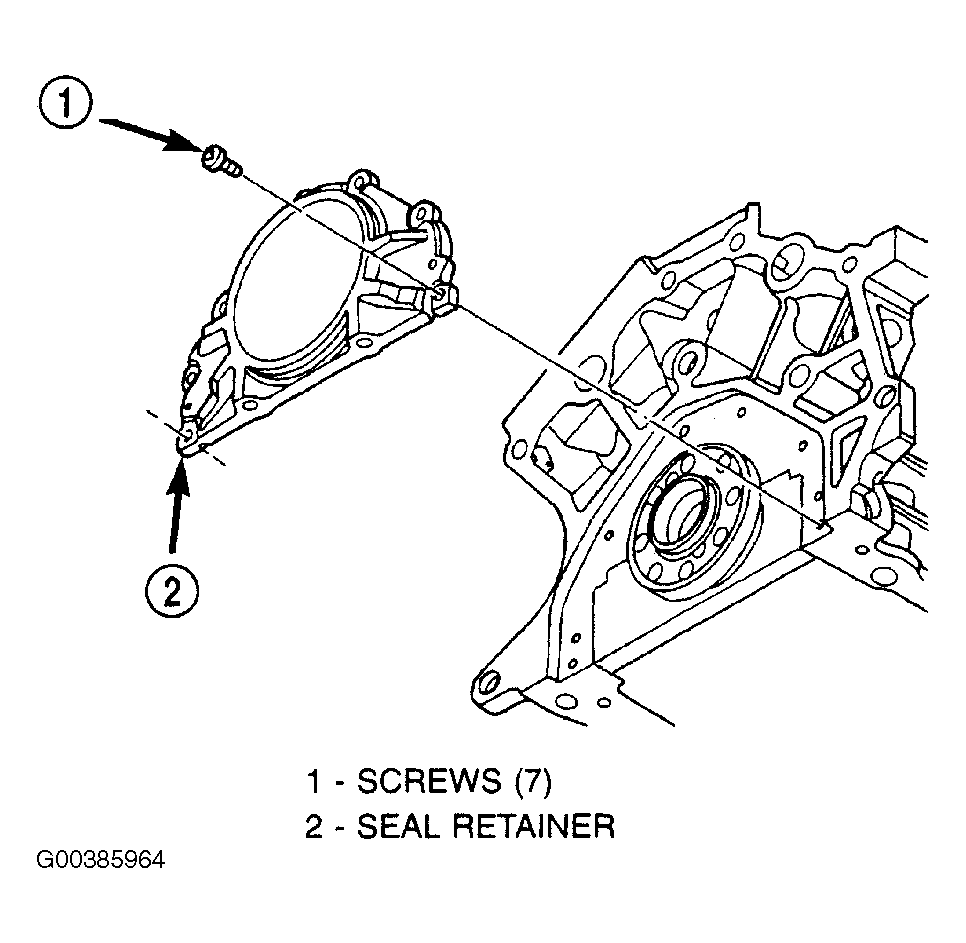

    Fig 1: Removing Oil Seal Retainer
    G00385963Courtesy of CHRYSLER CORP.
  3. Remove retainer and gasket.
