Moving Glass Panel To Vent Position
- Remove drive motor. See DRIVE MOTOR
under REMOVAL & INSTALLATION. Remove glass panel. See GLASS PANEL
under REMOVAL & INSTALLATION. Slide mechanism forward until mechanism slide is parallel with front edge of guide. See Fig 1
.

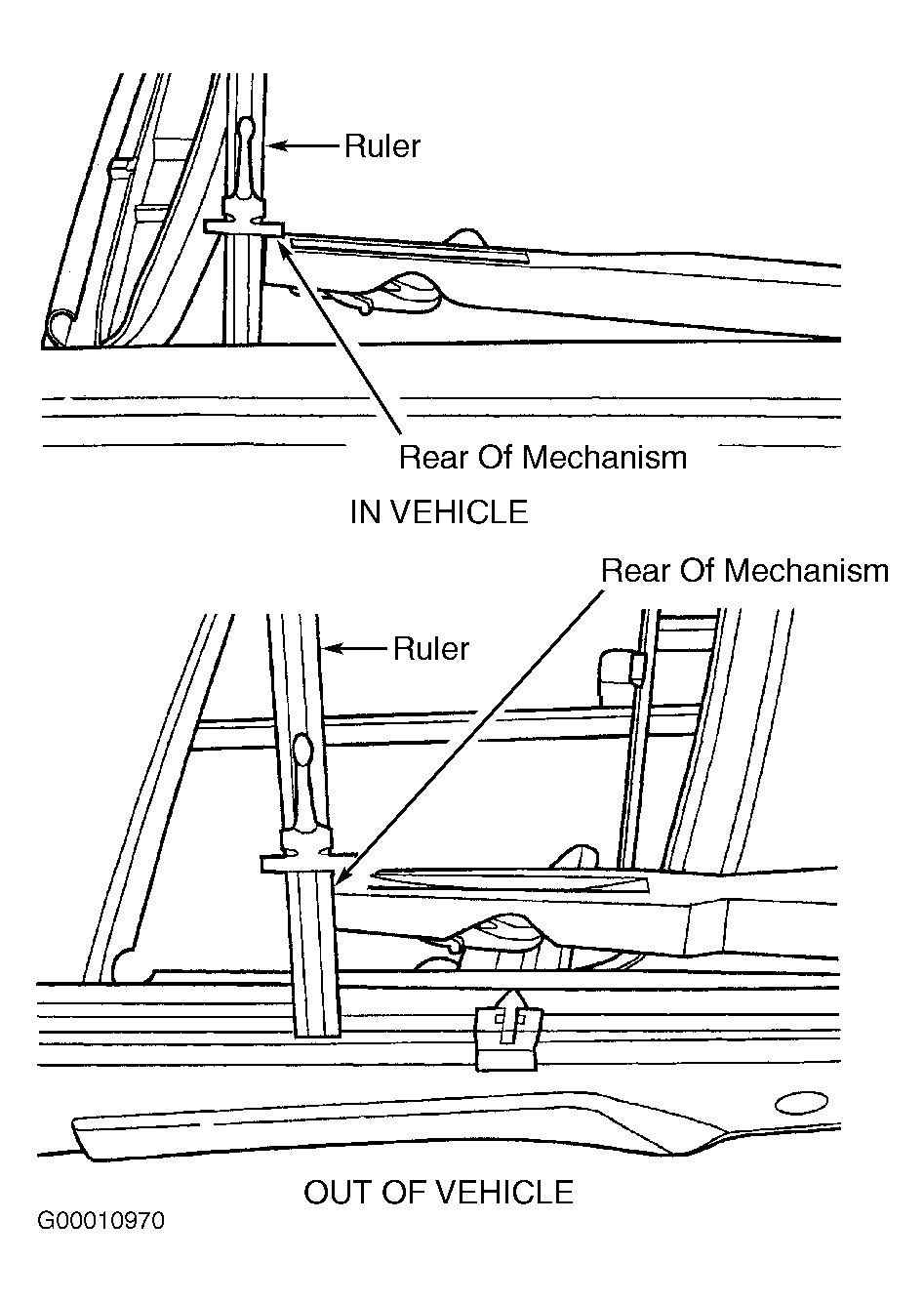

- Using a ruler, measure rear end of mechanism to guide on each side. See Fig 2
. Height should be 1.7-1.8" (44-48 mm). Adjust so both sides are within .039" (1 mm) of each other. Install drive motor. Install glass panel. Adjust glass panel. See GLASS PANEL
.
