Torque Converter Clutch (TCC) Solenoid Connector Terminal Id

TORQUE CONVERTER CLUTCH (TCC) SOLENOID CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Orange/Black	TCC Solenoid Control
2	Light Green/Black	Fused Ignition Switch Output

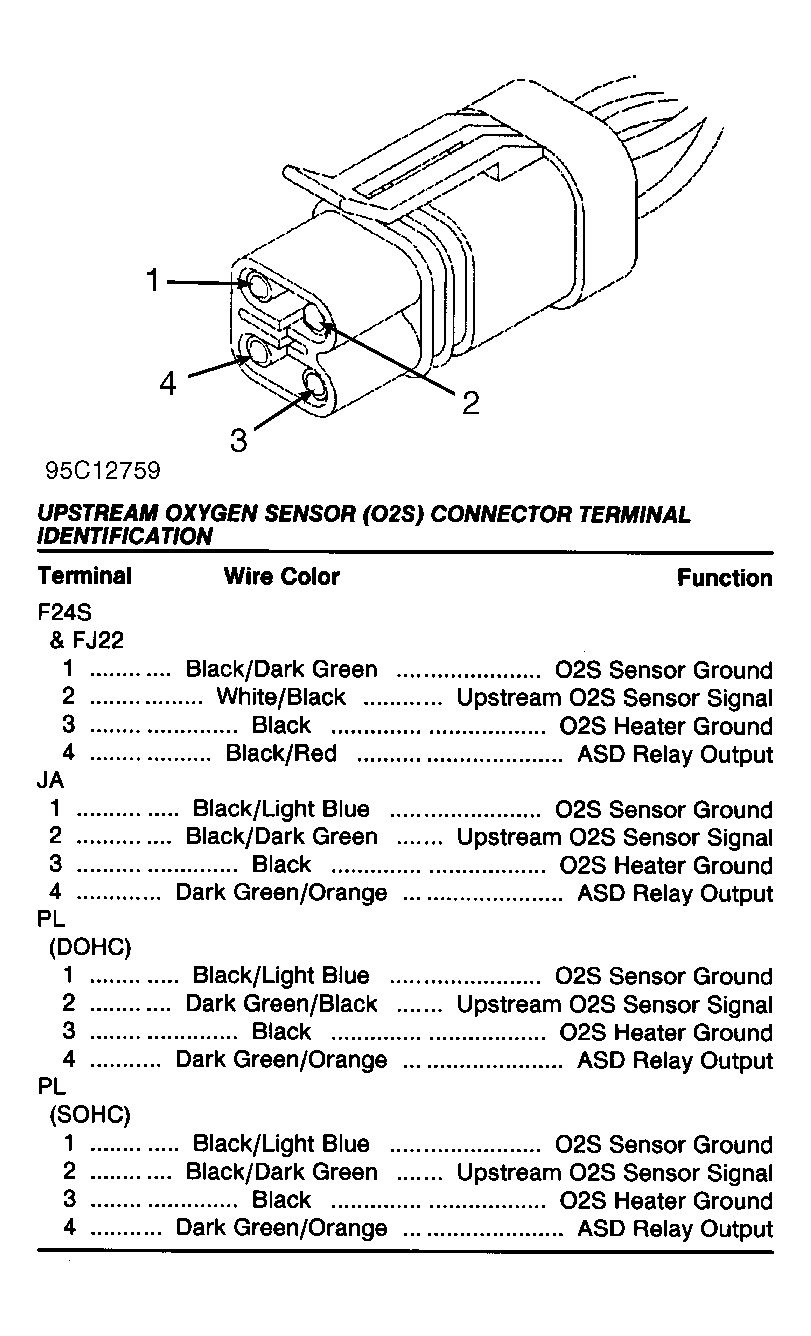

Fig 1: O2S Connector ID (F24S, FJ22, JA & PL Bodies) Upstream Oxygen Sensor (O2S)

Courtesy of CHRYSLER CORP.
