Timing Chain: Installation

Install timing chain and sprockets. Use straightedge to check alignment of timing marks. See Fig 1 . Install sprocket bolt and tighten to specification. See TORQUE SPECIFICATIONS  . To install remaining components, reverse removal procedure.

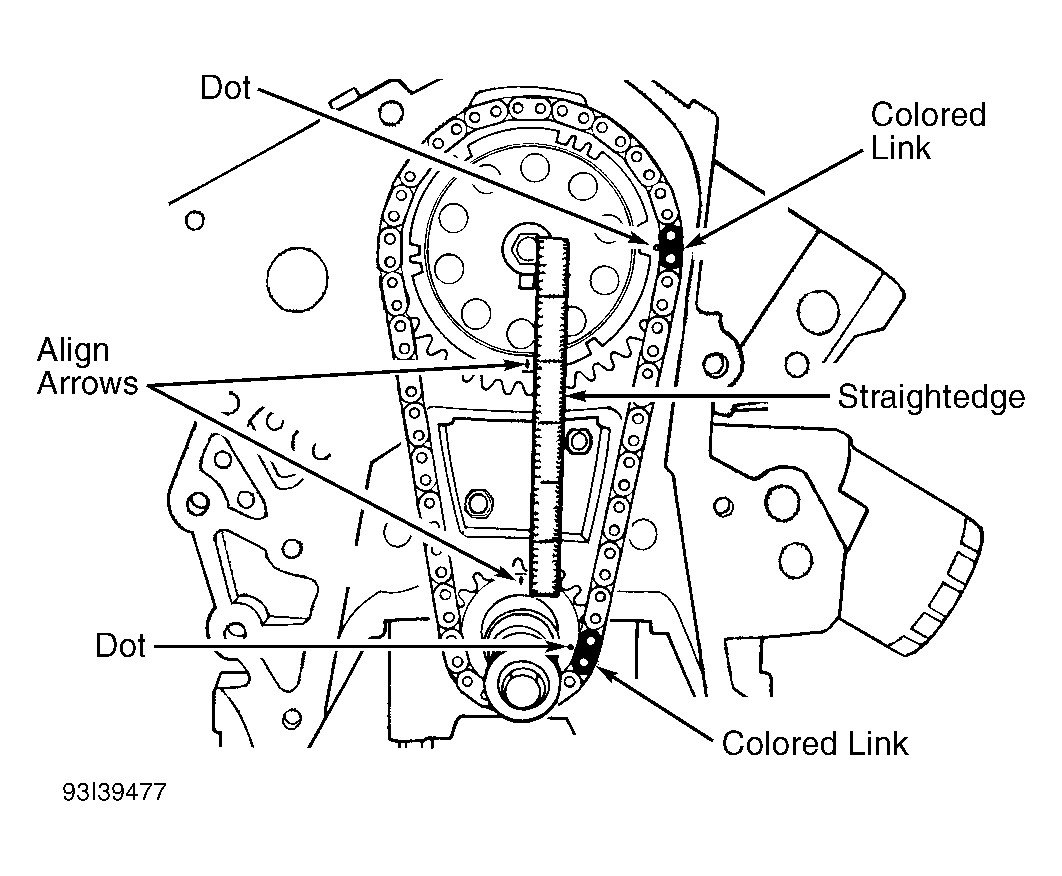

Fig 1: Aligning Timing Marks

Courtesy of CHRYSLER CORP.
