Installation Procedure

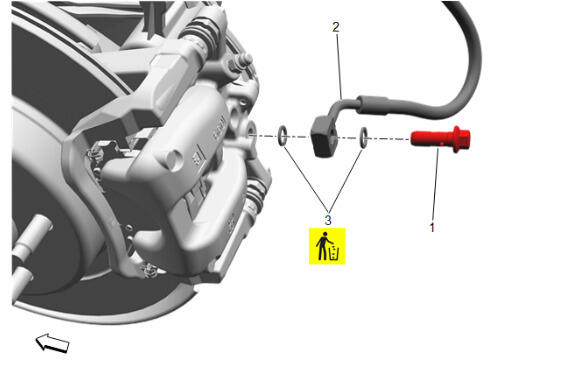

  1. GM5924406Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do NOT reuse the brake hose washers.

    Rear Brake Hose Washer (3) - Install NEW [2x]

  2. Rear Brake Hose (2) @ Rear Brake Caliper - Install
    3. CAUTION:

    Fastener Caution

  3. Rear Brake Hose Fitting Bolt (1) @ Rear Brake Caliper - Install and tighten - Fastener Specifications
  4. Remove the caps or plugs from the brake pipe fitting and the brake hose.

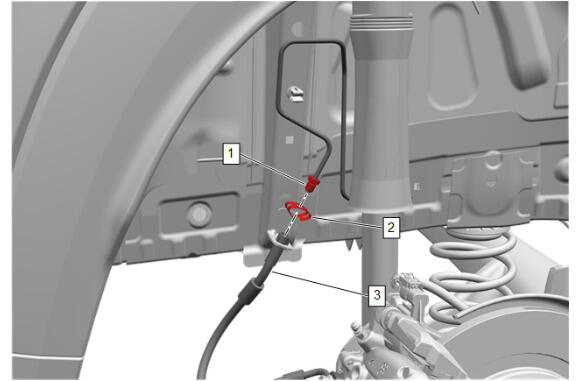

  5. GM5924405Courtesy of GENERAL MOTORS COMPANY

    Rear Brake Hose Retainer (2) - Install

  6. Rear Brake Pipe Fitting (1) @ Rear Brake Hose (3) - Install and tighten - Fastener Specifications
  7. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
  8. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  9. Bleed the brake system. Hydraulic Brake System Bleeding (Pressure)
  10. Lower the vehicle.
  11. Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
