Installation Procedure

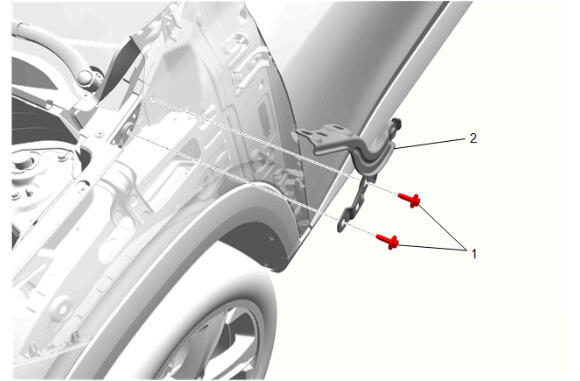

Hood Hinge (2) - Install
- Hood Hinge Bolt (1) - Install and tighten [2x] - Fastener Specifications
With the aid of an assistant, install the hood. (2)
- Hood Hinge Nut (1) - Install and tighten [4x] - Fastener Specifications
Front Fender Rear Air Inlet Seal (2) - Install
- Front Fender Rear Air Inlet Seal Retainer (1) - Install
- Close the hood.
- If necessary, adjust the hood. Hood Adjustment
CAUTION:
