Hood Adjustment

  1. Hood Hinge Bolt - Loosen [4x]

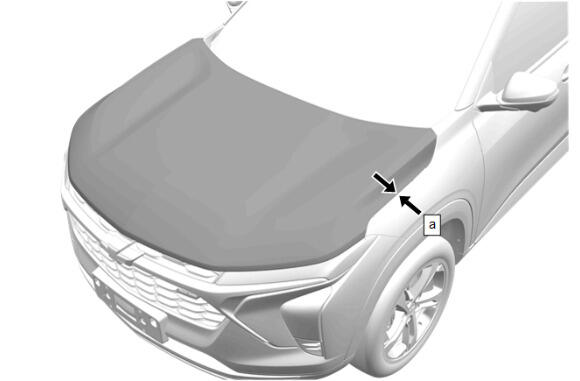

  2. GM5928650Courtesy of GENERAL MOTORS COMPANY

    Adjust the hood (1) in order to obtain an even gap on both sides between the hood and the fenders :

    • Hood (1) to front fender (a) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in)
    3. CAUTION:

    Fastener Caution

  3. Hood Hinge Bolt - Tighten [4x] - Fastener Specifications
  4. Adjust the hood bumpers as necessary.
