Installation Procedure

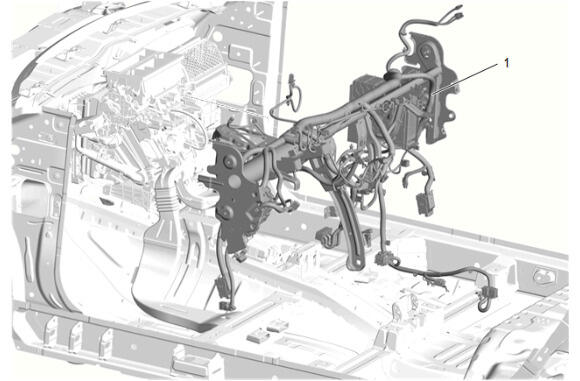

  1. GM5932267Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, position the instrument panel tie bar assembly into the vehicle. (1)

  2. Install the instrument panel wiring harness to the position noted in the removal procedure.
  3. Position the wiring harness.

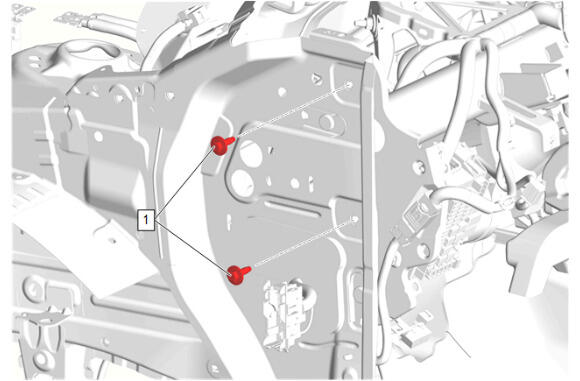

  4. GM5932255Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Instrument Panel Tie Bar Bolt - Left Side (1) @ Body Hinge Pillar Inner Panel - Install and tighten [2x] - Fastener Specifications

  5. Install the caps.

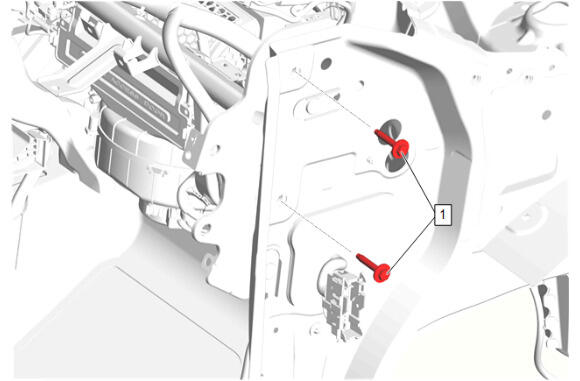

  6. GM5932256Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt - Right Side (1) @ Body Hinge Pillar Inner Panel - Install and tighten [2x] - Fastener Specifications

  7. Install the caps.

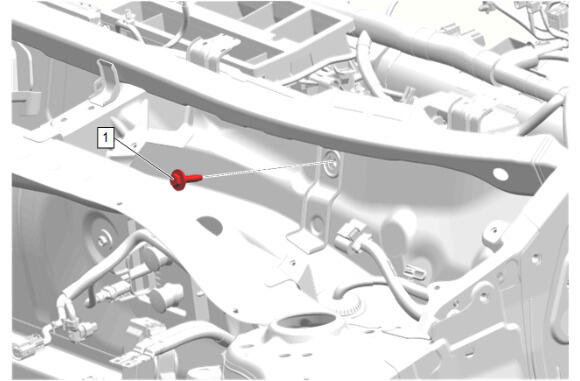

  8. GM5932254Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) @ Plenum Lower Panel - Install and tighten - Fastener Specifications

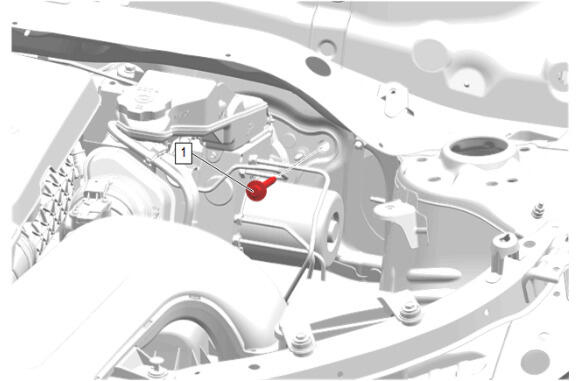

  9. GM5948871Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) @ Brake Master Cylinder - Install and tighten - Fastener Specifications

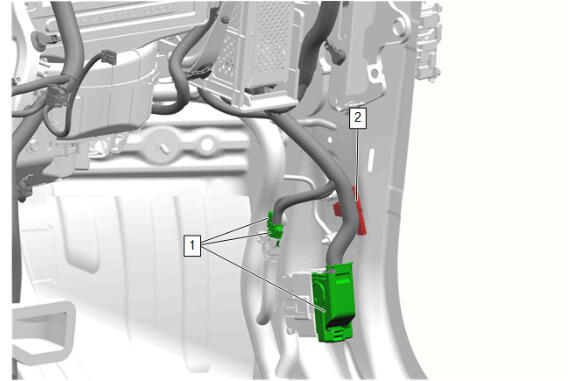

  10. GM5932265Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors. (1)

  11. Wiring Harness Retainer (2) - Install [2x]

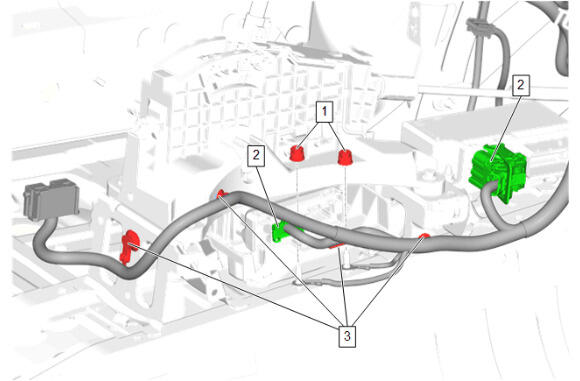

  12. GM5932264Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Wiring Harness Ground Nut (1) - Install and tighten [2x] - Fastener Specifications

  13. Connect the electrical connectors. (2)
  14. Wiring Harness Retainer (3) - Install [4x]

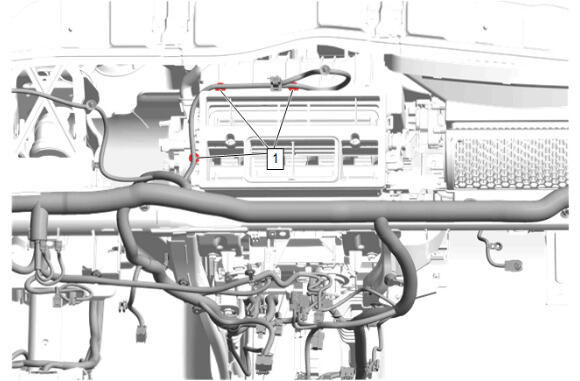

  15. GM6017758Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Install [3x]

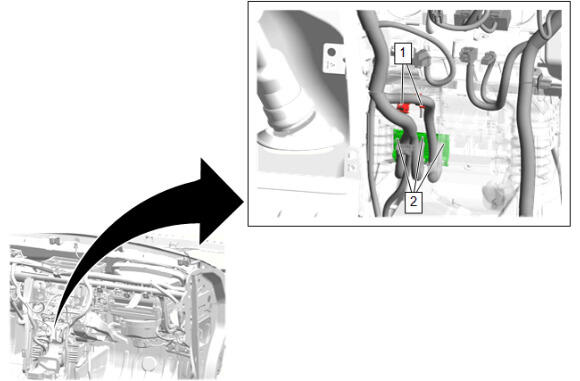

  16. GM5932263Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors. (2)

  17. Wiring Harness Retainer (1) - Install [2x]

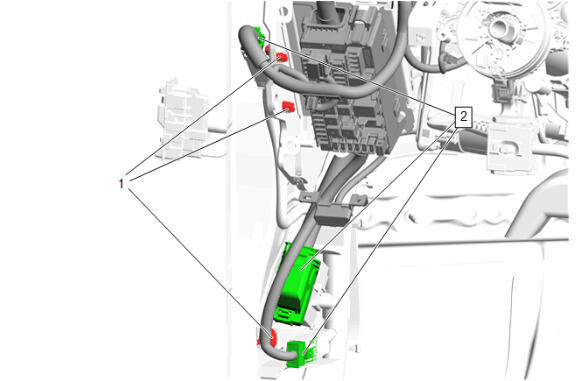

  18. GM5932262Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Install [3x]

  19. Connect the electrical connectors. (2)
  20. GM5921868Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Side Door Sill Garnish Molding - Left Side and Right Side (2) - Install [2x]

  21. Front Side Door Sill Trim Plate Clip - Left Side and Right Side (1) - Install [2x]

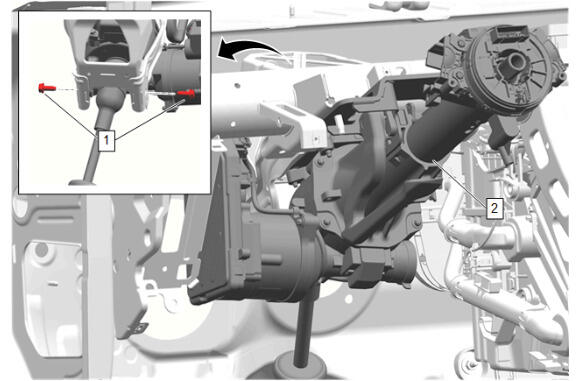

  22. GM6200072Courtesy of GENERAL MOTORS COMPANY

    Steering Column Assembly (2) - Install

  23. Steering Column Lower Support Bracket Bolt (1) - Install and hand tighten [2x]

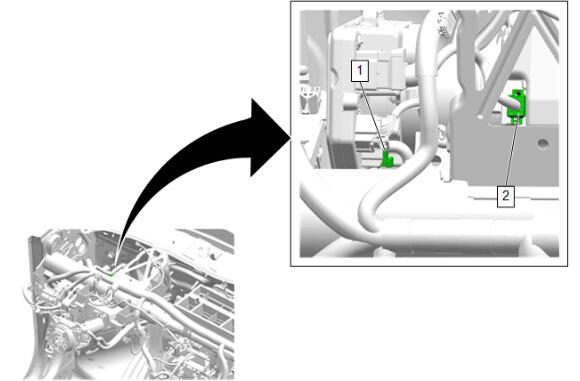

  24. GM6200053Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (1)

  25. {If equipped} Connect the electrical connector. (2)

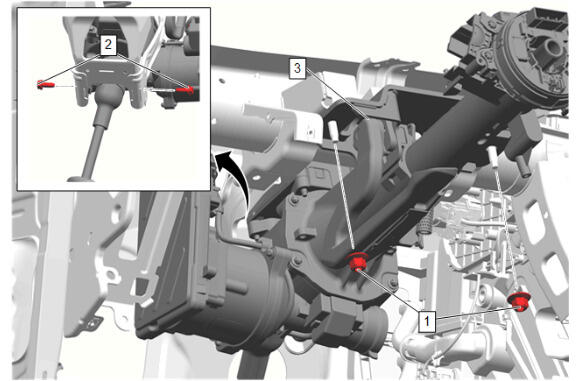

  26. GM5932261Courtesy of GENERAL MOTORS COMPANY

    Swing up the steering column (3) to the correct position.

  27. Steering Column Nut (1) - Install and tighten [2x] - Fastener Specifications
  28. Steering Column Lower Support Bracket Bolt (2) - Tighten [2x] - Fastener Specifications

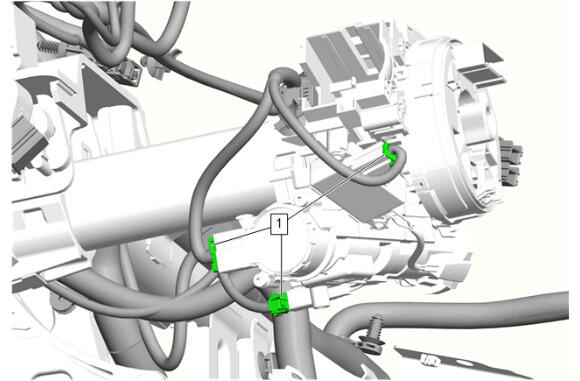

  29. GM6175153Courtesy of GENERAL MOTORS COMPANY

    {Without BTM} Connect the electrical connectors. (1) [3x]

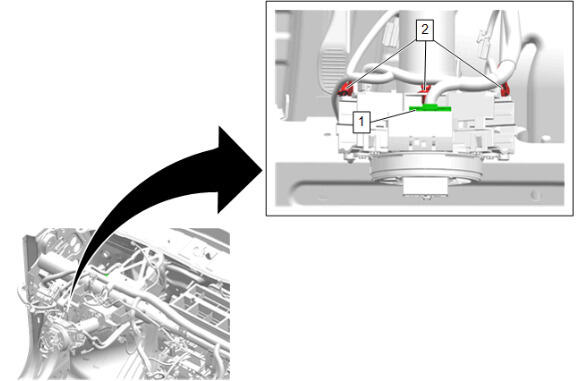

  30. GM5932260Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (1)

  31. Wiring Harness Retainer (2) - Install [3x]

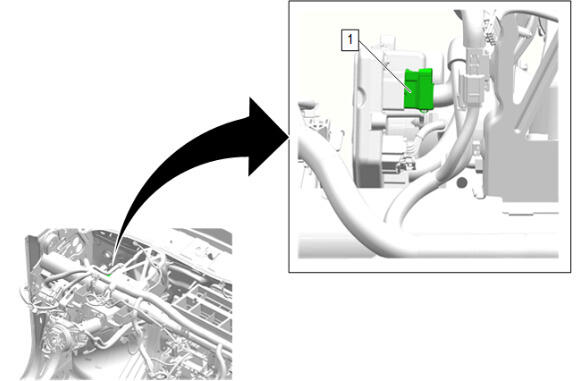

  32. GM6200052Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (1)

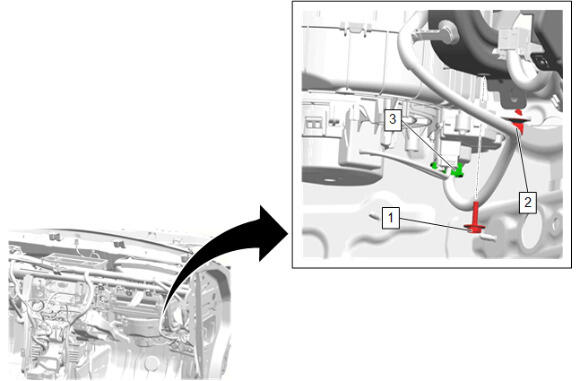

  33. GM5932258Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Module Bolt (1) - Install and tighten - Fastener Specifications

  34. Wiring Harness Retainer (2) - Install
  35. Connect the electrical connector. (3)

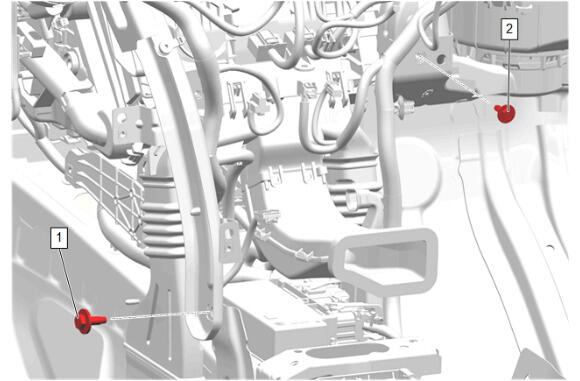

  36. GM5932257Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) @ Instrument Panel Tie Bar Brace - Install and tighten - Fastener Specifications

  37. Heater and Air Conditioning Evaporator and Blower Module Bolt (2) - Install and tighten - Fastener Specifications
  38. GM5925687Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side (2) - Install

  39. Front Floor Console Rear Air Duct Retainer (1) - Install

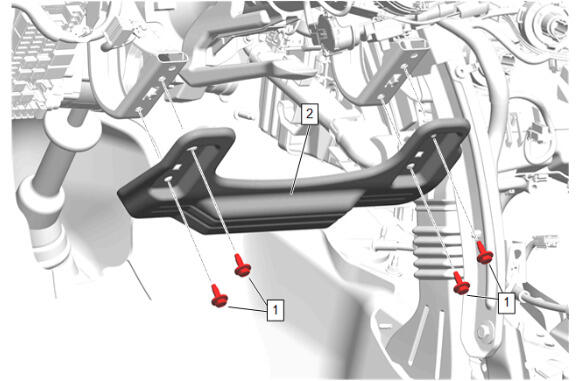

  40. GM6175152Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Deflector (2) - Install

  41. Instrument Panel Knee Bolster Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications

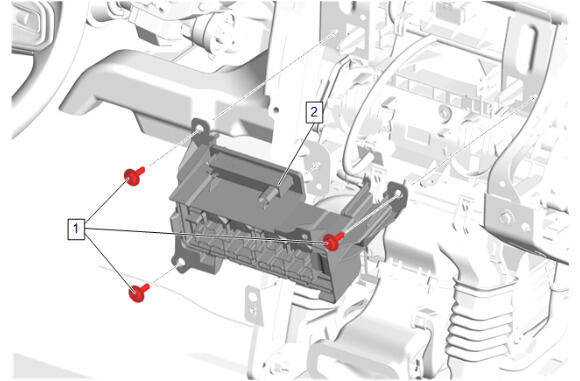

  42. GM5932248Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Remote Control Bracket (2) - Install

  43. Connect the electrical connectors.
  44. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) - Install and tighten [3x] - Fastener Specifications

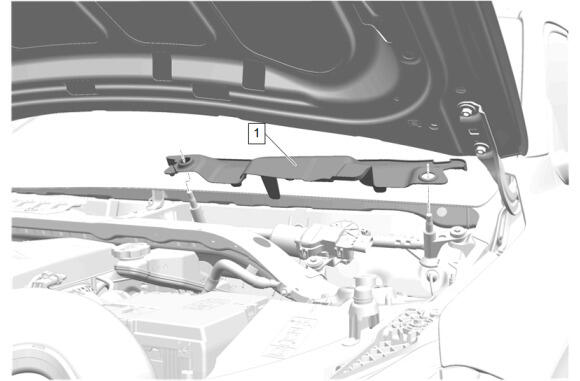

  45. GM5924220Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper System Module Shield (1) - Install

  46. GM5924219Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel (2) - Install

    1. Install the air inlet grille panel (2) between both hood hinges.
    2. Connect the windshield washer nozzle hose to the windshield washer pump hose.
    3. Air Inlet Grille Panel Retainer (1) - Install [8x]
  47. GM5924228Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Air Inlet Grille Panel Extension - Left Side and Right Side (1) - Install [2x]

    1. Install the air inlet grille panel extension (1).
    2. Remove the masking tape from the top edge of the service part.
    3. Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
  48. GM5922821Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Fender Rear Air Inlet Seal - Left Side and Right Side (2) - Install [2x]

    1. Front Fender Rear Air Inlet Seal (2) - Install [2x]
    2. Front Fender Rear Air Inlet Seal Retainer (1) - Install [2x]
  49. GM5922853Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Windshield Wiper Arm - Left Side and Right Side (3) - Install [2x]

    1. Clean the windshield wiper transmission pivot shaft splines with a soft wire brush before installing the windshield wiper arm (3).
    2. Position the windshield wiper arm (3) on the windshield wiper transmission pivot shaft.
    3. Windshield Wiper Arm Nut (2) - Install and tighten [2x] - Fastener Specifications
    4. Windshield Wiper Arm Finish Cap (1) - Install
  50. GM5922860Courtesy of GENERAL MOTORS COMPANY

    If required, realign the windshield wipers to their respective alignment circles (1) on the windshield.

    1. Lubricate the windshield with clean washer fluid.
    2. Run the windshield wipers for two complete cycles then turn off the windshield wipers.
    3. Ensure the windshield wipers are in the full park position.
    4. Inspect the windshield wipers for proper position to the alignment circles (1) on the windshield.
  51. GM5932217Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Assembly (1) - Install - Instrument Panel Removal and Installation (UDC) , or Instrument Panel Removal and Installation (URO)

  52. GM5220211Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    With the aid of an assistant, install the front side door (3).

  53. Align the door hinges with the markings made with the grease pencil.
  54. Front Side Door Hinge Bolt - Door Side - Left Side and Right Side (2) - Install and tighten [8x] - Fastener Specifications
  55. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers (except US, Canada) , or Adhesives, Fluids, Lubricants, and Sealers (US, Canada)
  56. Front Side Door Check Link Bolt - Left Side and Right Side (1) - Install and tighten [2x] - Fastener Specifications
  57. GM5925258Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Connect the front side door wiring harness (1) electrical connectors.

  58. Inspect the door for proper operation and alignment.
  59. If necessary, adjust the front side door. Front Side Door Adjustment
  60. Enable the SIR System. SIR Disabling and Enabling
