Installation Procedure

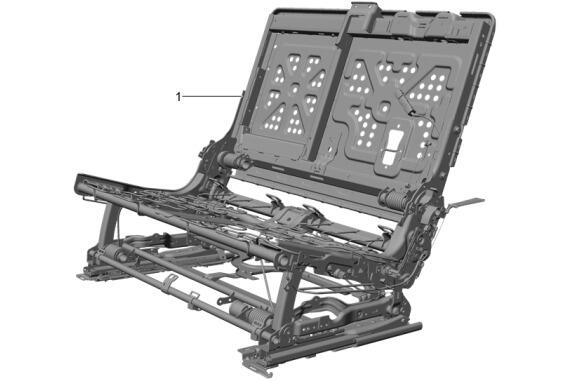

Rear Seat Frame (1) - Install

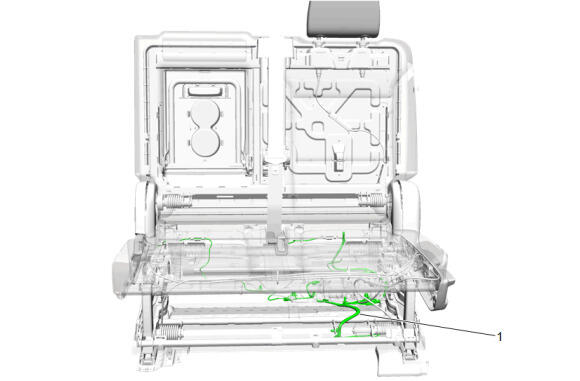

Rear Seat Wiring Harness (1) - Install
- Connect the electrical connectors and install the wiring harness retainers as necessary.

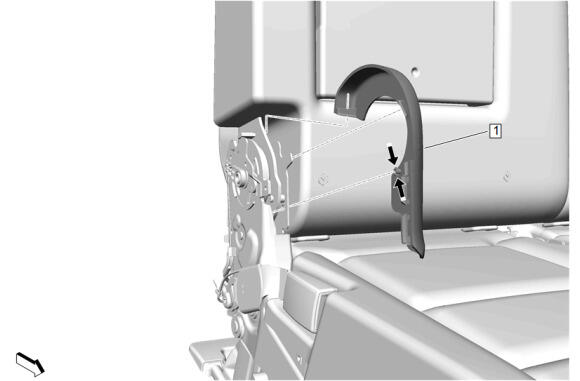

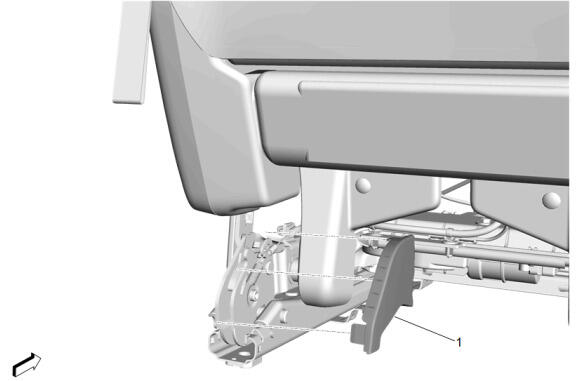

Rear Seat Hinge Finish Cover-Inboard (1) - Install
Rear Seat Hinge Finish Cover-Outboard (1) - Install

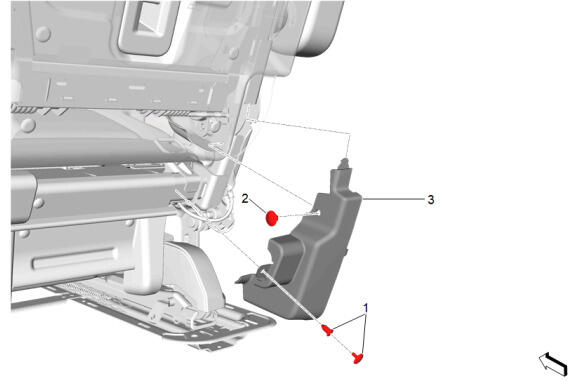

Rear Seat Recliner Inner Finish Cover (3) - Install
- Rear Seat Back Cover Retainer (2) - Install
- Rear Seat Riser Finish Cover Retainer (1) - Install
Rear Seat Recliner Inner Finish Cover (3) - Install
- Rear Seat Back Cover Retainer (2) - Install
- Rear Seat Riser Finish Cover Retainer (1) - Install

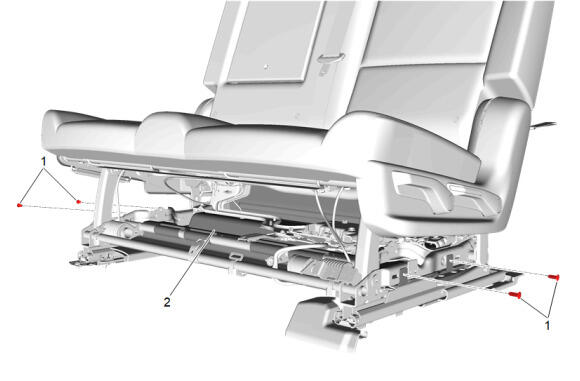

Rear Seat Frame Rear Finish Cover (2) - Install [2x]
Position the seat as necessary to access the seat bolts.

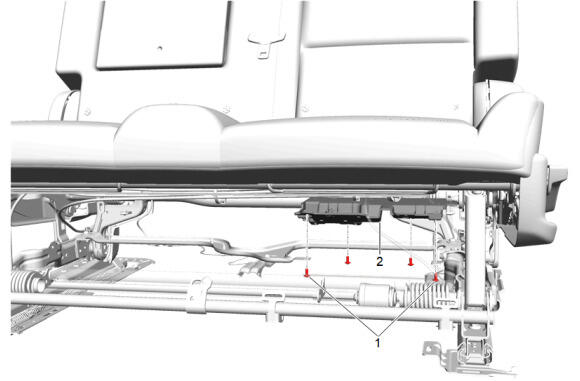

- Rear Seat Heater Control Module Bracket (2) - Install
- Front Seat Bolt (1) - Install and tighten [4x] - Fastener Specifications
- Position the wiring harness and connect the harness retainers.

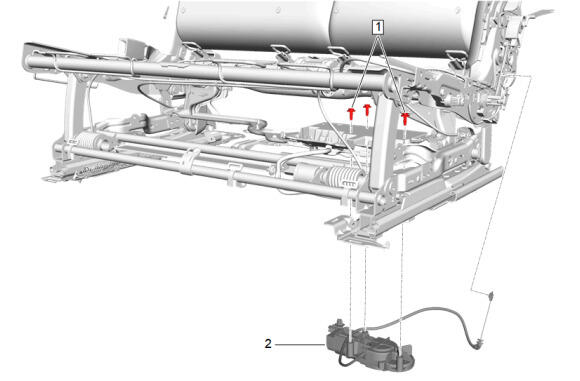

Folding Rear Seat Back Actuator (2) - Install
- Rear Seat Riser Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Connect the electrical connector.

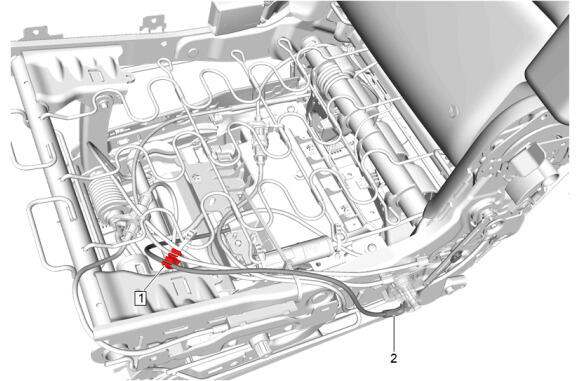

Position the rear seat back actuator cable (2) to the original location.
- Connect the rear seat back actuator cable end to the rear seat frame.
- Secure the folding rear seat back actuator cable (2) into the cable retainer (1).
Place the rear seat in the fold and tumble position.

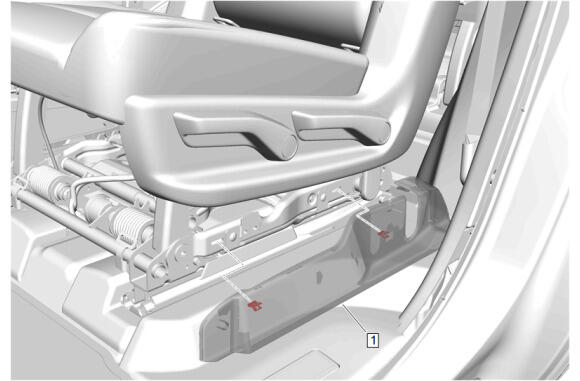

- Rear Seat Track Finish Cover (2) - Install
- Front Seat Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Position the wiring harness and connect the harness retainers.

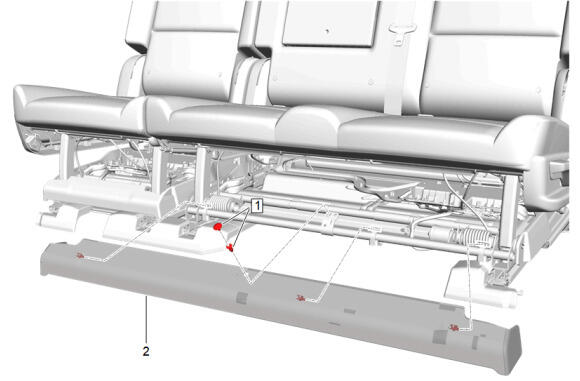

Rear Seat Cushion Trim Panel (2) - Install
- Rear Seat Riser Finish Cover Retainer (1) - Install [2x]
Return the rear seat to the original position.
- Rear Seat Back Opening Finish Cover Retainer (1) - Install [4x]
- Secure the J-channel retainers on the rear seat cushion trim panel (2).

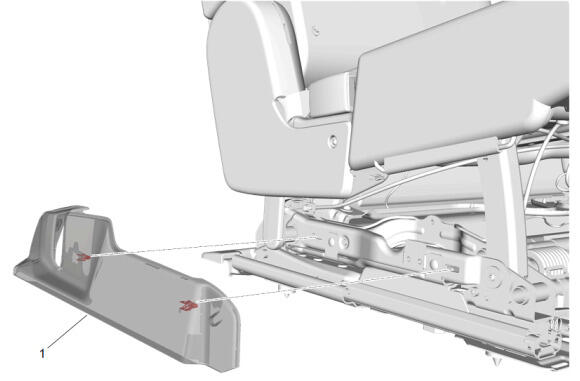

Rear Seat Latch Finish Cover (1) - Install [2x]
Rear Seat Riser Inner Finish Cover-Inboard (1) - Install
Rear Seat Riser Inner Finish Cover-Outboard (1) - Install
- NOTE:
Left side shown, right side similar.

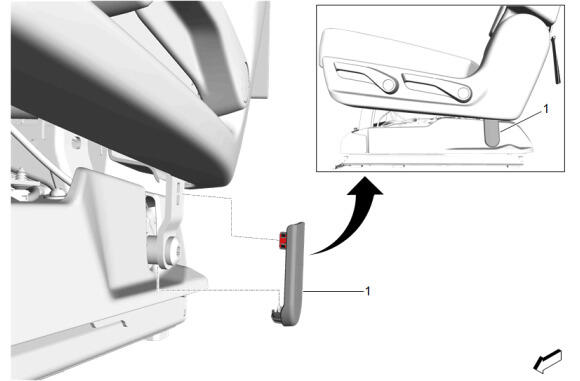

Rear Seat Riser Finish Cover (1) - Install [2x]
Rear Seat Riser Finish Cover (2) - Install
- Rear Seat Riser Finish Cover Retainer (1) - Install
{If equipped} Connect and position the wiring harness.
- Rear Seat Belt Buckle (1) - Install

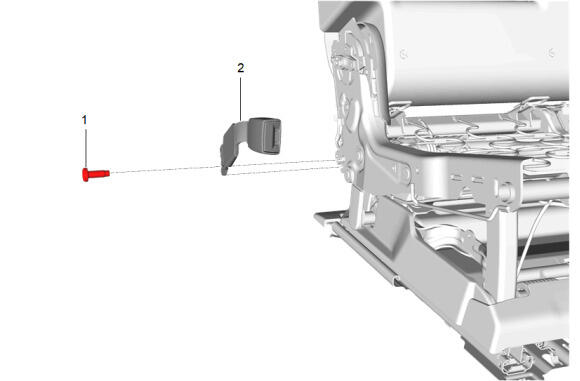

Rear Seat Belt Buckle (2) - Install
- Rear Seat Belt Buckle Bolt (1) - Install and tighten - Fastener Specifications
- {If equipped} Connect and position the wiring harness.

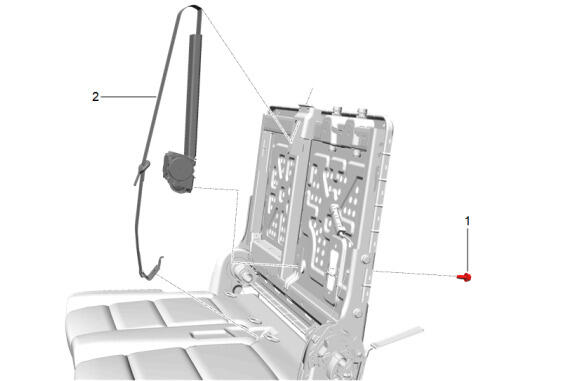

Rear Seat Center Belt Retractor (2) - Install
- Feed the rear seat center belt through the rear seat frame.
- Rear Center Seat Belt Buckle Bolt (1) - Install and tighten - Fastener Specifications

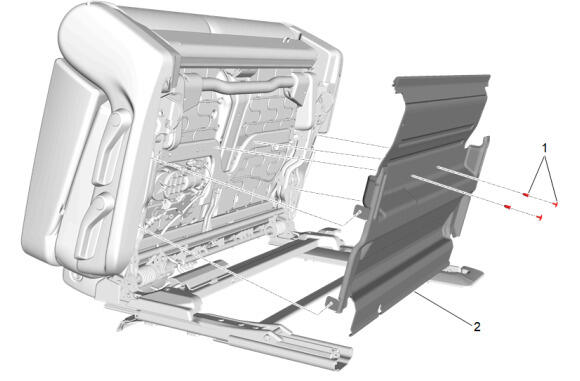

Rear Seat Back Panel (2) - Install
- Rear Seat Back Cover Retainer (1) - Install [12x]
Feed the rear seat center belt through the rear seat belt guide trim cover (2).
- Rear Seat Belt Guide Trim Cover (2) - Install
- Rear Seat Back Opening Finish Cover Retainer (1) - Install [2x]

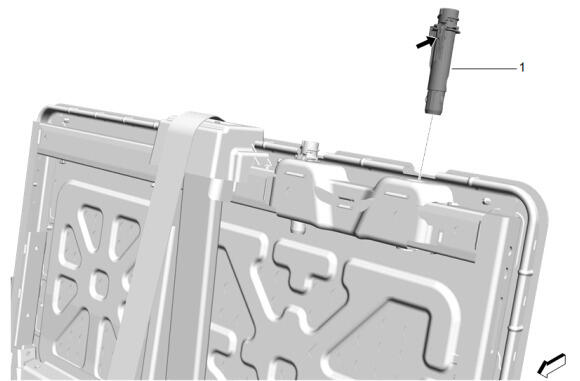

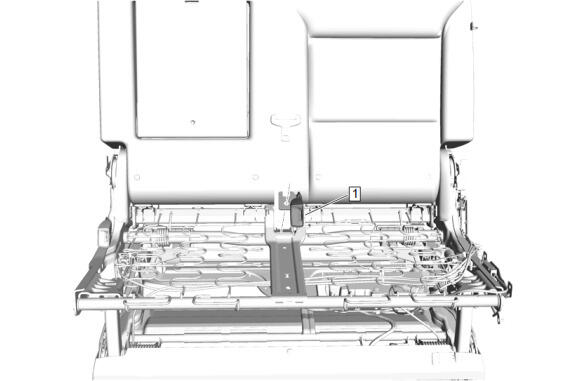

Rear Seat Head Restraint Guide (1) - Install [2x]
Rear Seat Back Cover and Pad (1) - Install - Rear Seat Back Cover and Pad Removal and Installation (Bucket) , or Rear Seat Back Cover and Pad Removal and Installation (40 Percent) , or Rear Seat Back Cover and Pad Removal and Installation (60 Percent)
Rear Seat Cushion Cover and Pad (1) - Remove - Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) , or Rear Seat Cushion Cover and Pad Removal and Installation (40 Percent) , or Rear Seat Cushion Cover and Pad Removal and Installation (60 Percent)

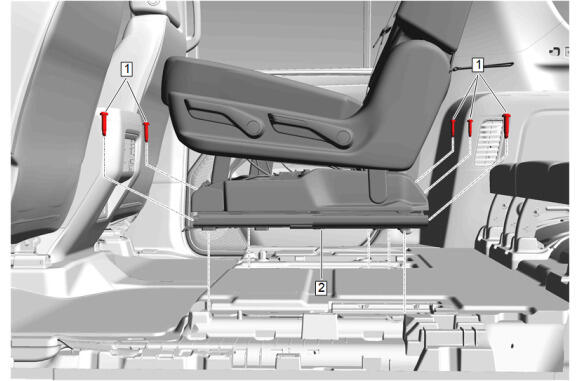

Rear Seat (2) - Install - Rear Seat Removal and Installation (Bucket) , or Rear Seat Removal and Installation (40 Percent) , or Rear Seat Removal and Installation (60 Percent)
Refer to Fastener Caution .
