Fastener Specifications
NOTE:
Callouts items in the following chart represent components shown in graphic above.

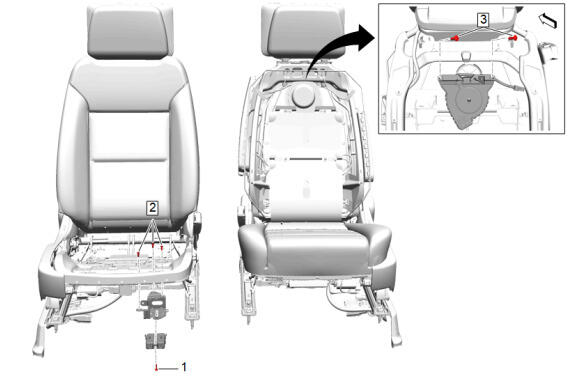

Front Seat Heating and Cooling
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Heater Control Module Bolt | - | - | 2.5 N.m (22 lb in) | Front Seat Heater Vent Control Module Replacement |
| 2 | Front Seat Heater Control Module Bracket Bolt [3x] | - | - | 4.7 N.m (42 lb in) | Front Seat Heater Control Module Bracket Replacement |
| 3 | Front Seat Vent Fan Control Module Bolt [2x] | - | - | 4.7 N.m (42 lb in) | Front Seat Back Ventilation Blower Replacement |
NOTE:
Callouts items in the following chart represent components shown in graphic above.

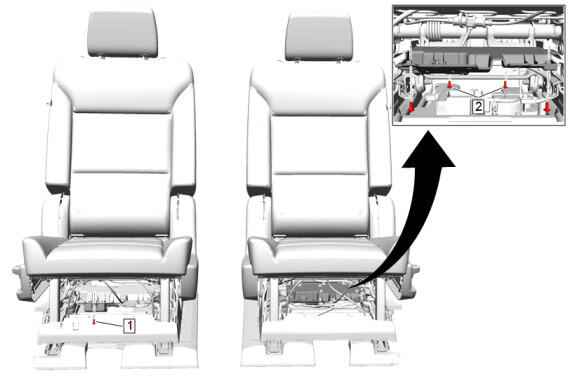

Rear Seat Heating and Cooling
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Bolt@Rear Seat Heater Vent Control Module | - | - | 3.5 N.m (31 lb in) | Rear Seat Heater Vent Control Module Replacement |
| 2 | Front Seat Bolt@Rear Seat Heater Control Module Bracket [4x] | - | - | 3.5 N.m (31 lb in) | Rear Seat Heater Control Module Bracket Replacement - Left Side |
| Rear Seat Heater Control Module Bracket Replacement - Right Side |
