Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

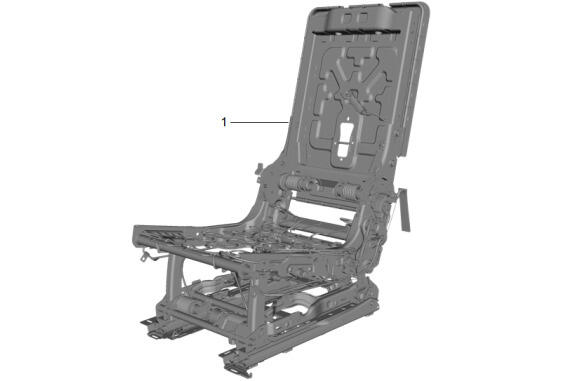

Rear Seat Frame (1) - Install
Courtesy of GENERAL MOTORS COMPANY

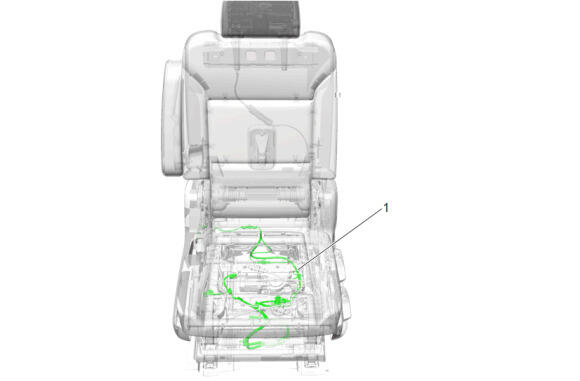

Rear Seat Wiring Harness (1) - Install
Connect the electrical connectors and install the wiring harness retainers as necessary.
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Hinge Finish Cover-Inboard (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Hinge Finish Cover-Outboard (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Recliner Inner Finish Cover (3) - Install
Rear Seat Back Cover Retainer (2) - Install
Rear Seat Riser Finish Cover Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Recliner Inner Finish Cover (3) - Install
Rear Seat Back Cover Retainer (2) - Install
Rear Seat Riser Finish Cover Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Frame Rear Finish Cover (2) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

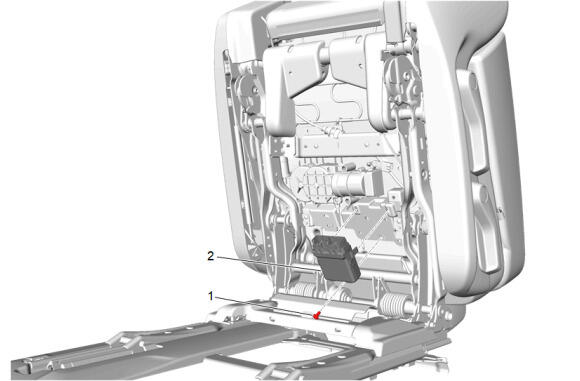

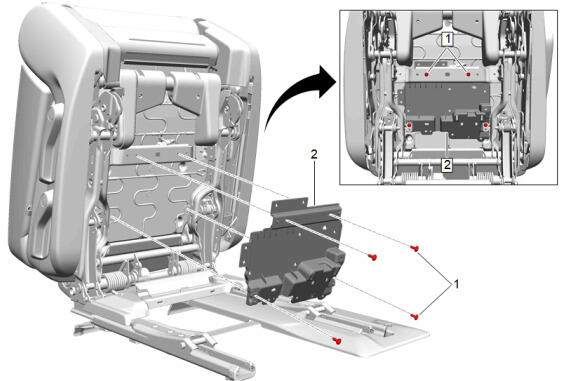

Rear Seat Heater Control Module Bracket (2) - Install

CAUTION:

Refer to Fastener Caution .

Front Seat Bolt (1) - Install and tighten [4x] - Fastener Specifications
Position the wiring harness and connect the harness retainers.
Courtesy of GENERAL MOTORS COMPANY

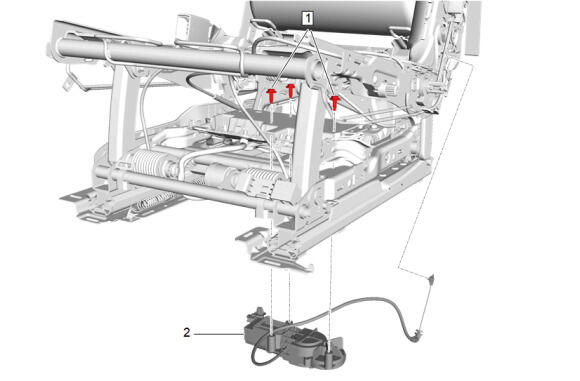

Folding Rear Seat Back Actuator (2) - Install
Rear Seat Riser Bolt (1) - Install and tighten [3x] - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Position the rear seat back actuator cable (2) to the original location.
Connect the rear seat back actuator cable end to the rear seat frame.
Secure the folding rear seat back actuator cable (2) into the cable retainer (1).
Courtesy of GENERAL MOTORS COMPANY

Place the rear seat in the fold and tumble position.

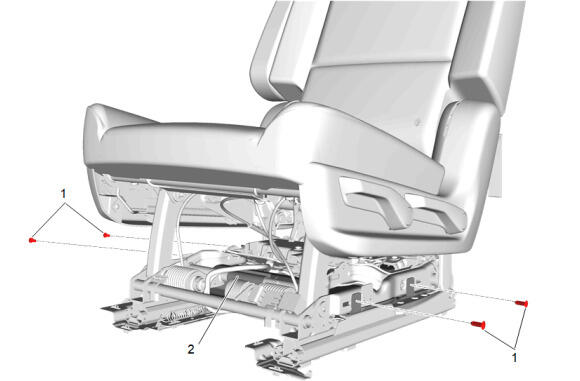

{If equipped} Rear Seat Heater Vent Control Module (2) - Install
{If equipped} Front Seat Bolt (1) - Install and tighten - Fastener Specifications
{If equipped} Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Track Finish Cover (2) - Install
Front Seat Bolt (2) - Install and tighten [2x] - Fastener Specifications
Position the wiring harness and connect the harness retainers.
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Cushion Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Return the rear seat to the original position.
Rear Seat Back Opening Finish Cover Retainer (1) - Install [4x]
Secure the J-channel retainers on the rear seat cushion trim panel (2).
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Latch Finish Cover (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

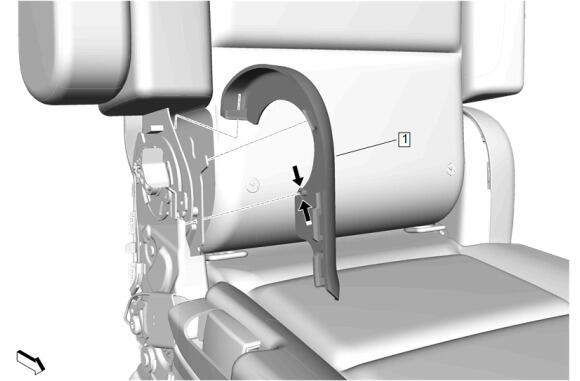

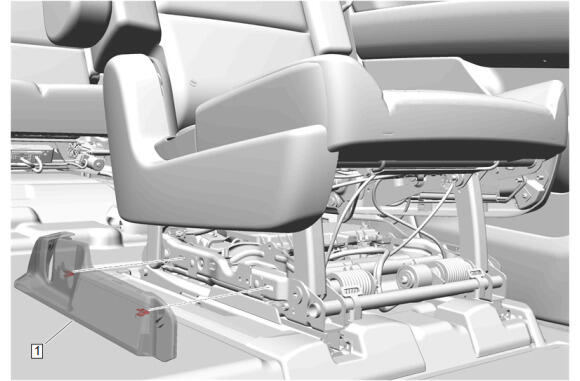

Rear Seat Riser Inner Finish Cover-Inboard (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Riser Inner Finish Cover-Outboard (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Seat Riser Finish Cover (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Riser Finish Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

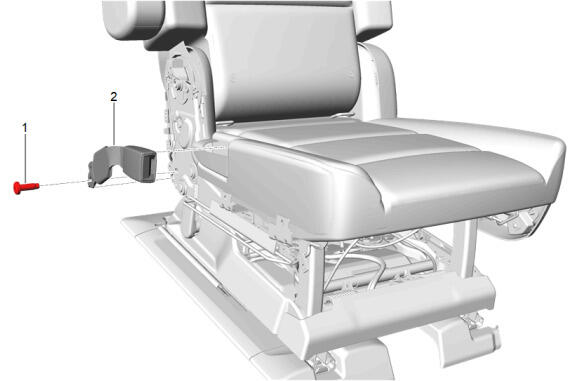

Rear Seat Belt Buckle (2) - Install
Rear Seat Belt Buckle Bolt (1) - Install and tighten - Fastener Specifications
{If equipped} Connect and position the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

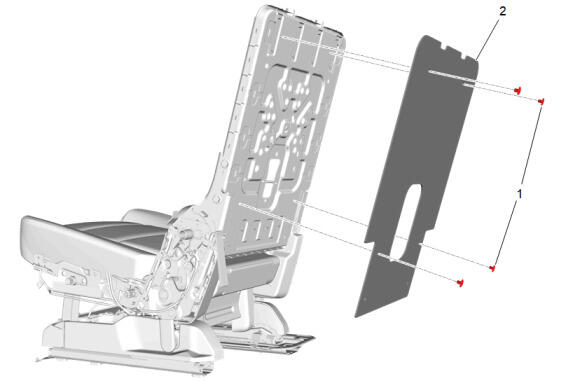

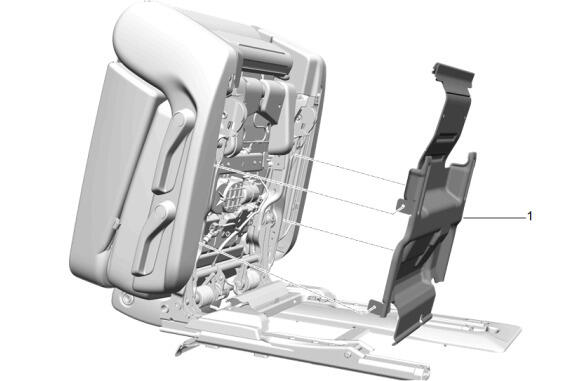

Rear Seat Back Panel (2) - Install
Rear Seat Back Cover Retainer (1) - Install [4x]
Courtesy of GENERAL MOTORS COMPANY

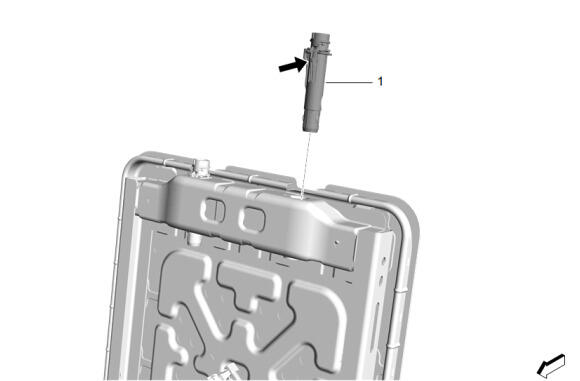

Rear Seat Head Restraint Guide (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

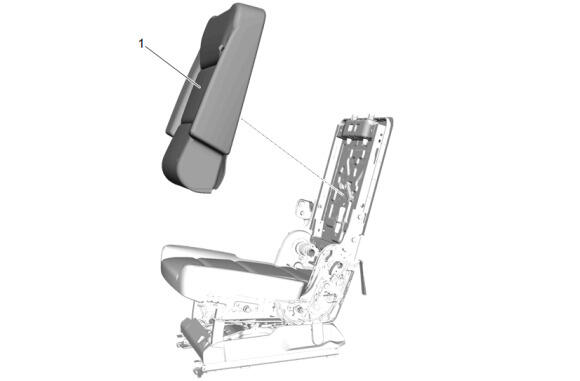

Rear Seat Back Cover and Pad (1) - Install - Rear Seat Back Cover and Pad Removal and Installation (Bucket) , or Rear Seat Back Cover and Pad Removal and Installation (40 Percent) , or Rear Seat Back Cover and Pad Removal and Installation (60 Percent)
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Cushion Cover and Pad (1) Remove - Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) , or Rear Seat Cushion Cover and Pad Removal and Installation (40 Percent) , or Rear Seat Cushion Cover and Pad Removal and Installation (60 Percent)
Courtesy of GENERAL MOTORS COMPANY

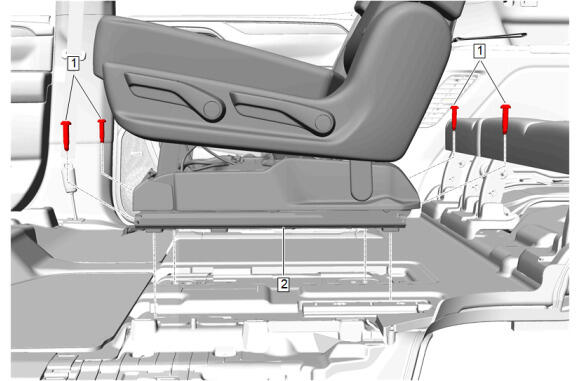

Rear Seat (2) - Install - Rear Seat Removal and Installation (Bucket) , or Rear Seat Removal and Installation (40 Percent) , or Rear Seat Removal and Installation (60 Percent)
