Installation Procedure

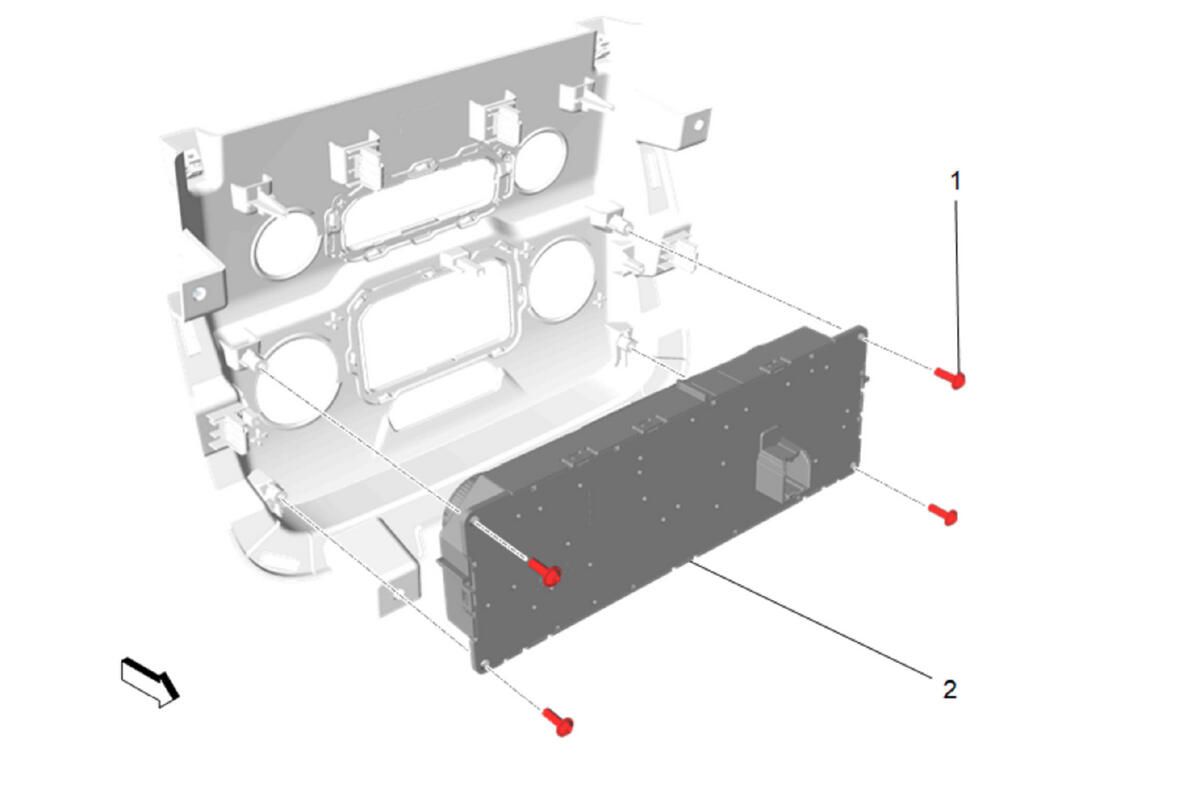

  1. GM6281924Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning User Interface Control (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Heater and Air Conditioning User Interface Control Bolt (1) - Install and tighten [4x] - Fastener Specifications

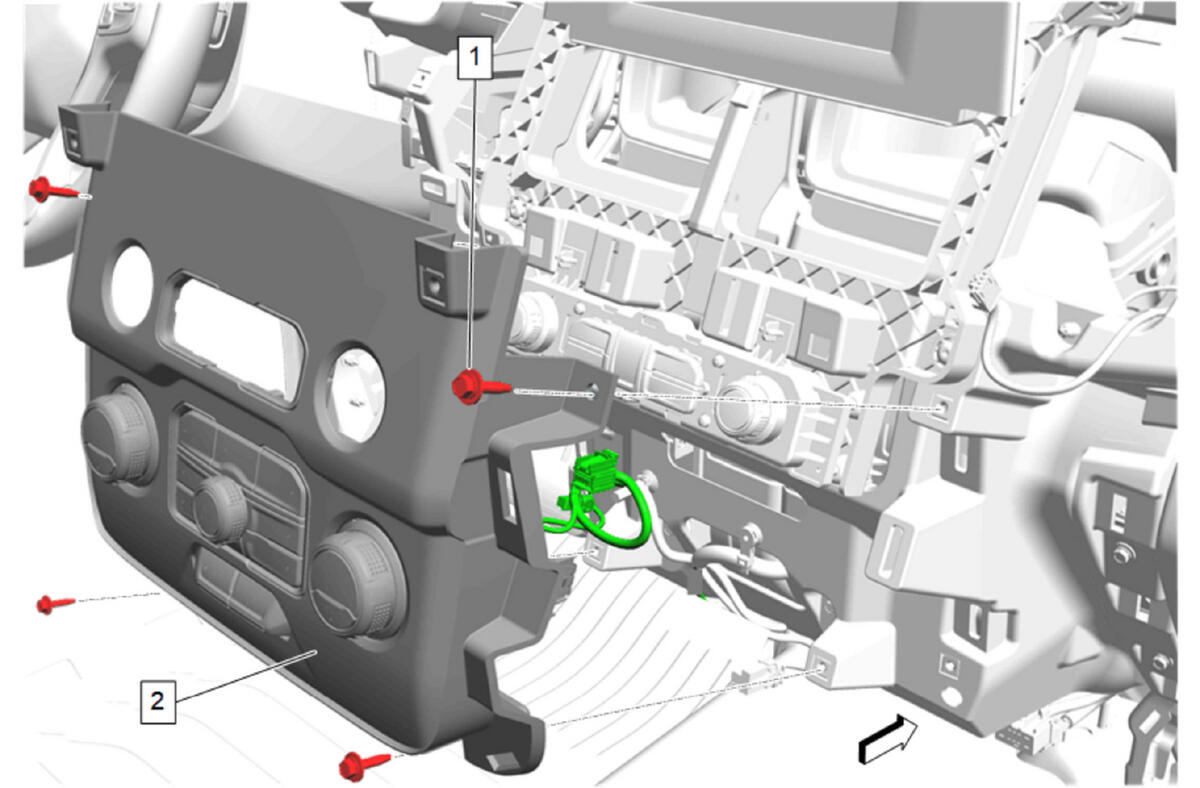

  3. GM6281912Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  4. Instrument Panel Accessory Bezel (2) - Install
  5. Instrument Panel Accessory Bezel Bolt (1) - Install and tighten [4x] - Fastener Specifications
  6. GM5539601Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  7. Instrument Panel Lower Trim Panel (3) - Install
  8. Instrument Panel Lower Trim Panel Bolt (2) - Install and tighten [2x] - Fastener Specifications
  9. Instrument Panel Lower Trim Panel Bolt (1) - Tighten [2x] - Fastener Specifications
  10. GM5520781Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  11. Instrument Panel Transmission Shift Opening Cover (2) - Install
  12. Instrument Panel Center Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications
  13. GM5520388Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  14. Instrument Panel Trim Pad (2) - Install
  15. Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications
  16. GM5519541Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (1) - Install

  17. GM5519543Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Install

  18. GM5518395Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  19. GM5517090Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

    Instrument Panel Knee Bolster (1) - Install

  20. GM5517088Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Bolt (2) - Install and tighten [2x] - Fastener Specifications

  21. Hood Primary Latch Release Cable Handle (1) - Install
  22. GM5517140Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  23. Instrument Panel Switch Trim Plate (2) - Install
  24. Instrument Panel Switch Trim Plate Bolt (1) - Install and tighten - Fastener Specifications
  25. GM5517141Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  26. Instrument Panel Trim Pad (2) - Install
  27. Instrument Panel Trim Pad Bolt (1) - Install and tighten [2x] - Fastener Specifications
  28. GM5517142Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Install

  29. GM5517144Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  30. GM5515686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (1) - Install

  31. GM5539603Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel (2) - Install

  32. Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten - Fastener Specifications
