Fastener Specifications
NOTE:
Callouts items in the following chart represent components shown in graphic above.
Air Inlet Valve Actuator
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning Evaporator and Blower Module Bolt [2x] | - | - | 1.2 N.m (11 lb in) | Air Inlet Valve Actuator Replacement |
NOTE:
Callouts items in the following chart represent components shown in graphic above.
Heater and Air Conditioning Auxiliary Control without 9C1
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Auxiliary Heater and Air Conditioning Control Bolt [4x] | - | - | 0.8 N.m (7 lb in) | Heater and Air Conditioning Auxiliary Control Replacement (- 9C1) |
NOTE:
Callouts items in the following chart represent components shown in graphic above.

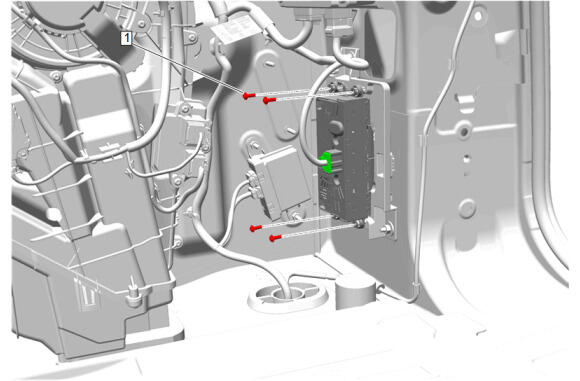

Heater and Air Conditioning Auxiliary Control with 9C1
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning Auxiliary Control Bolt [4x] | - | - | 0.8 N.m (7 lb in) | Heater and Air Conditioning Auxiliary Control Replacement (9C1) |
NOTE:
Callouts items in the following chart represent components shown in graphic above.
Heater and Air Conditioning User Interface Control
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning User Interface Control Bolt [4x] | - | - | 1.5 N.m (13 lb in) | Heater and Air Conditioning User Interface Control Replacement (DCH) , or Heater and Air Conditioning User Interface Control Replacement (D07) , or Heater and Air Conditioning User Interface Control Replacement (- DCH/D07) |
NOTE:
Callouts items in the following chart represent components shown in graphic above.
Mode Control Cam
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning Evaporator and Blower Module Bolt [3x] | - | - | 1.2 N.m (11 lb in) | Mode Control Cam Replacement |
NOTE:
Callouts items in the following chart represent components shown in graphic above.
Mode Valve Actuator and Temperature Valve Actuator - Left side
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning Evaporator and Blower Module Bolt [2x] | - | - | 1.2 N.m (11 lb in) | Mode Valve Actuator Replacement |
| 2 | Heater and Air Conditioning Evaporator and Blower Module Bolt [2x] | - | - | 1.2 N.m (11 lb in) | Temperature Valve Actuator Replacement - Left Side |
NOTE:
Callouts items in the following chart represent components shown in graphic above.
Rear Programmable Mode Valve Actuator (C69)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 2 | Auxiliary Air Conditioning Evaporator and Blower Module Bolt [2x] | - | - | 1.2 N.m (11 lb in) | Rear Programmable Mode Valve Actuator Replacement (C69 - 9C1) , or Rear Programmable Mode Valve Actuator Replacement (C69 & 9C1) |
NOTE:
Callouts items in the following chart represent components shown in graphic above.
Rear Programmable Temperature Valve Actuator (C69)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Auxiliary Air Conditioning Evaporator and Blower Module Bolt [2x] | - | - | 1.2 N.m (11 lb in) | Rear Programmable Temperature Valve Actuator Replacement (C69 - 9C1) , or Rear Programmable Temperature Valve Actuator Replacement (C69 & 9C1) |
NOTE:
Callouts items in the following chart represent components shown in graphic above.
Temperature Valve Actuator Replacement - Right Side
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning Evaporator and Blower Module Bolt [2x] | - | - | 1.2 N.m (11 lb in) | Temperature Valve Actuator Replacement - Right Side |
