Installation Procedure

WARNING: This page is about a different variant/trim than selected.

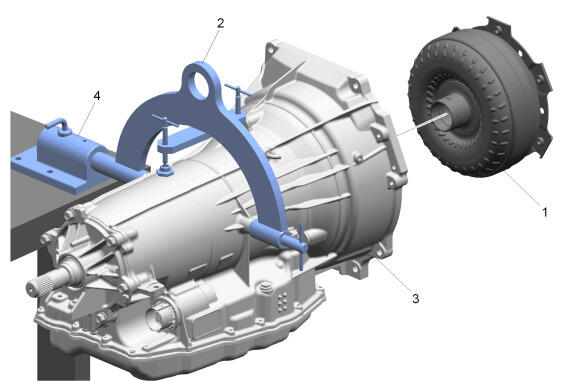

  1. GM5484282Courtesy of GENERAL MOTORS COMPANY

    Rotate the transmission so that the converter housing is up and secure with locking pin.

  2. Torque Converter (1) - Install
  3. After installing the torque converter (1), install a holding strap to secure the torque convertor (1) before rotating back to remove special tools.
  4. Support the transmission with an overhead hoist attached to DT-48989  Holding Fixture (2).
  5. Remove the DT-48989  Holding Fixture (2) with the automatic transmission case (3) from the DT-03289-20  Holding Fixture Base Assembly (4).
  6. Remove the DT-48989  Holding Fixture (2) from the automatic transmission case (3).
