Disassemble Procedure

WARNING: This page is about a different variant/trim than selected.

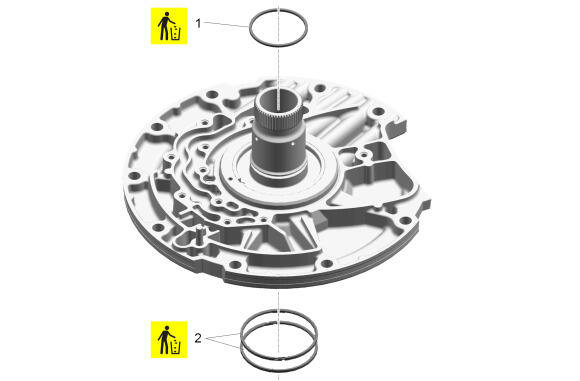

  1. GM3703570Courtesy of GENERAL MOTORS COMPANY

    Torque Converter Fluid Seal (1) - Remove and DISCARD

  2. 1-3-5-6-7 Clutch Fluid Seal Ring (2) - Remove and DISCARD [2x]
