Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

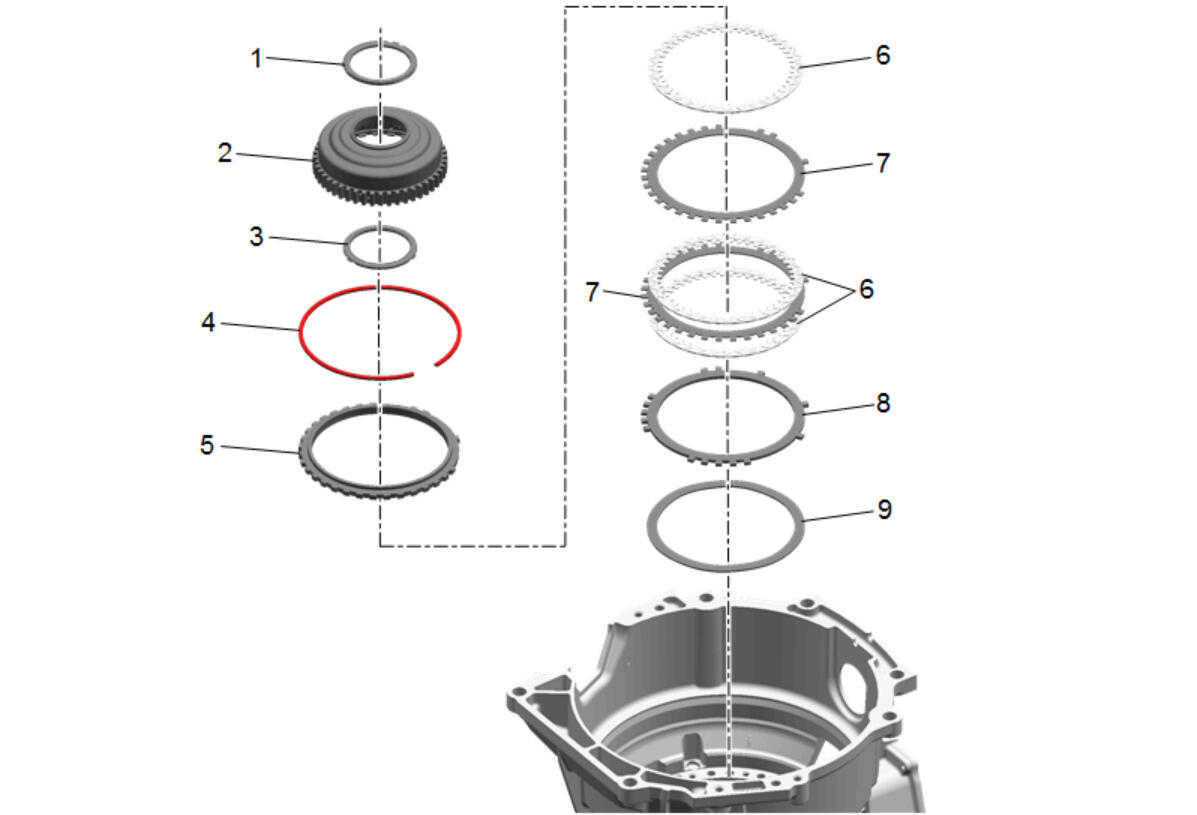

1-2-3-4-5-Reverse Clutch Hub Thrust Bearing (1) - Remove
Reaction Internal Gear and 1-2-3-4-5-Reverse Hub (2) - Remove
Reaction Carrier Thrust Bearing (3) - Remove
1-2-3-4-5-Reverse Clutch Backing Plate Retaining Ring (4) - Remove
1-2-3-4-5-Reverse Clutch Backing Plate (5) - Remove
1-2-3-4-5-Reverse Clutch Plate (6) - Remove [3x]
1-2-3-4-5-Reverse Clutch Plate (7) - Remove [2x]
1-2-3-4-5-Reverse Clutch Apply Plate (8) - Remove
1-2-3-4-5-Reverse Clutch Plate (Waved) (9) - Remove
