Reaction Internal Gear and 1-2-3-4-5 Reverse Hub and 1-2-3-4-5 Reverse Clutch Plate Assembly Installation
WARNING: This page is about a different variant/trim than selected.

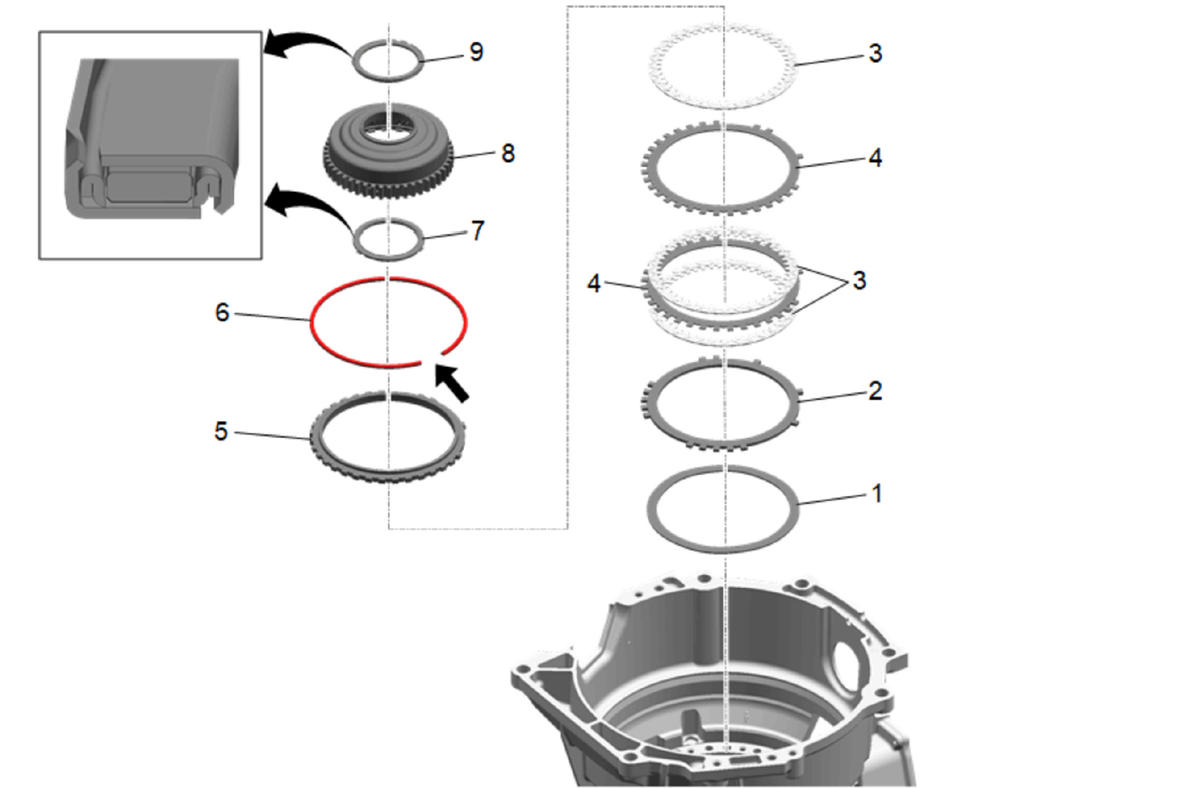

1-2-3-4-5-Reverse Clutch Plate (Waved) (1) - Install
- 1-2-3-4-5-Reverse Clutch Apply Plate (2) - Install
- 1-2-3-4-5-Reverse Clutch Plate (3) - Install [3x]
- 1-2-3-4-5-Reverse Clutch Plate (4) - Install [2x]
- 1-2-3-4-5-Reverse Clutch Backing Plate (5) - Install
- Select the correct retaining ring. Refer to 1-2-3-4-5 Reverse Clutch Backing Plate Retaining Ring Measurement .
- 1-2-3-4-5-Reverse Clutch Backing Plate Retaining Ring (6) - Install
- Reaction Carrier Thrust Bearing (7) - Install
- Reaction Internal Gear and 1-2-3-4-5-Reverse Hub (8) - Install
- 1-2-3-4-5-Reverse Clutch Hub Thrust Bearing (9) - Install
NOTE:
The opening of the retaining ring should be in the 9 o'clock position as indicated by the arrow.
