Installation Procedure

WARNING: This page is about a different variant/trim than selected.

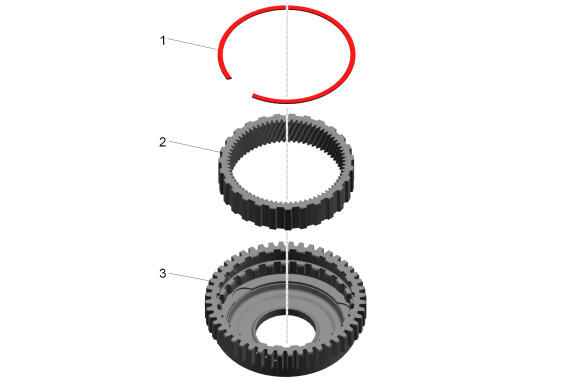

  1. GM3681866Courtesy of GENERAL MOTORS COMPANY

    Reaction Internal Gear (2) @Reaction Internal Gear and 1-2-3-4-5-Reverse Hub (3) - Install

  2. Reaction Internal Gear Retaining Ring (1) @Reaction Internal Gear and 1-2-3-4-5-Reverse Hub (3) - Install
