Installation Procedure

WARNING: This page is about a different variant/trim than selected.

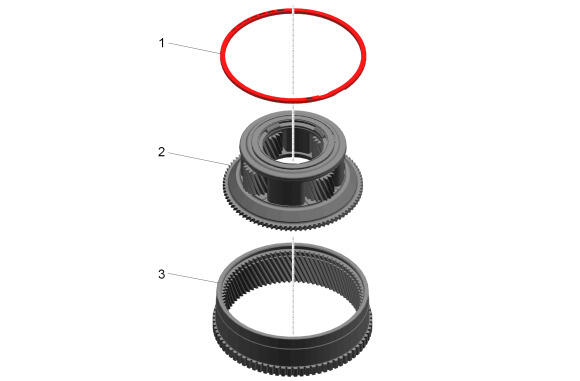

  1. GM3681862Courtesy of GENERAL MOTORS COMPANY

    Reaction Carrier (2) @Output Carrier Internal Gear (3) - Install

  2. Output Carrier Internal Gear Retaining Ring (1) @Output Carrier Internal Gear (3) - Install
