Removal Procedure

WARNING: This page is about a different variant/trim than selected.

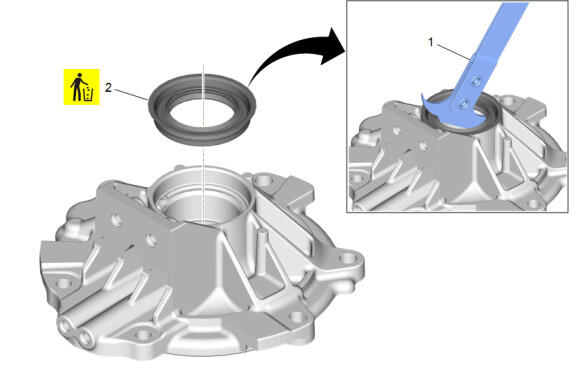

  1. GM4012784Courtesy of GENERAL MOTORS COMPANY

    Use DT-45000  Seal Remover (1) to remove seal.

  2. Propeller Shaft Transmission Flange Fluid Seal (2) - Remove and DISCARD
