Installation Procedure

WARNING: This page is about a different variant/trim than selected.

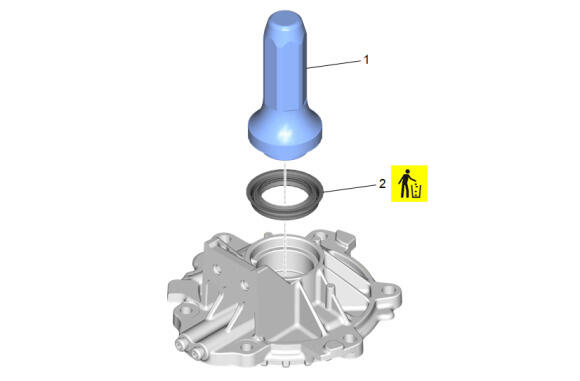

GM4041889Courtesy of GENERAL MOTORS COMPANY

Using DT-37212  Front Output Shaft Seal Installer (1), install the NEW propeller shaft transmission flange fluid seal (2).
