Assemble Procedure

WARNING: This page is about a different variant/trim than selected.

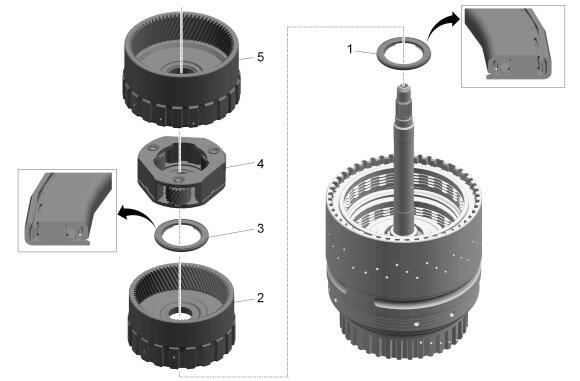

  1. GM3681805Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure proper orientation of bearing.

    4-5-6-7-8 Reverse Clutch and Direct Overdrive Internal Gear Hub Thrust Bearing (1) - Install

  2. Direct Overdrive Internal Gear (2) - Install
    3. NOTE:

    Ensure proper orientation of bearing.

  3. Direct Overdrive Carrier Thrust Bearing (3) - Install
  4. Direct Overdrive Carrier (4) - Install
  5. Input Internal Gear (5) - Install
