Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

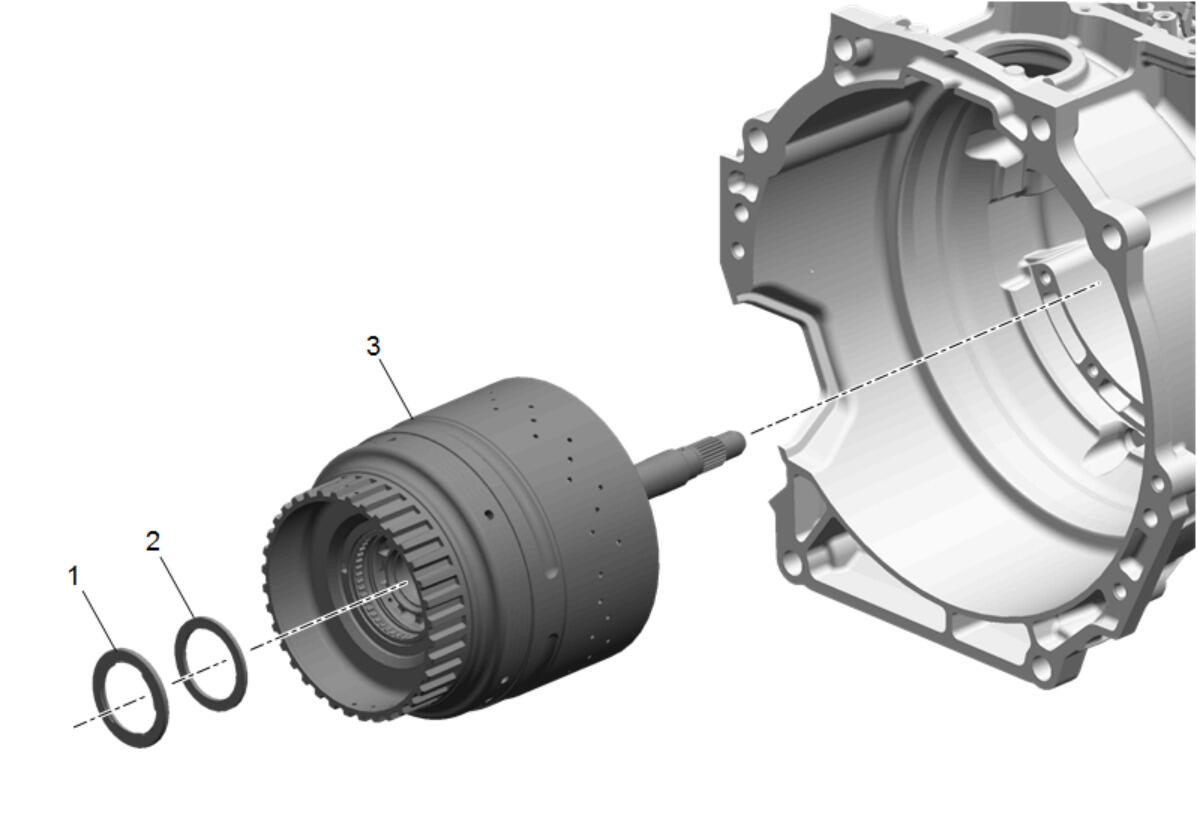

2-3-4-6-8 and 4-5-6-7-8-Reverse Clutch Thrust Bearing (1) - Remove
2-3-4-6-8 and 4-5-6-7-8-Reverse Clutch Thrust Bearing Washer (2) - Remove
Rotate the transmission horizontal to aid in removal of the 2-3-4-6-8 and 4-5-6-7-8 reverse clutch assembly.
2-3-4-6-8 and 4-5-6-7-8-Reverse Clutch (3) - Remove
