Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

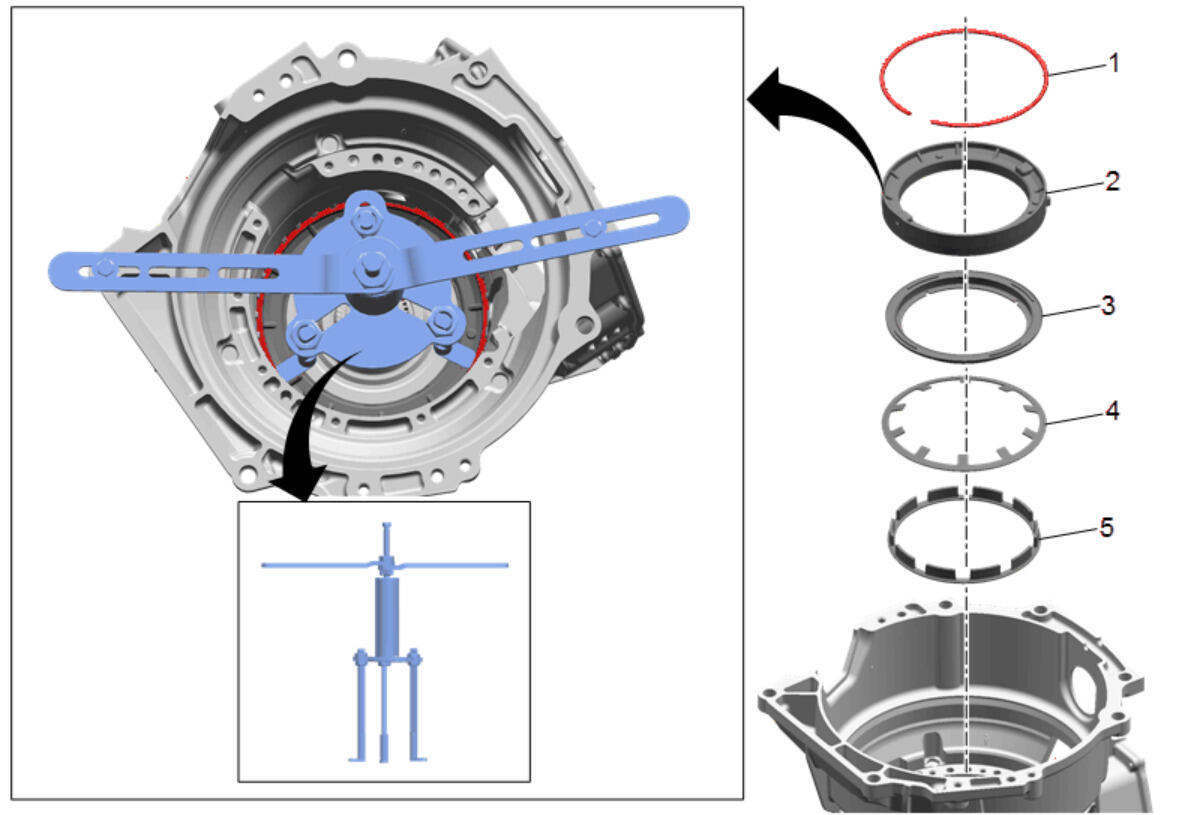

Assemble all the special tools as shown to remove the 1 - 2 - 7 - 8 - Reverse clutch piston housing retaining ring.
1-2-7-8-Reverse Clutch Piston Housing Retaining Ring (1) - Remove
1-2-7-8-Reverse Clutch Piston Housing (2) - Remove
1-2-7-8-Reverse Clutch Piston (3) - Remove
1-2-7-8-Reverse Clutch Return Spring (4) - Remove
1-2-7-8-Reverse Clutch Apply Ring (5) - Remove
