Single Use Fasteners and Components

WARNING: This page is about a different variant/trim than selected.

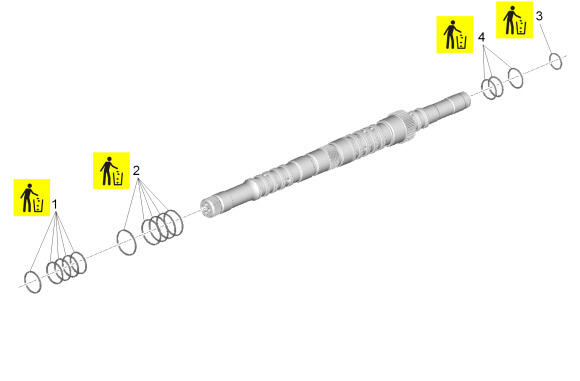

  1. GM4533668Courtesy of GENERAL MOTORS COMPANY

    Turbine Shaft Seal (1) - Remove and DISCARD [5x]

  2. Turbine Shaft Seal (2) - Remove and DISCARD [5x]
  3. Turbine Shaft Seal (3) - Remove and DISCARD
  4. Turbine Shaft Seal (4) - Remove and DISCARD [3x]
