Special Tools

WARNING: This page is about a different variant/trim than selected.

DT-51892  Press Tool

Equivalent regional tools: Special Tools

  1. GM5446090Courtesy of GENERAL MOTORS COMPANY

    4-5-6-7-8-9-10-Reverse Clutch Piston Seal- Outer (1) - Install NEW [2x]

  2. 4-5-6-7-8-9-10-Reverse Clutch Piston Seal- Inner (2) - Install NEW

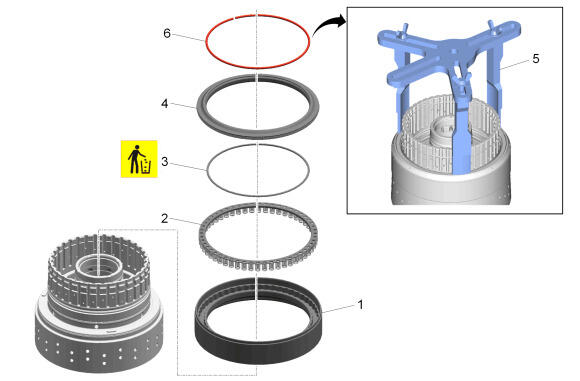

  3. GM5446284Courtesy of GENERAL MOTORS COMPANY

    4-5-6-7-8-9-10-Reverse Clutch Piston (1) - Install

  4. 4-5-6-7-8-9-10-Reverse Clutch Piston Return Spring (2) - Install
  5. 4-5-6-7-8-9-10-Reverse Clutch Piston Seal- Inner (3) - Install NEW
  6. 4-5-6-7-8-9-10-Reverse Clutch Piston Dam (4) - Install
  7. Using the DT-51892  press tool (5) and an arbor press, compress the piston just enough to install the 4-5-6-7-8-9-10-Reverse Clutch Piston Dam Retaining Ring (6).
  8. 4-5-6-7-8-9-10-Reverse Clutch Piston Dam Retaining Ring (6) - Install

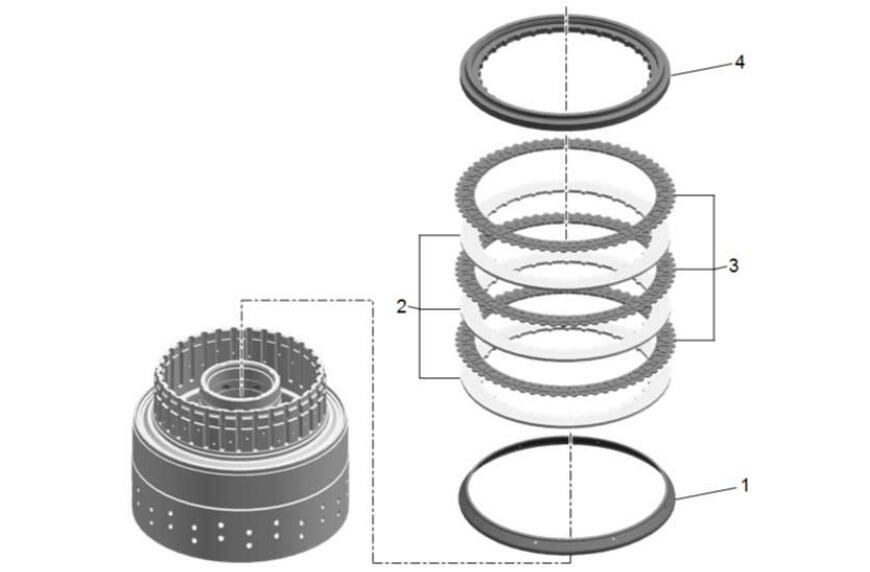

  9. GM5446288Courtesy of GENERAL MOTORS COMPANY

    4-5-6-7-8-9-10-Reverse Clutch Apply Ring (1) - Install

  10. 4-5-6-7-8-9-10-Reverse Steel Clutch Plate (2) - Install [3x]
  11. 4-5-6-7-8-9-10-Reverse Fiber Clutch Plate (3) - Install [3x]
  12. 4-5-6-7-8-9-10-Reverse Clutch Backing Plate (4) - Install

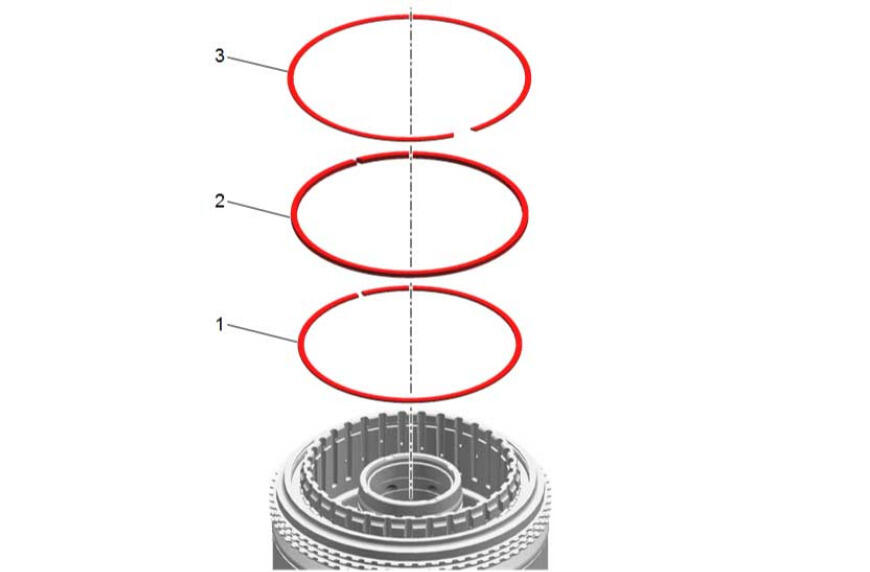

  13. GM5446292Courtesy of GENERAL MOTORS COMPANY

    Select the proper backing plate retaining ring. 4-5-6-7-8-9-10-Reverse Clutch Backing Plate Retaining Ring Measurement

    14. NOTE:

    Smallest diameter ring.

  14. 4-5-6-7-8-9-10-Reverse Clutch Backing Plate Retaining Ring-Selective (1) - Install
    15. NOTE:

    Middle diameter ring.

  15. 4-5-6-7-8-9-10-Reverse Clutch Retaining Ring Retainer (2) - Install
    16. NOTE:

    Largest diameter ring.

  16. 4-5-6-7-8-9-10-Reverse Clutch Backing Plate Retaining Ring Retaining Ring (3) - Install

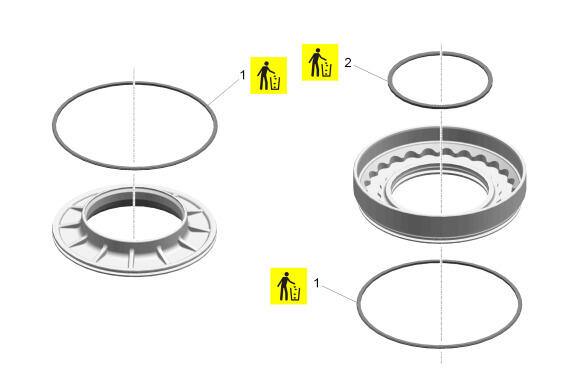

  17. GM5446054Courtesy of GENERAL MOTORS COMPANY

    1-2-3-4-6-7-8-10-Reverse Clutch Piston Seal- Outer (1) - Install NEW [2x]

  18. 1-2-3-4-6-7-8-10-Reverse Clutch Piston Seal- Inner (2) - Install NEW

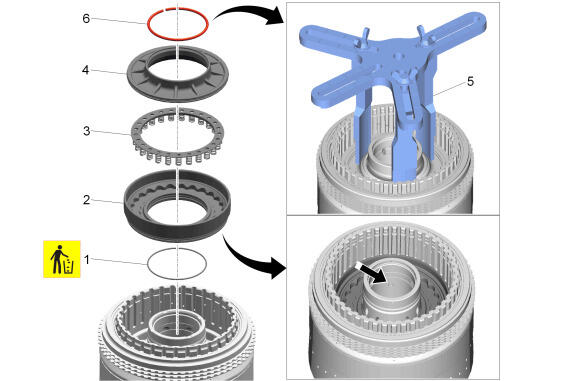

  19. GM5446293Courtesy of GENERAL MOTORS COMPANY

    2-3-4-5-7-9-10 Clutch Piston Seal- Inner (1) - Install NEW

  20. 1-2-3-4-6-7-8-10-Reverse Clutch Piston (2) - Install
  21. 1-2-3-4-6-7-8-10-Reverse Clutch Piston Return Spring (3) - Install
  22. 1-2-3-4-6-7-8-10-Reverse Clutch Piston Dam (4) - Install
  23. Using the DT-51892  press tool (5) and an arbor press, compress the piston just enough to install the 2-3-4-5-7-9-10 Clutch Piston Dam Retaining Ring (6).
  24. 2-3-4-5-7-9-10 Clutch Piston Dam Retaining Ring (6) - Install

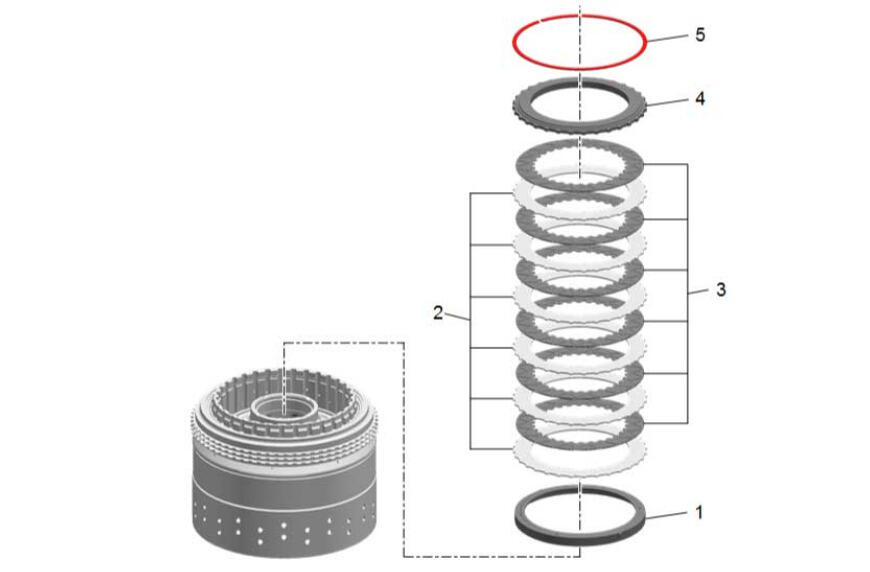

  25. GM5446294Courtesy of GENERAL MOTORS COMPANY

    1-2-3-4-6-7-8-10-Reverse Clutch Apply Ring (1) - Install

  26. 1-2-3-4-6-7-8-10-Reverse Steel Clutch Plate (2) - Install [6x]
  27. 1-2-3-4-6-7-8-10-Reverse Fiber Clutch Plate (3) - Install [6x]
  28. 1-2-3-4-6-7-8-10-Reverse Clutch Backing Plate (4) - Install
  29. Select the proper backing plate retaining ring. 1-2-3-4-6-7-8-10-Reverse Clutch Backing Plate Retaining Ring Measurement
    30. NOTE:

    Install the longer outside diameter side of the ring first.

  30. 1-2-3-4-6-7-8-10-Reverse Clutch Backing Plate Retaining Ring-Selective (5) - Install
  31. GM5445492Courtesy of GENERAL MOTORS COMPANY

    2-3-4-5-7-9-10 Clutch Piston Seal- Outer (1) - Install NEW [2x]

  32. 1-2-3-4-6-7-8-10-Reverse Clutch Piston Seal- Inner (2) - Install NEW

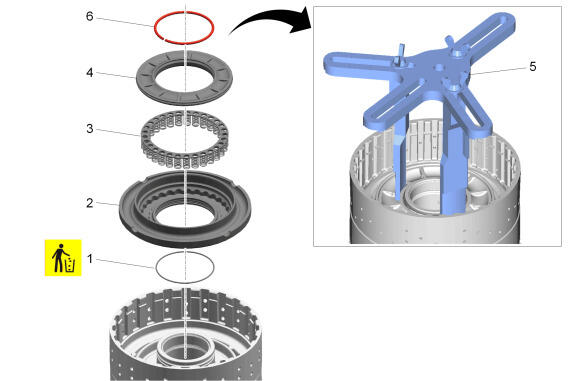

  33. GM5446417Courtesy of GENERAL MOTORS COMPANY

    2-3-4-5-7-9-10 Clutch Piston Dam Seal- Inner (1) - Install NEW

  34. 2-3-4-5-7-9-10 Clutch Piston (2) - Install
  35. 2-3-4-5-7-9-10 Clutch Piston Return Spring (3) - Install
  36. 2-3-4-5-7-9-10 Clutch Piston Dam (4) - Install
  37. Using the DT-51892  press tool (5) and an arbor press, compress the piston just enough to install the 2-3-4-5-7-9-10 Clutch Piston Dam Retaining Ring (6).
  38. 2-3-4-5-7-9-10 Clutch Piston Dam Retaining Ring (6) - Install

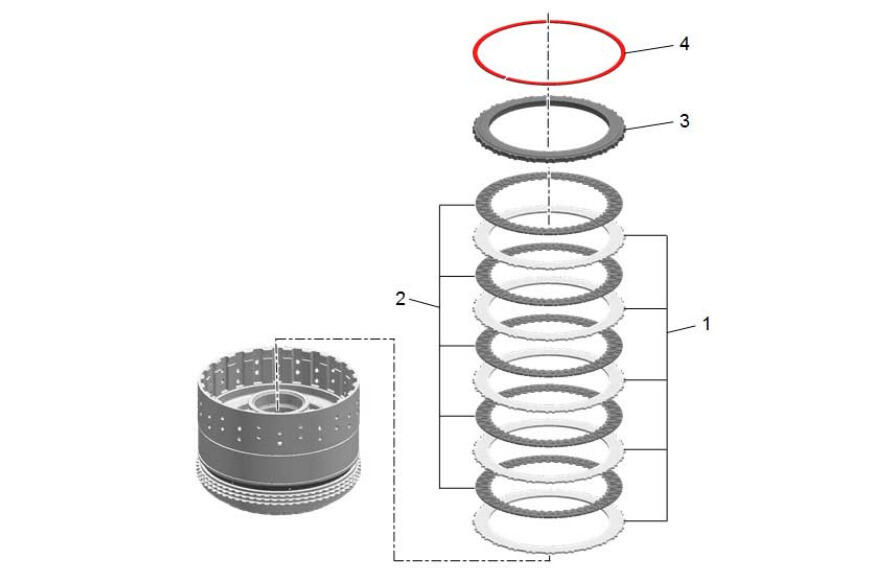

  39. GM5446429Courtesy of GENERAL MOTORS COMPANY

    2-3-4-5-7-9-10 Steel Clutch Plate (1) - Install [5x]

  40. 2-3-4-5-7-9-10 Fiber Clutch Plate (2) - Install [5x]
  41. 2-3-4-5-7-9-10 Clutch Backing Plate (3) - Install
  42. Select the proper 2-3-4-5-7-9-10 Clutch Backing Plate Retaining Ring. 2-3-4-5-7-9-10 Clutch Backing Plate Retaining Ring Measurement
  43. 2-3-4-5-7-9-10 Clutch Backing Plate Retaining Ring-Selective (4) - Install
