Special Tools
WARNING: This page is about a different variant/trim than selected.
- DT-45053 Universal Clamp Press
- DT-52090 Lifting Bar
Equivalent regional tools: Special Tools
Attach the DT-45053 Universal Clamp Press (1) to the Rotating Clutch, Gear, and Shaft Shell (3).
- Ensure that the DT-45053 Universal Clamp Press (1) is under the boss on the input shaft shown by arrow.
- Attach DT-52090 Lifting Bar (2) to the DT-45053 Universal Clamp Press (1).
- Use a hoist or chainfall to lift Rotating Clutch, Gear, and Shaft Shell (3) from case.

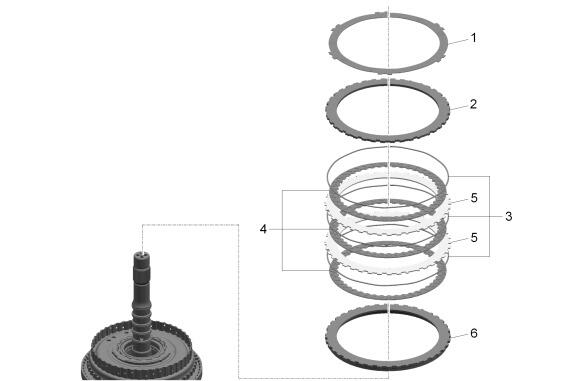

1-2-3-4-5-6-Reverse Clutch Waved Plate (1) - Remove
- 1-2-3-4-5-6-Reverse Clutch Apply Plate-Selective (2) - Remove
- 1-2-3-4-5-6-Reverse Clutch Piston Return Spring (3) - Remove [3x]
- 1-2-3-4-5-6-Reverse Clutch Friction Plate (4) - Remove [3x]
- 1-2-3-4-5-6-Reverse Clutch Steel Plate (5) - Remove [2x]
- 1-2-3-4-5-6-Reverse Clutch Backing Plate (6) - Remove
