Rotating Clutch, Gear, and Shaft Shell Assembly Removal (10L60)
WARNING: This page is about a different variant/trim than selected.
Special Tools
- DT-45053 Universal Clamp Press
- DT-52090 Lifting Bar
Equivalent regional tools: Special Tools

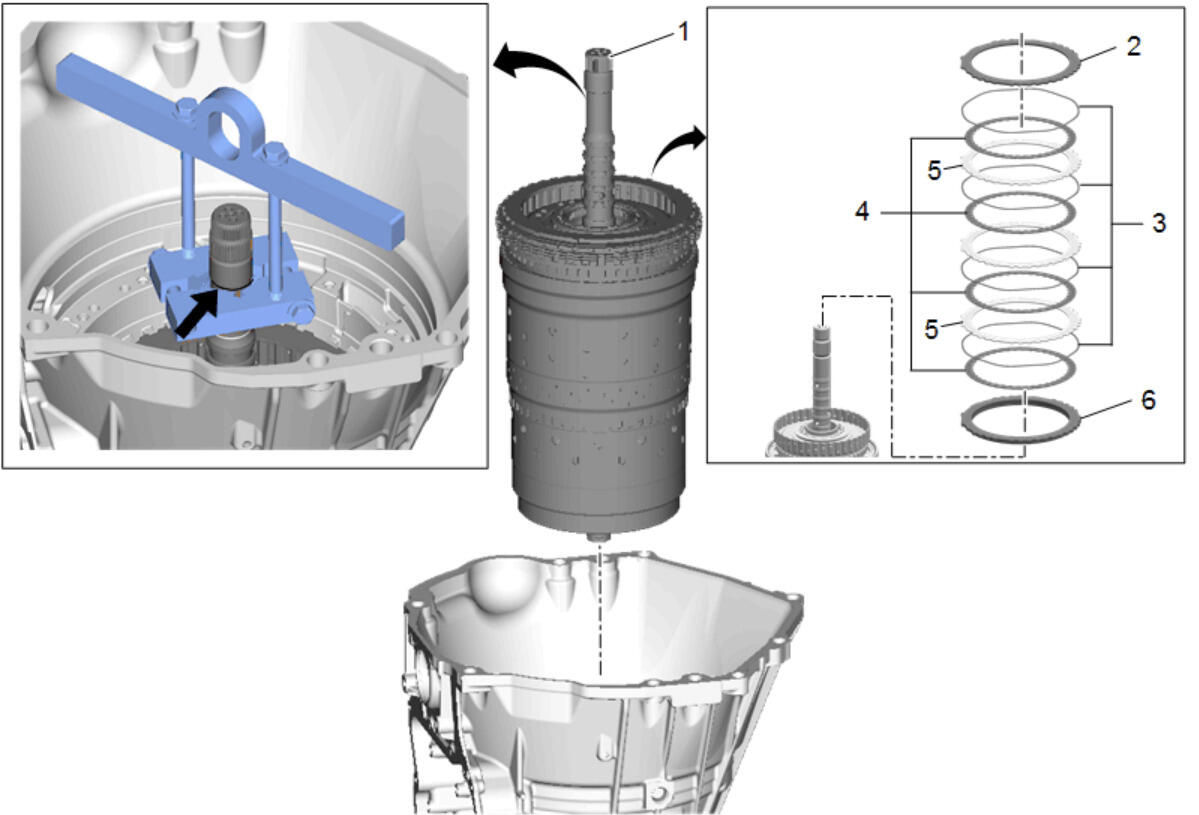

Ensure that the DT-45053 Universal Clamp Press is under the boss on the input shaft shown by arrow.
- DT-52090 Lifting Bar - Install
- Use a hoist or chainfall to lift assembly from case.
- Rotating Clutch, Gear, and Shaft Shell (1) - Remove
- 1-2-3-4-5-6-Reverse Clutch Apply Plate-Selective (2) - Remove
- 1-2-3-4-5-6-Reverse Clutch Piston Return Spring (3) - Remove [4x]
- 1-2-3-4-5-6-Reverse Clutch Friction Plate (4) - Remove [4x]
- 1-2-3-4-5-6-Reverse Clutch Steel Plate (5) - Remove [2x]
- 1-2-3-4-5-6-Reverse Clutch Backing Plate (6) - Remove
