Courtesy of GENERAL MOTORS COMPANY

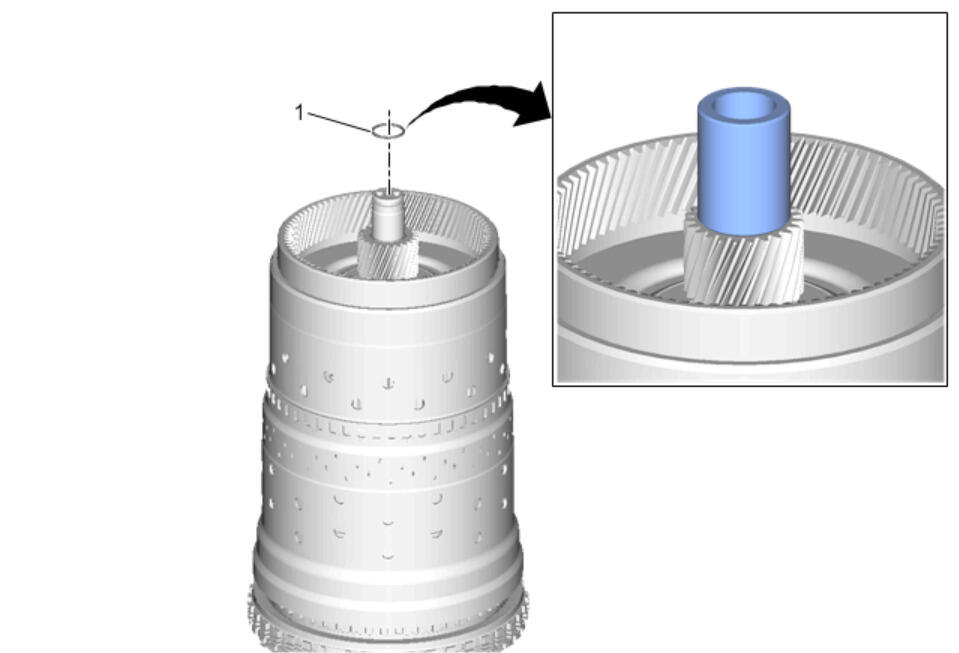

Flip assembly over so the long shaft is pointing downward.
Lube the Turbine Shaft Seal and then install the Turbine Shaft Seal by hand slowly. Ensure the seal is not rolled upon installation.
Turbine Shaft Seal (1) - Install NEW

NOTE:

Seal robustness may be improved if the sizer is left on until the shaft is installed in the Triple Clutch Housing.

Install the DT-52699 Turbine Shaft Seal Sizer over the end of the turbine shaft and seal. The DT-52699 Turbine Shaft Seal Sizer should stay installed for at least 5 minutes before removal.
Courtesy of GENERAL MOTORS COMPANY

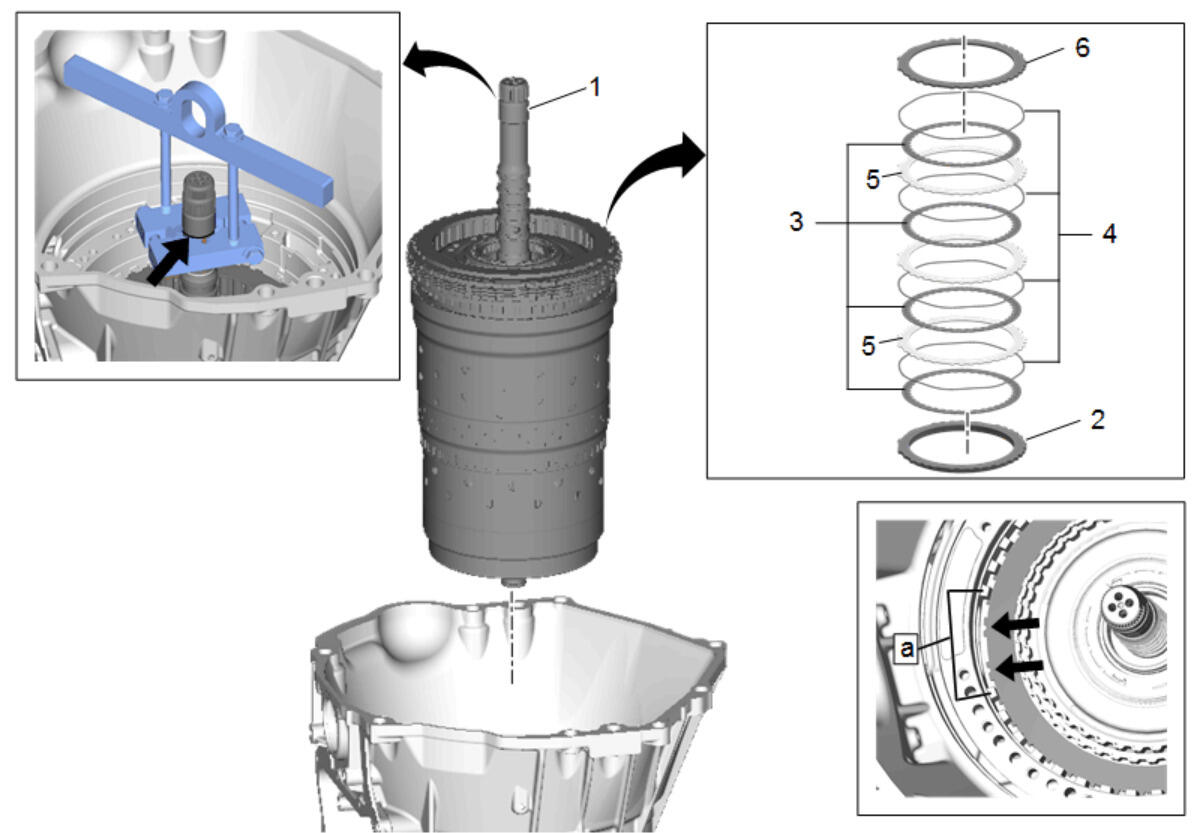

Ensure the park pawl is engaged.
DT-45053 Universal Clamp Press
- Install
DT-52090 Lifting Bar - Install
Use a hoist or chainfall to install assembly into case.
Once installed, the top speed sensor hole should show the reluctor wheel through it.
Rotating Clutch, Gear, and Shaft Shell (1) - Install
Install the assembly into the case. Once set in rotate the turbine shaft clockwise until it drops and seats into the output carrier.

NOTE:

Notches on plates must be aligned between gap in bottom side of the case (a).

NOTE:

Notches on plates must be aligned between gap in case (a).

1-2-3-4-5-6-Reverse Clutch Steel Plate (5) - Install
[2x]
Select the correct 1-2-3-4-5-6-Reverse Clutch Apply Plate 1-2-3-4-5-6-Reverse Clutch Apply Plate Measurement (10L60)

NOTE:
