Single Use Fasteners and Components
WARNING: This page is about a different variant/trim than selected.
- Reaction Carrier Hub Retaining Ring
- Output Carrier Internal Gear Retaining Ring

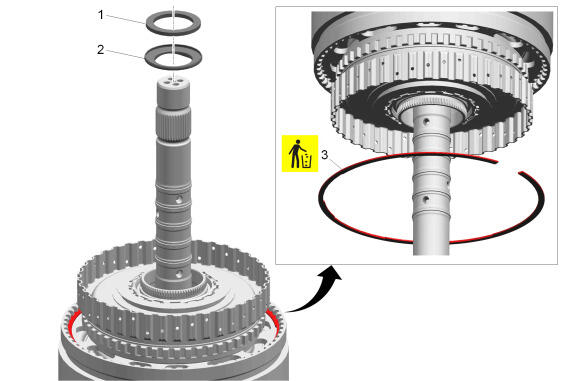

Transmission Case Washer (1) - Remove
- Reaction Sun Gear Thrust Bearing (2) - Remove
- Flip the assembly over.
- Reaction Carrier Hub Retaining Ring (3) - Remove and DISCARD

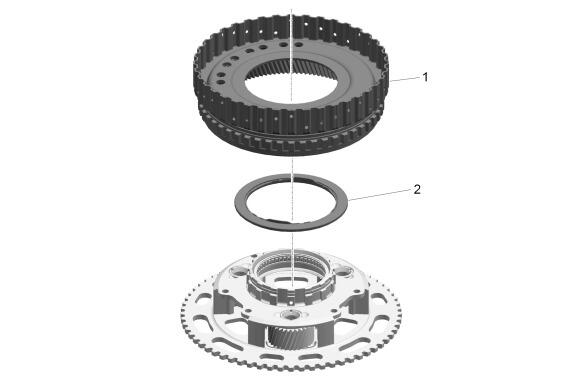

Output Carrier Internal Gear Transfer Shell (1) - Remove

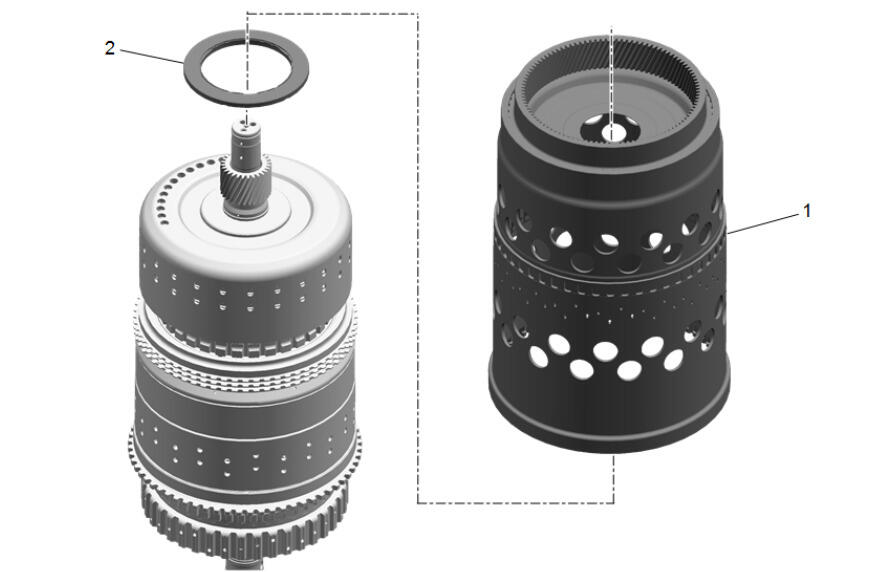

- Output Carrier Thrust Bearing Assembly (2) - Remove

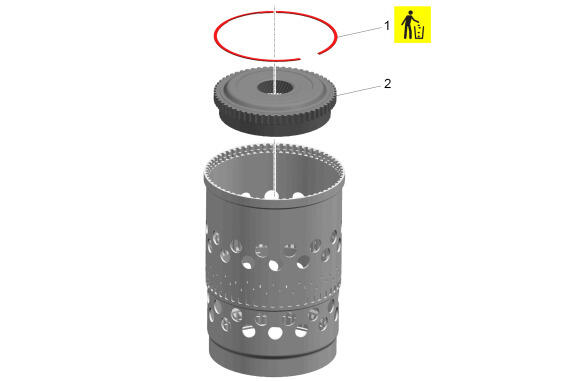

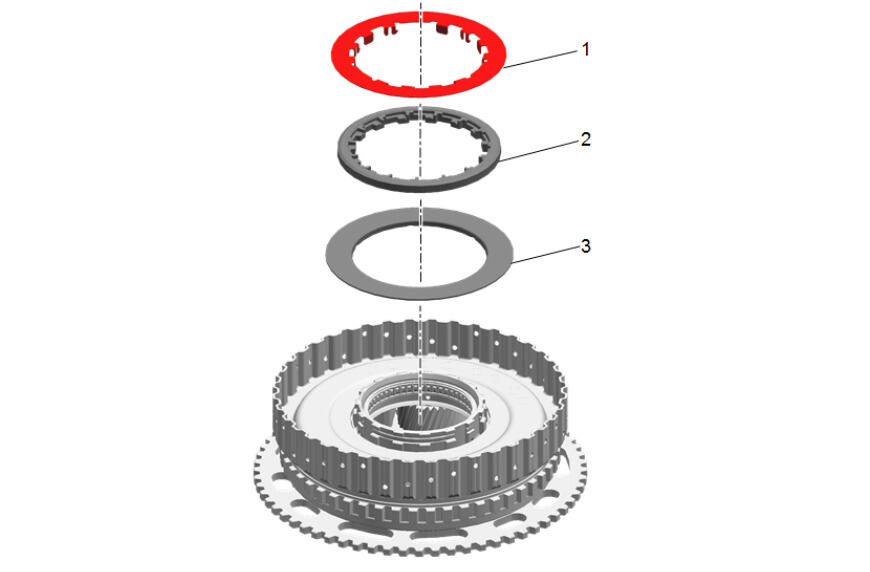

Output Carrier Internal Gear Retaining Ring (1) - Remove and DISCARD
- Output Carrier Internal Gear (2) - Remove

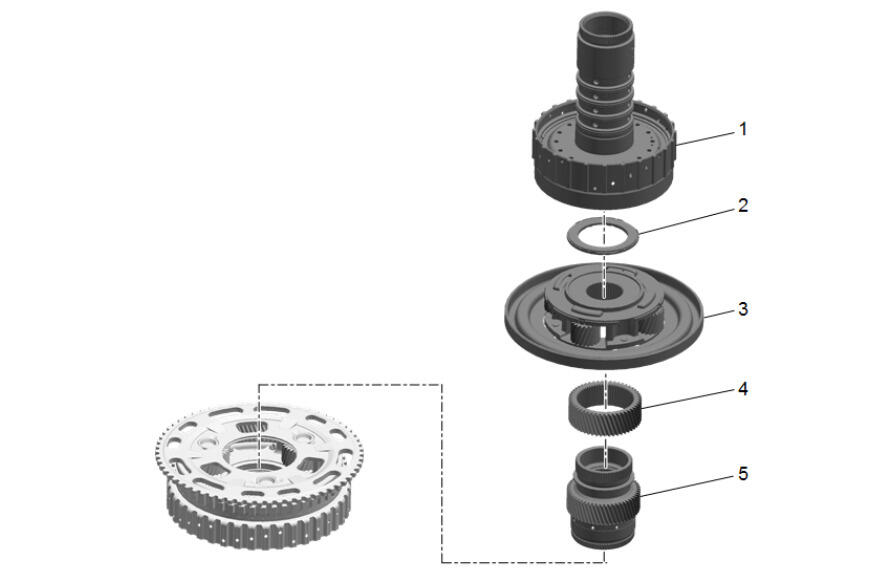

Main Shaft (1) - Remove
Direct Overdrive Sun Gear (1) - Remove
- Direct Overdrive Carrier (2) - Remove
- Triple Clutch Housing (3) - Remove

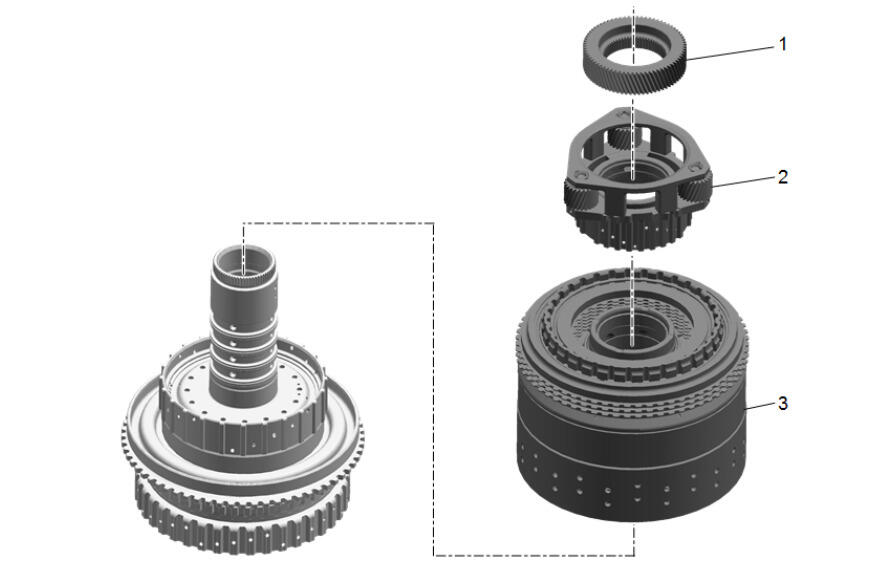

Direct Overdrive Sun Gear Shaft (1) - Remove
- Input Sun Gear Thrust Bearing (2) - Remove
- Input Carrier Assembly (3) - Remove
- Input Sun Gear (4) - Remove
- Reaction Sun Gear Assembly (5) - Remove
Reaction Internal Gear Spacer Retainer (1) - Remove
- Rotate the Reaction Internal Gear Spacer (2) clockwise, then remove.
- Reaction Internal Gear Spacer (2) - Remove
- Reaction Internal Gear Thrust Bearing (3) - Remove
Reaction Internal Gear (1) - Remove
- Reaction Internal Gear Thrust Bearing (2) - Remove
NOTE:
Remove the retaining ring by pulling downward.
