Single Use Fasteners and Components

WARNING: This page is about a different variant/trim than selected.

Output Shaft Seal [2x]

Courtesy of GENERAL MOTORS COMPANY

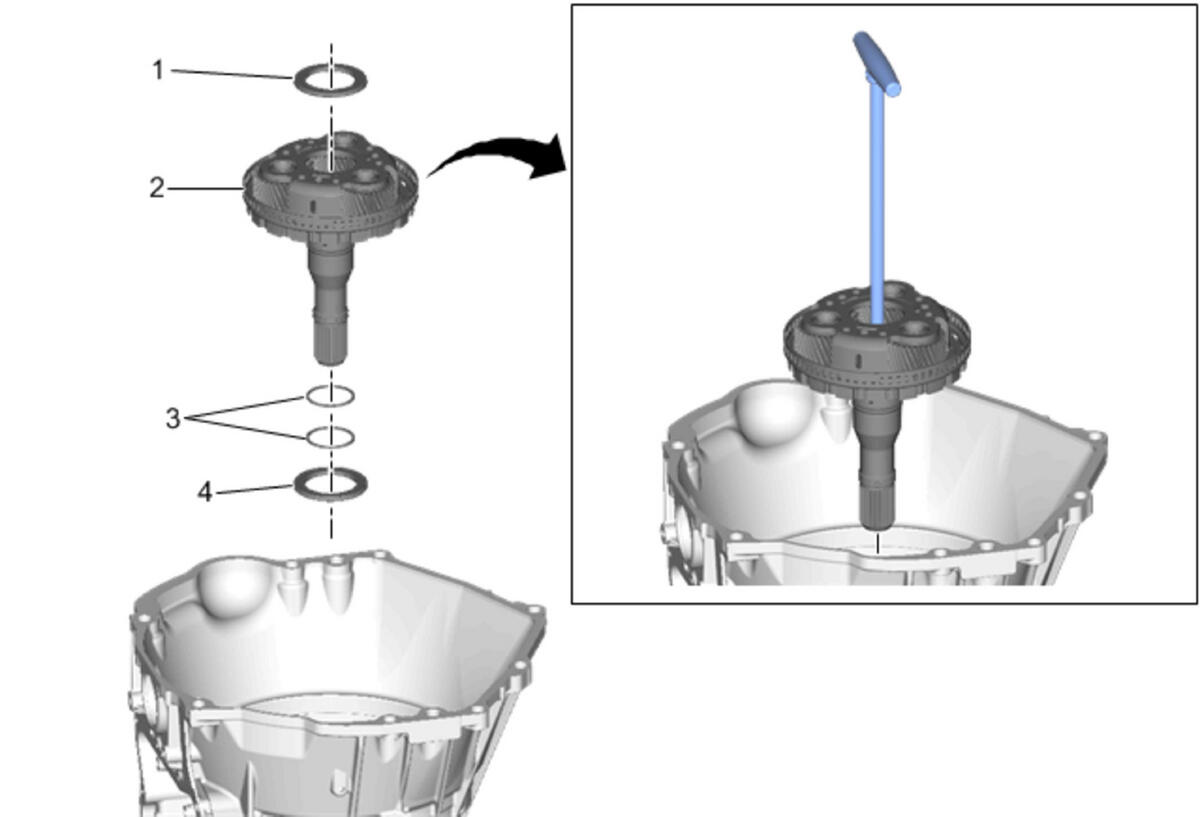

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Output Carrier Thrust Bearing Assembly
2	Output Carrier Assembly Special Tools DT-50921 Output Carrier Lifter Equivalent regional tools: Special Tools
3	Output Shaft Seal [2x] Procedure DISCARD the seals.
4	Output Carrier Thrust Bearing Assembly
