Manual Shift Shaft Seal
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:

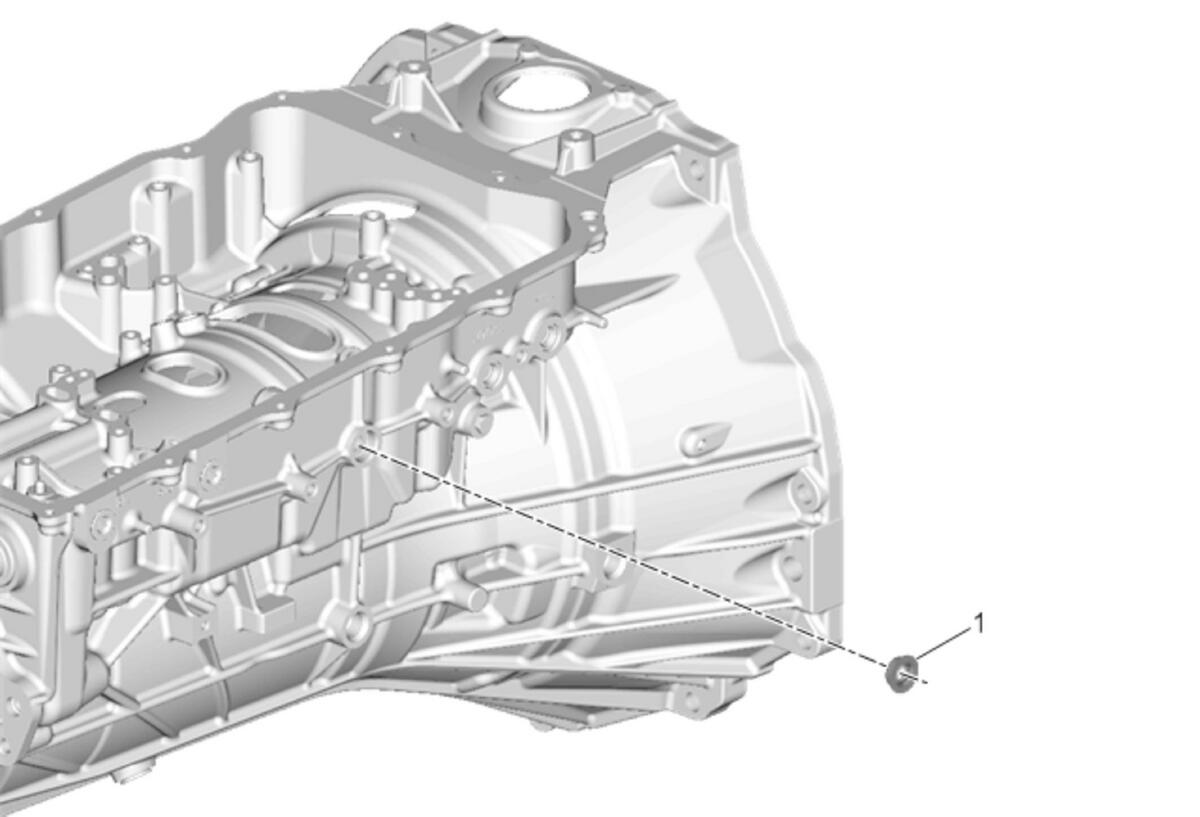

Callouts in the following chart represent components shown in graphic above.
| Callout |
Component Name |
| 1 |
Manual Shift Shaft Seal
CAUTION:
Do not damage the case bore during removal of the manual shift shaft seal.
Procedure
DISCARD the seal. |
