Manual Shift Shaft Seal
NOTE:

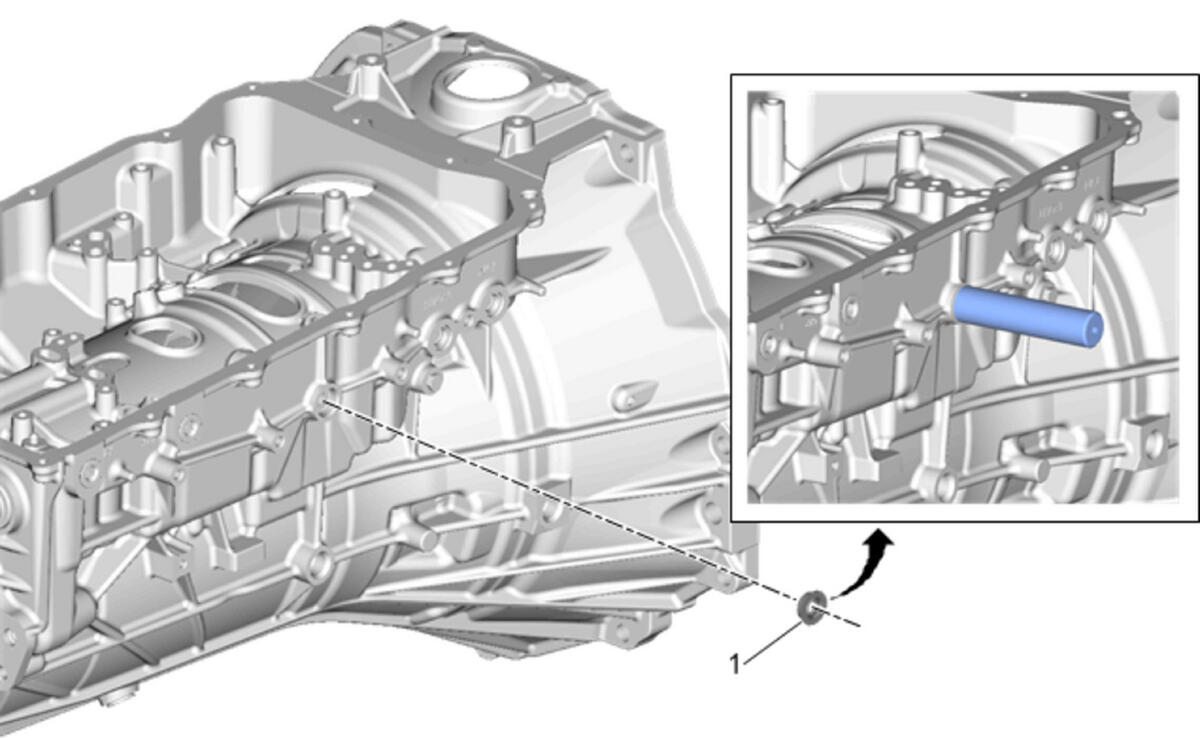

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Manual Shift Shaft Seal
CAUTION:
When installing the seal, ensure the seal lip is firmly seated against the case bore surface. Do not allow the seal lip to be crushed, or a leak may result. Procedure Use a NEW seal. Special Tools DT-47770 Seal Installer Equivalent regional tools: Special Tools . |
