Single Use Fasteners and Components
WARNING: This page is about a different variant/trim than selected.
- Manual Shift Shaft Pin
- Park Pawl Actuator Guide Pin
- Transmission Fluid Cooler Pipe Fitting Seal [2x]
NOTE:

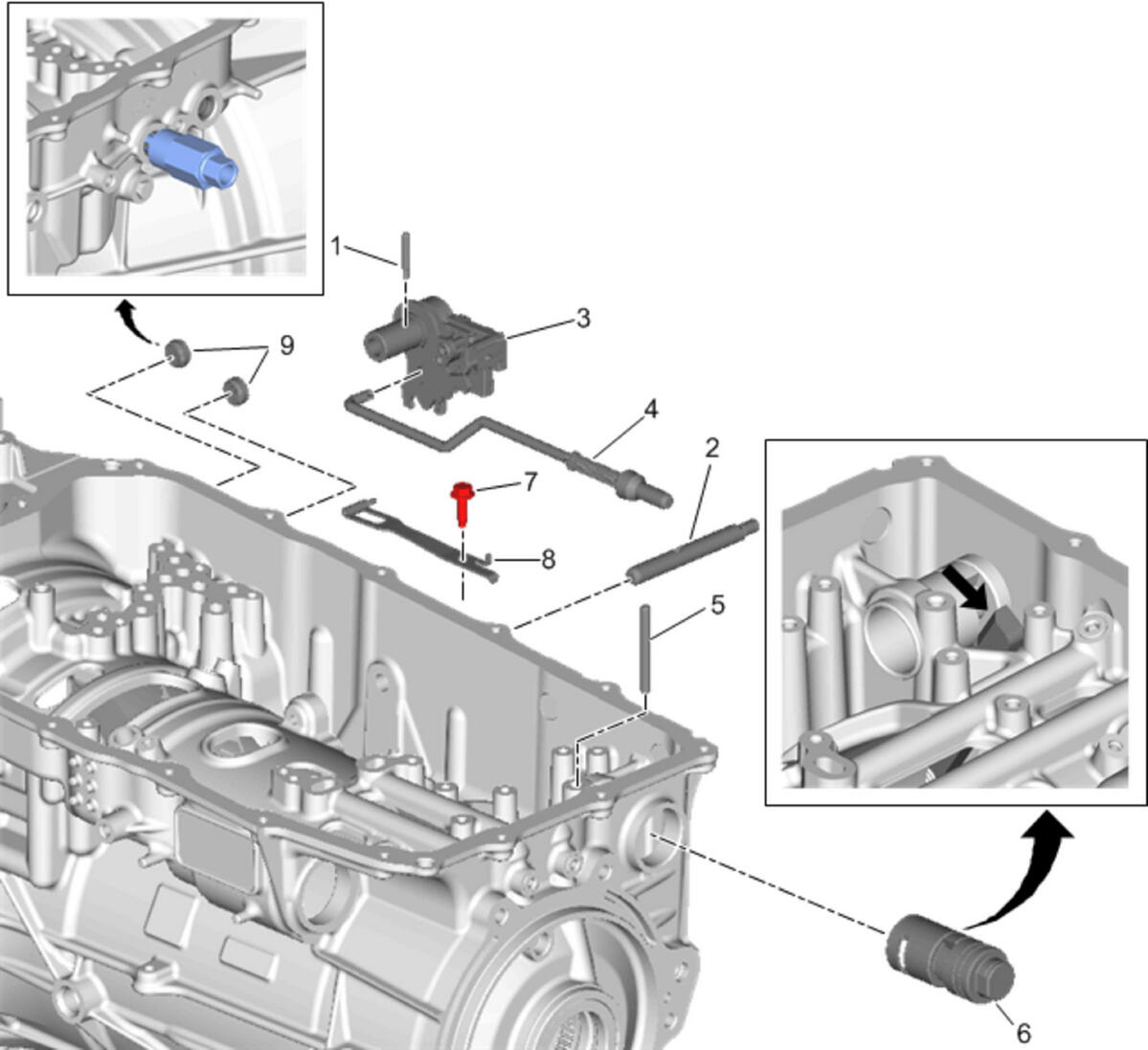

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Manual Shift Shaft Pin Procedure Remove and DISCARD, pin is not reusable. |
| 2 | Manual Shift Shaft |
| 3 | Automatic Transmission Manual Shift Shaft Position Switch |
| 4 | Park Pawl Actuator Assembly |
| 5 | Park Pawl Actuator Guide Pin Procedure Remove and DISCARD, pin is not reusable. |
| 6 | Park Pawl Actuator Guide Assembly Procedure Push the park pawl away from the park pawl actuator guide to remove the guide from case. |
| 7 | Manual Shift Shaft Detent Lever Bolt |
| 8 | Manual Shift Shaft Detent Lever Spring Assembly |
| 9 | Transmission Fluid Cooler Pipe Fitting Seal [2x] Procedure DISCARD the seals. Special Tools J-45201-3 Cooler Line Seal Remover Equivalent regional tools: Special Tools |
