Single Use Fasteners and Components
WARNING: This page is about a different variant/trim than selected.
- Manual Shift Shaft Pin
- Park Pawl Actuator Guide Pin
- Transmission Fluid Cooler Pipe Fitting Seal [2x]
NOTE:

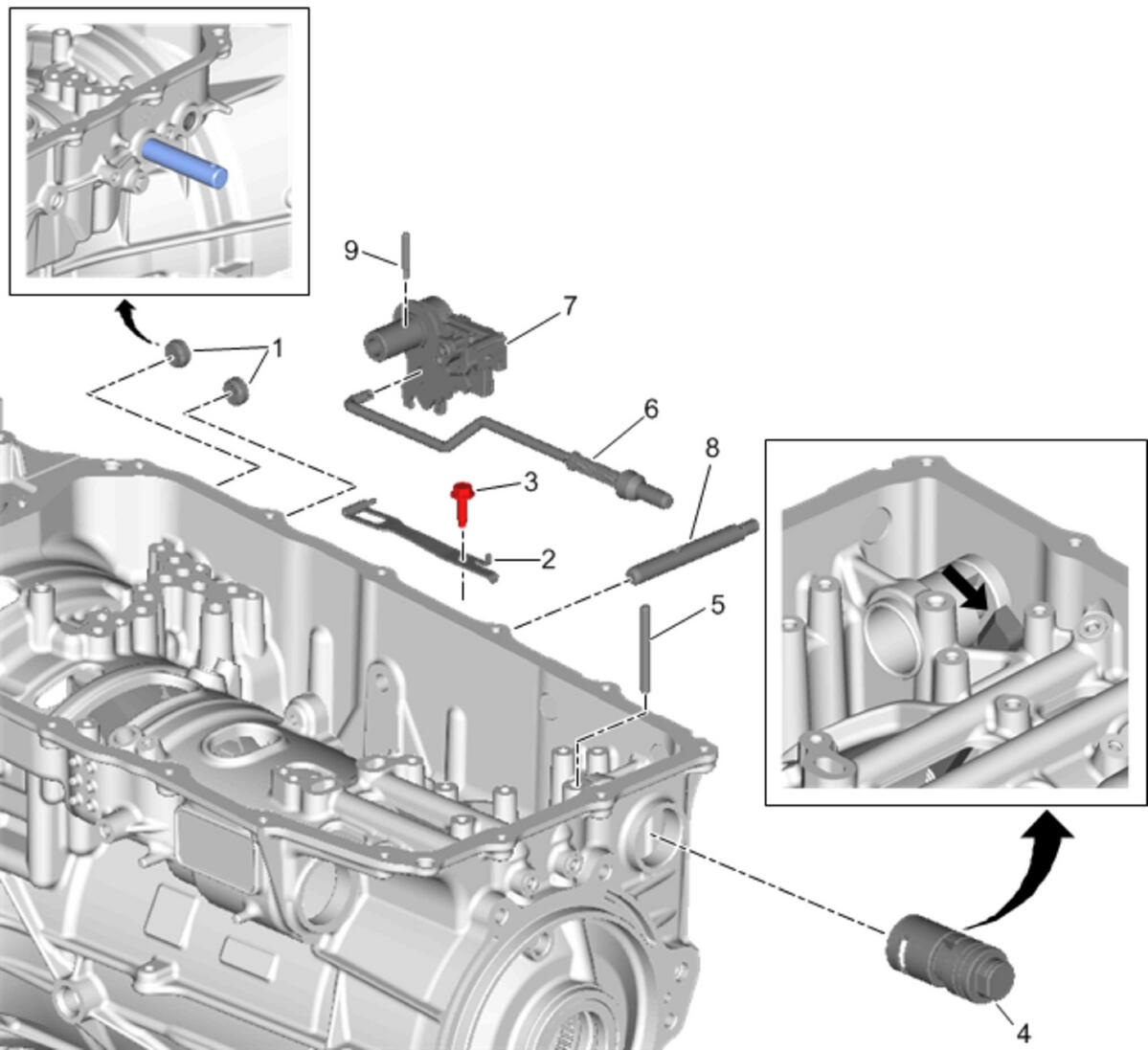

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Transmission Fluid Cooler Pipe Fitting Seal [2x] Procedure Install NEW seals. Special Tools DT-47770 Seal Installer Equivalent regional tools: Special Tools |
| 2 | Manual Shift Shaft Detent Lever Spring Assembly |
| 3 | Manual Shift Shaft Detent Lever Bolt
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 4 | Park Pawl Actuator Guide Assembly Procedure Push the park pawl away from the park pawl actuator guide, then install the guide into the case. |
| 5 | Park Pawl Actuator Guide Pin
CAUTION:
Refer to Pin Reuse Caution .
NOTE:
Use a NEW pin. Procedure Install the pin to a height of 5 mm (0.19 in). |
| 6 | Park Pawl Actuator Assembly |
| 7 | Automatic Transmission Manual Shift Shaft Position Switch |
| 8 | Manual Shift Shaft |
| 9 | Manual Shift Shaft Pin
CAUTION:
Refer to Pin Reuse Caution .
NOTE:
Use a NEW pin. Procedure Install the pin so equal amounts stick out from either side of the manual shaft. |
