Single Use Fasteners and Components

WARNING: This page is about a different variant/trim than selected.

Direct Overdrive Sun Gear Shaft Seal [4x]

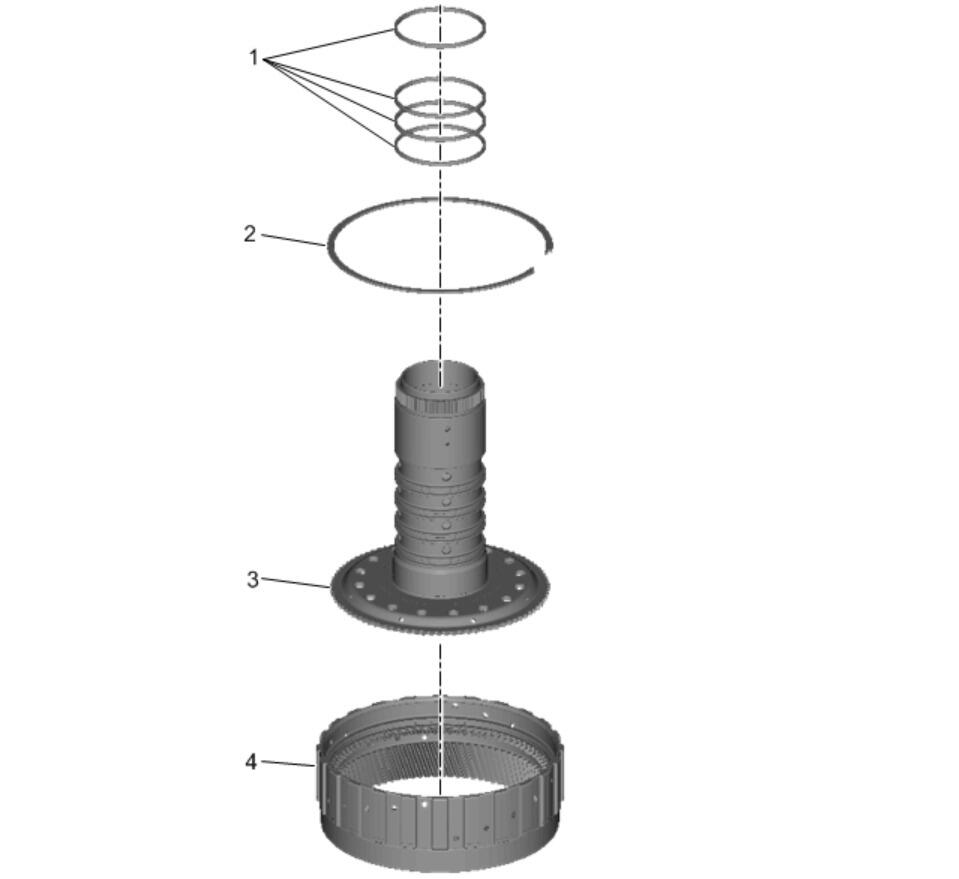

  1. GM4528495Courtesy of GENERAL MOTORS COMPANY

    Direct Overdrive Sun Gear Shaft Seal (1) - Remove and DISCARD [4x]

  2. Input Internal Gear Retaining Ring (2) - Remove
  3. Direct Overdrive Sun Gear Shaft (3) - Remove
  4. Input Internal Gear Hub (4) - Remove
