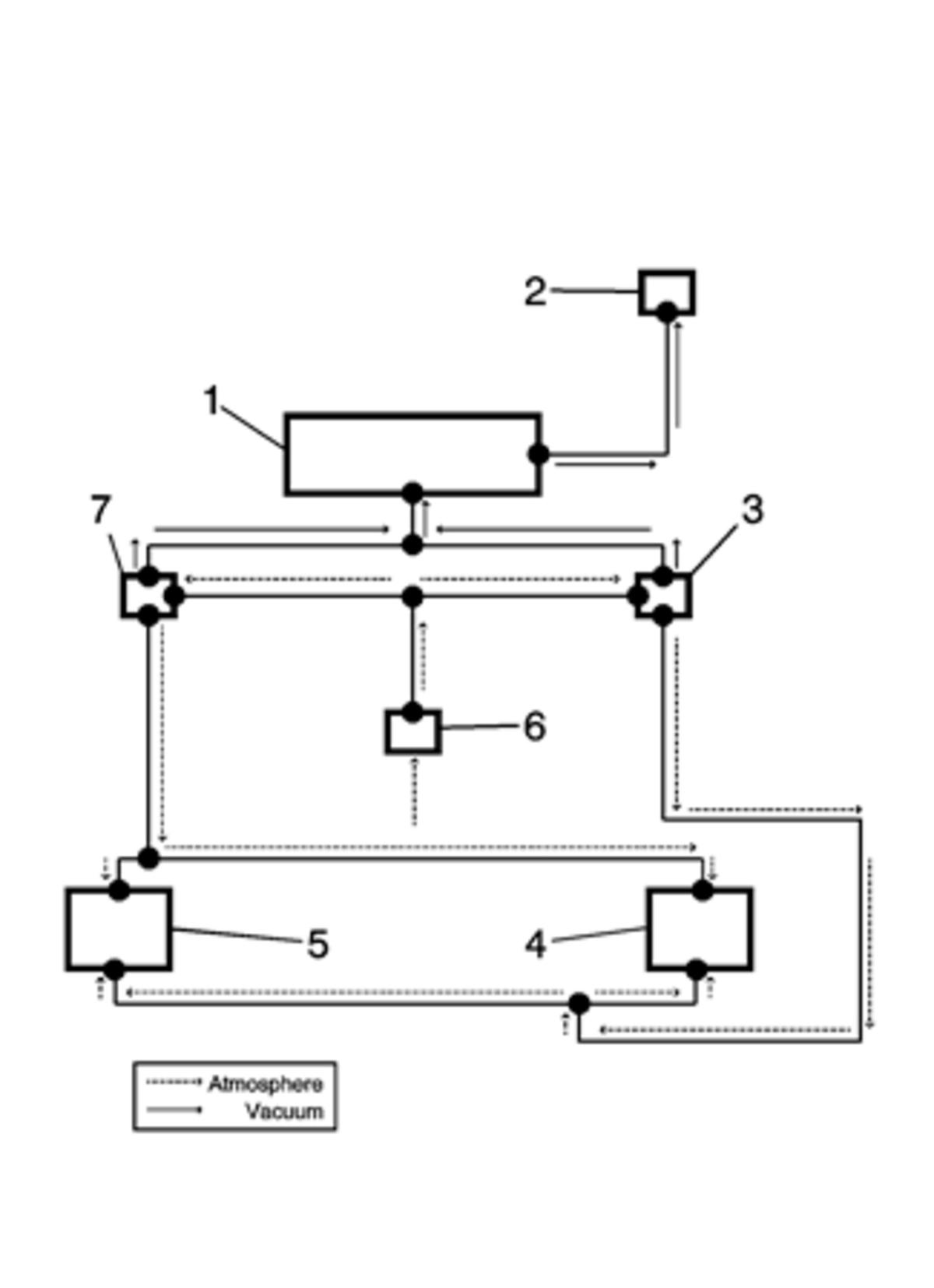

Driveaway State - No Vacuum Applied
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Callout |
Component Name |
| 1 |
Vacuum Tank Assembly |
| 2 |
Check Valve |
| 3 |
Engine Mount Solenoid Valve - Right Assembly |
| 4 |
RH Engine Mount |
| 5 |
LH Engine Mount |
| 6 |
Filter Assembly |
| 7 |
Engine Mount Solenoid Valve - Left Assembly |
