Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Disconnect the charge air cooler outlet air tube from the throttle body. Charge Air Cooler Outlet Air Tube Replacement
Starter Replacement (LTG) - Remove
Reinstall the right engine mount bracket and bolt engine frame to body.
Raise and suitably support the vehicle. Lifting and Jacking the Vehicle (ZL1)Lifting and Jacking the Vehicle (Convertible)
Two-Piece Propeller Shaft Replacement (Coupe with LTG and M5T)Two-Piece Propeller Shaft Replacement (Convertible with LTG and M5T) - Remove
Warm Up Three-Way Catalytic Converter Replacement (LTG) - Remove
Courtesy of GENERAL MOTORS COMPANY

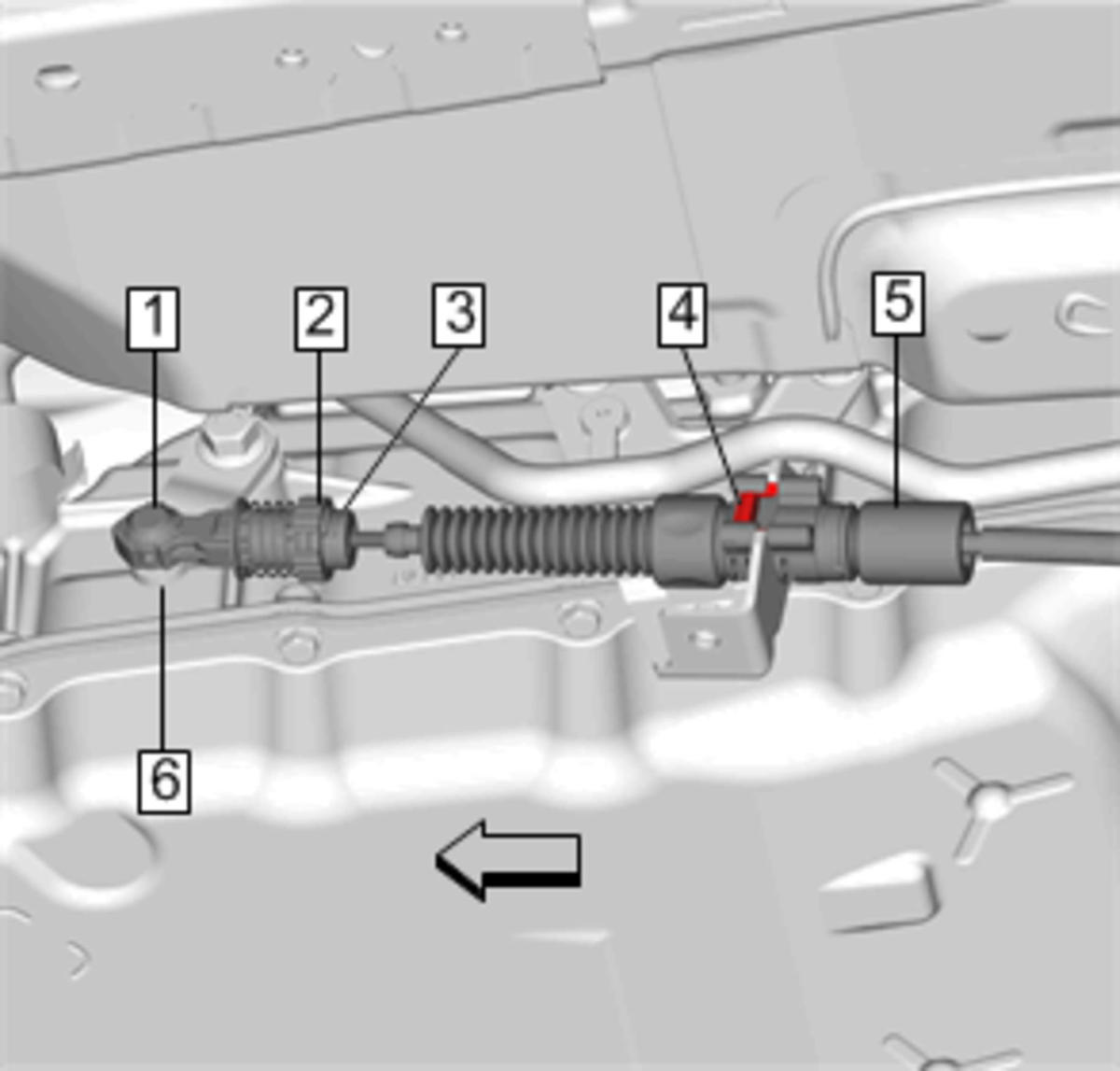

Disconnect the transmission range selector lever cable terminal (1) from the transmission manual shift lever pin (6).
Slide the retainer (4) forward to release the transmission range selector lever cable (5) from the bracket.
Courtesy of GENERAL MOTORS COMPANY

Remove the auxiliary heater pump bracket (3) from the transmission and position aside.

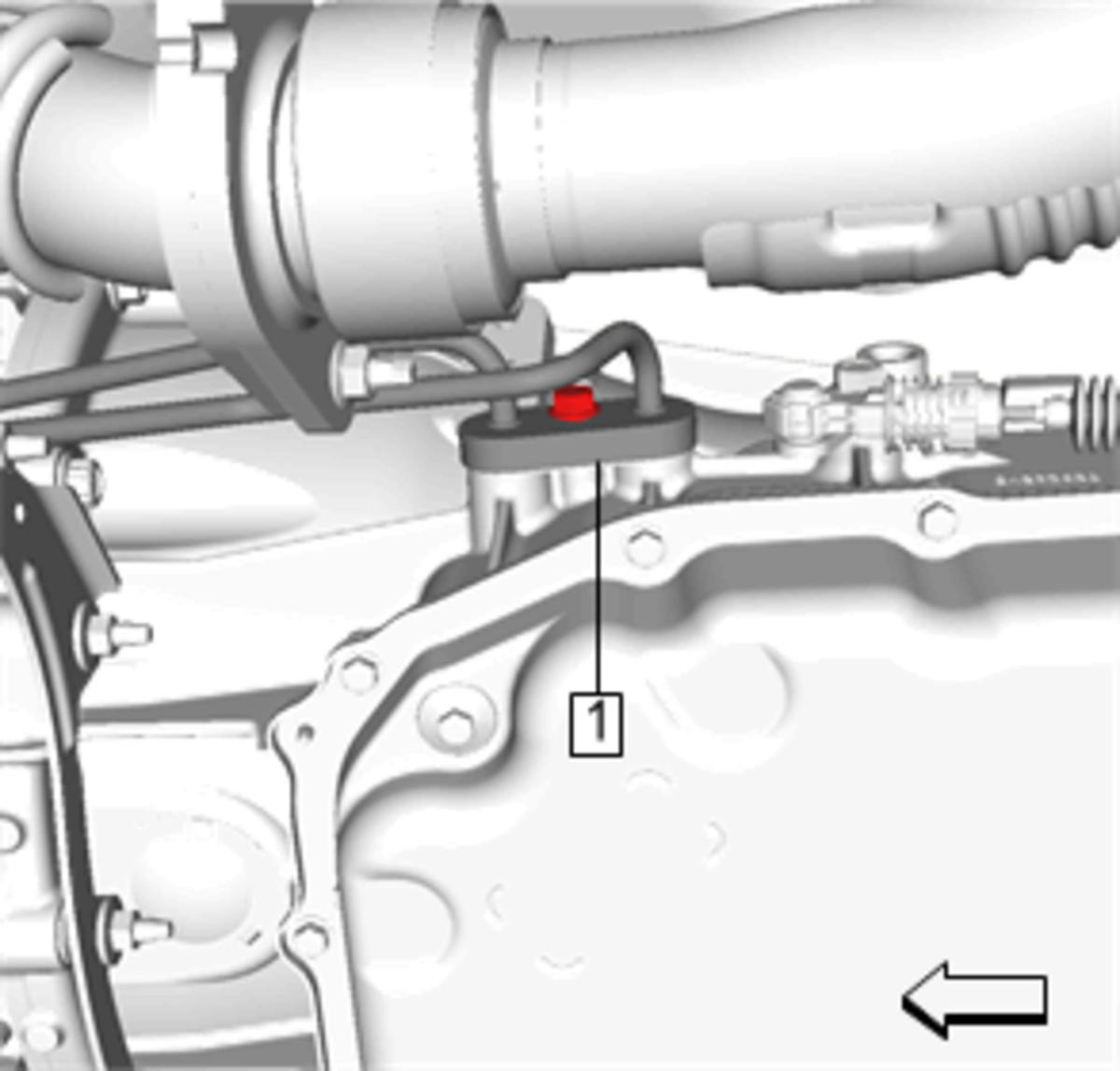

Courtesy of GENERAL MOTORS COMPANY

Place an oil drain pan under the transmission fluid cooler pipes (1).
Remove the transmission fluid cooler inlet and outlet pipes (1) from the transmission, and position aside, or remove from the vehicle as necessary. Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LTG With M5T, Without V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LTG With M5T, With V03)
Plug the open fluid ports to prevent fluid loss and contamination.
Transmission Converter Cover Replacement (M5T, LGX Engine) Transmission Converter Cover Replacement (Left Side M5U) - Remove
Courtesy of GENERAL MOTORS COMPANY

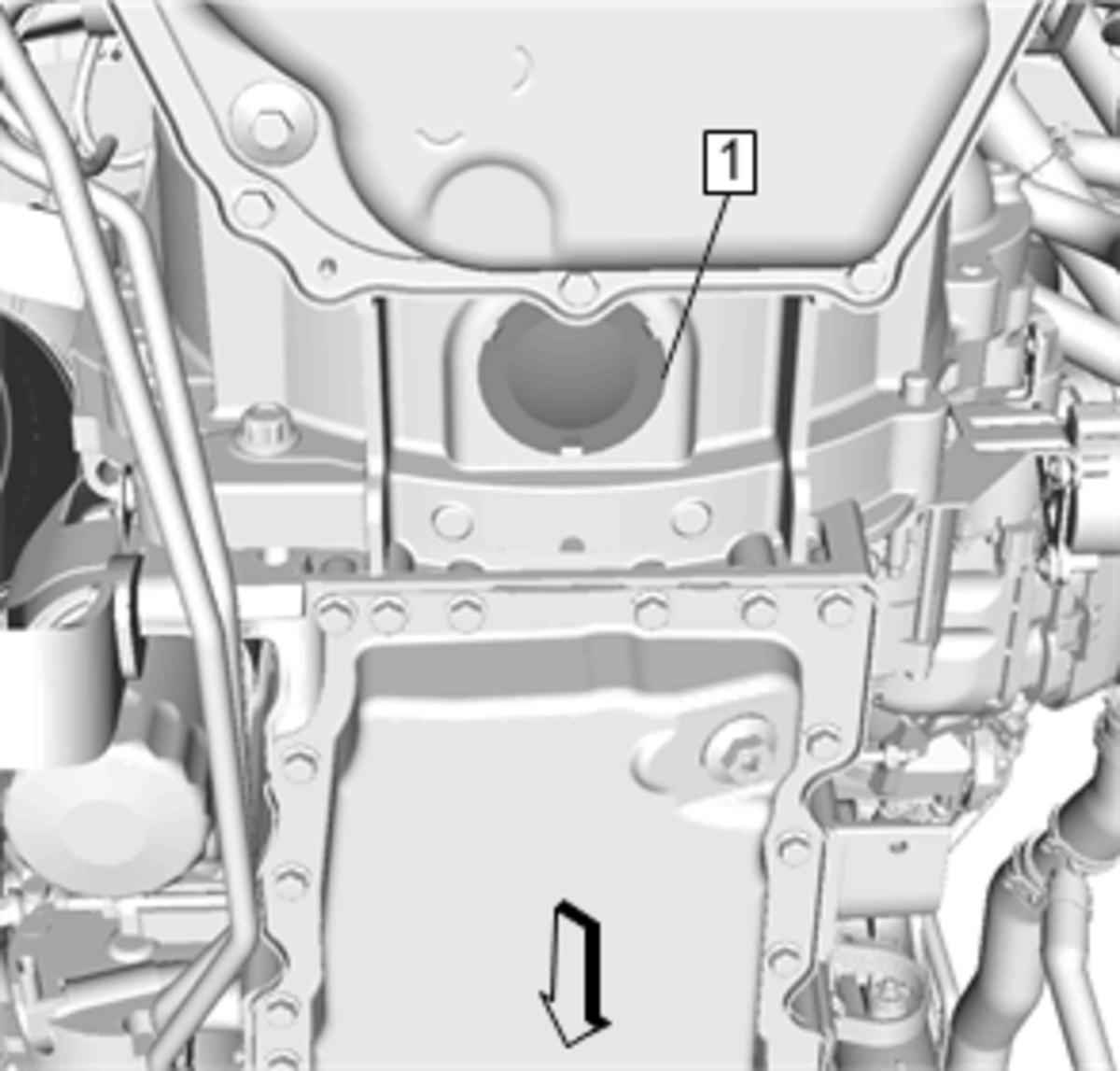

Remove the transmission close out plug (1).
Mark the torque converter to flexplate orientation to ensure proper realignment.

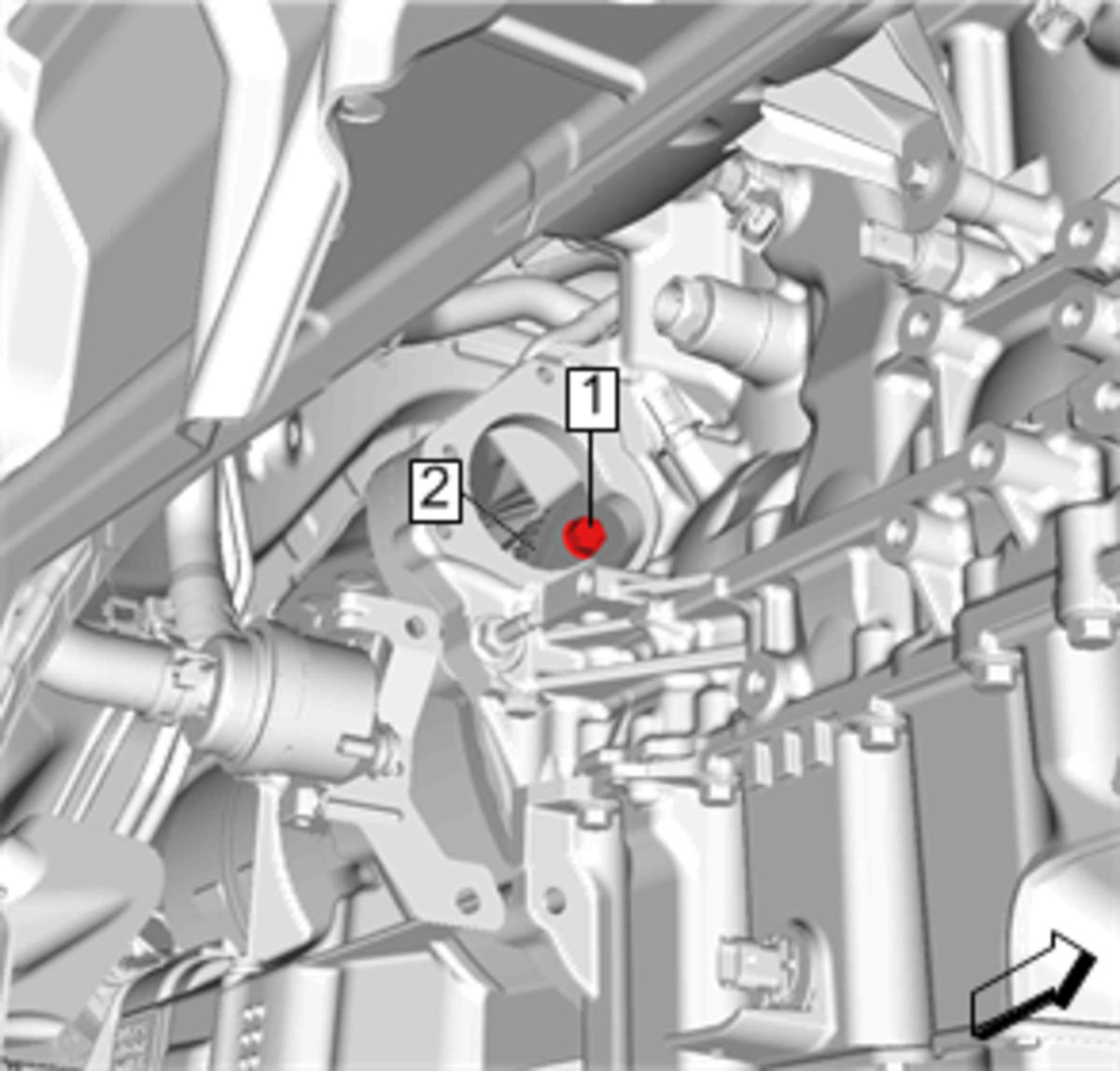

Courtesy of GENERAL MOTORS COMPANY

Repeat the following steps for all torque converter bolts (1) :
1. Rotate the harmonic balancer center bolt clockwise ONLY, in order to align the torque converter bolt with the starter opening.
2. Remove and Discard the torque converter bolt.
Courtesy of GENERAL MOTORS COMPANY

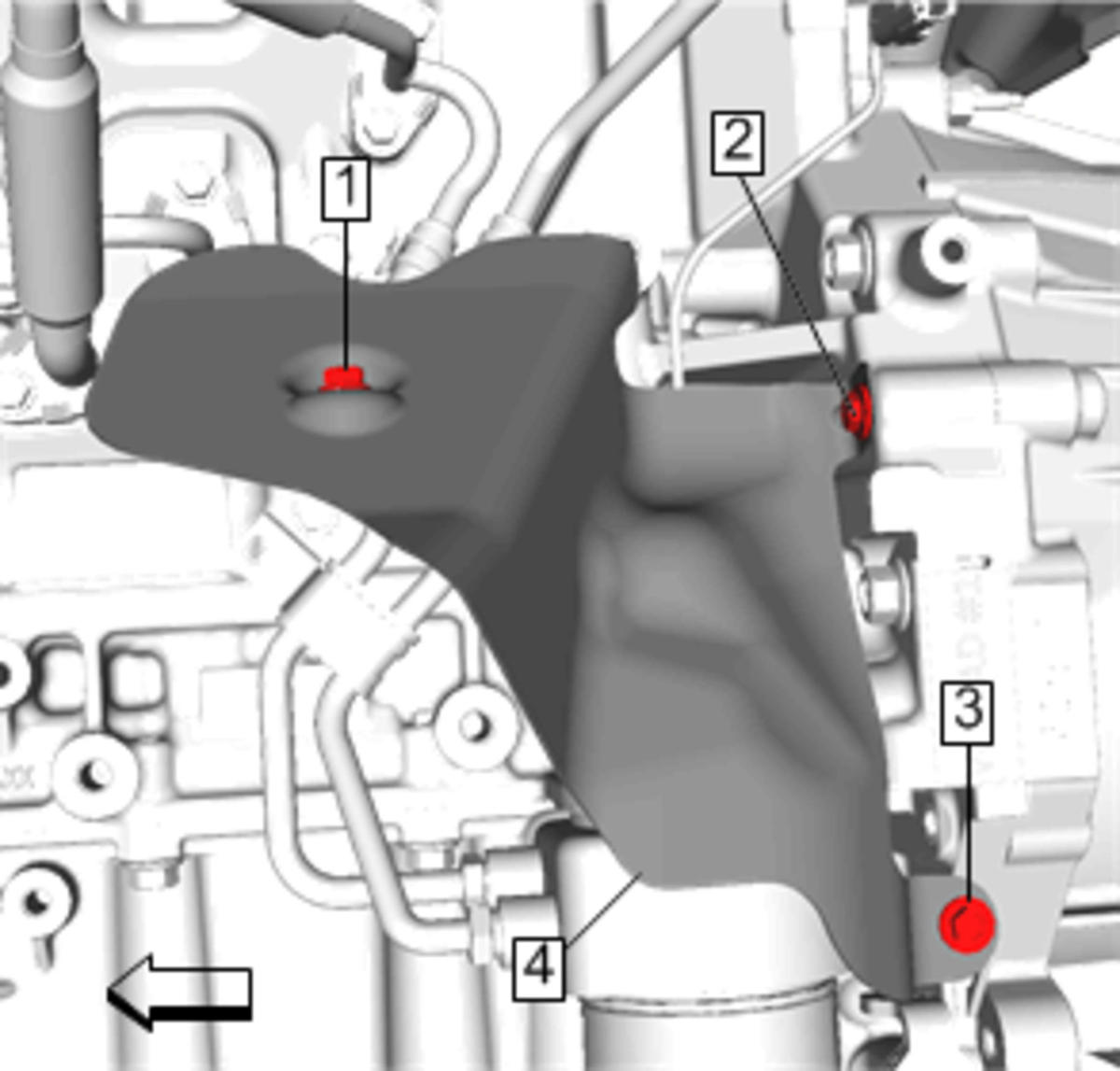

Remove the catalytic converter shield (4) from the engine assembly.
Disconnect the electrical wiring harness retainers from the transmission to engine fasteners and from the transmission case.
Support the transmission with a suitable transmission jack.
Courtesy of GENERAL MOTORS COMPANY

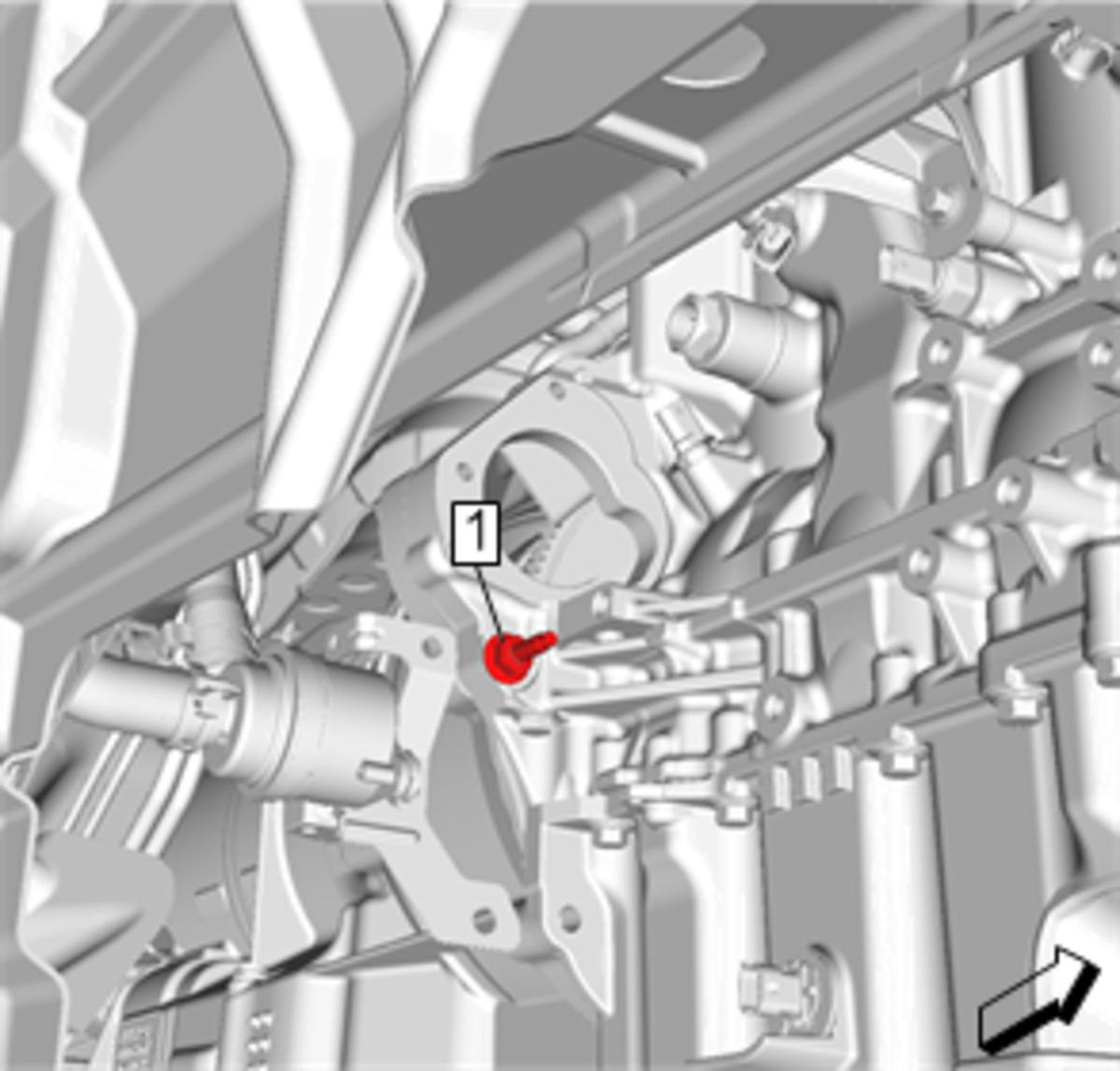

Remove the lower right transmission to engine bolt (1).
Courtesy of GENERAL MOTORS COMPANY

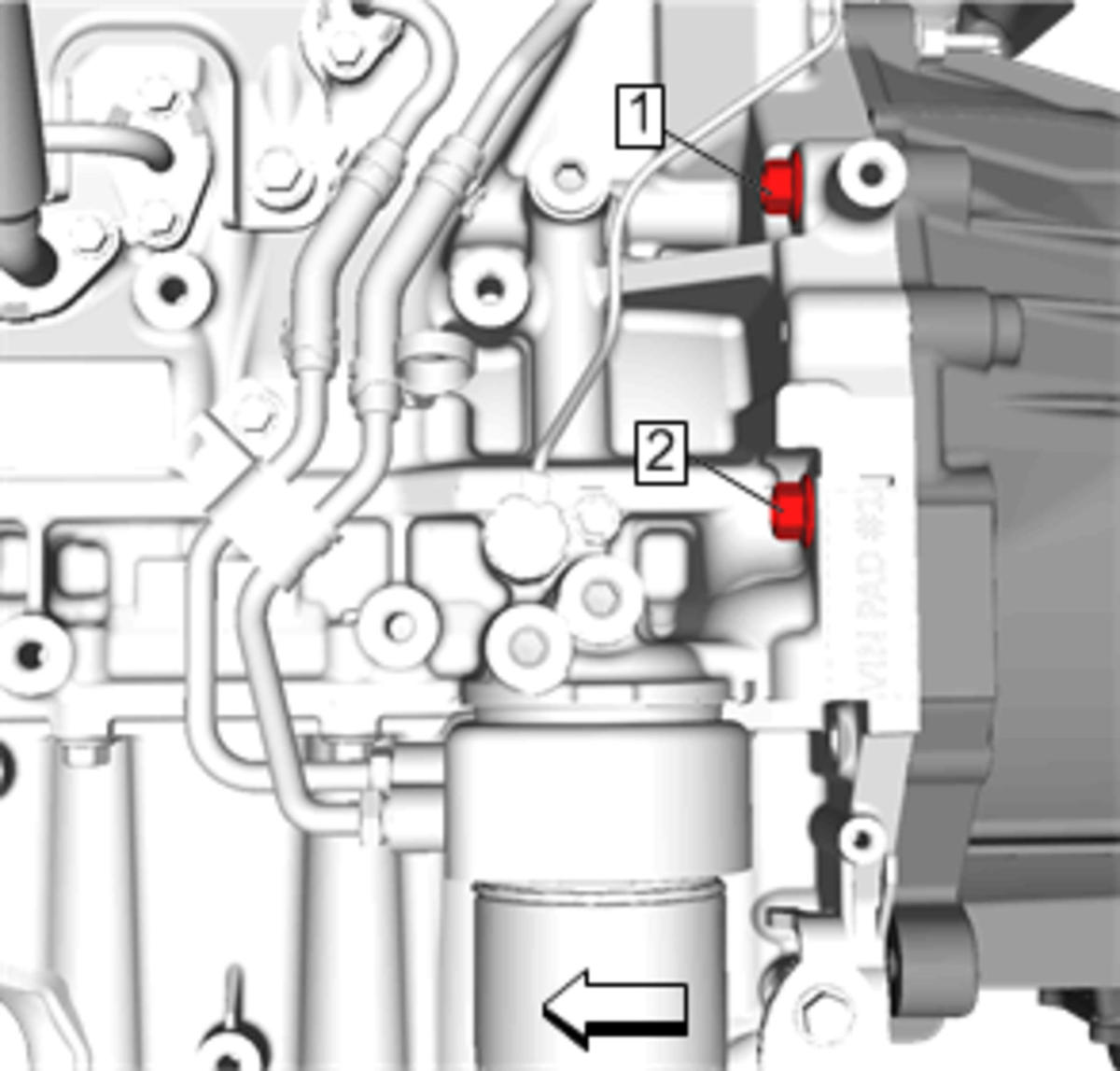

Remove the lower left transmission to engine bolts (1, 2).
Courtesy of GENERAL MOTORS COMPANY

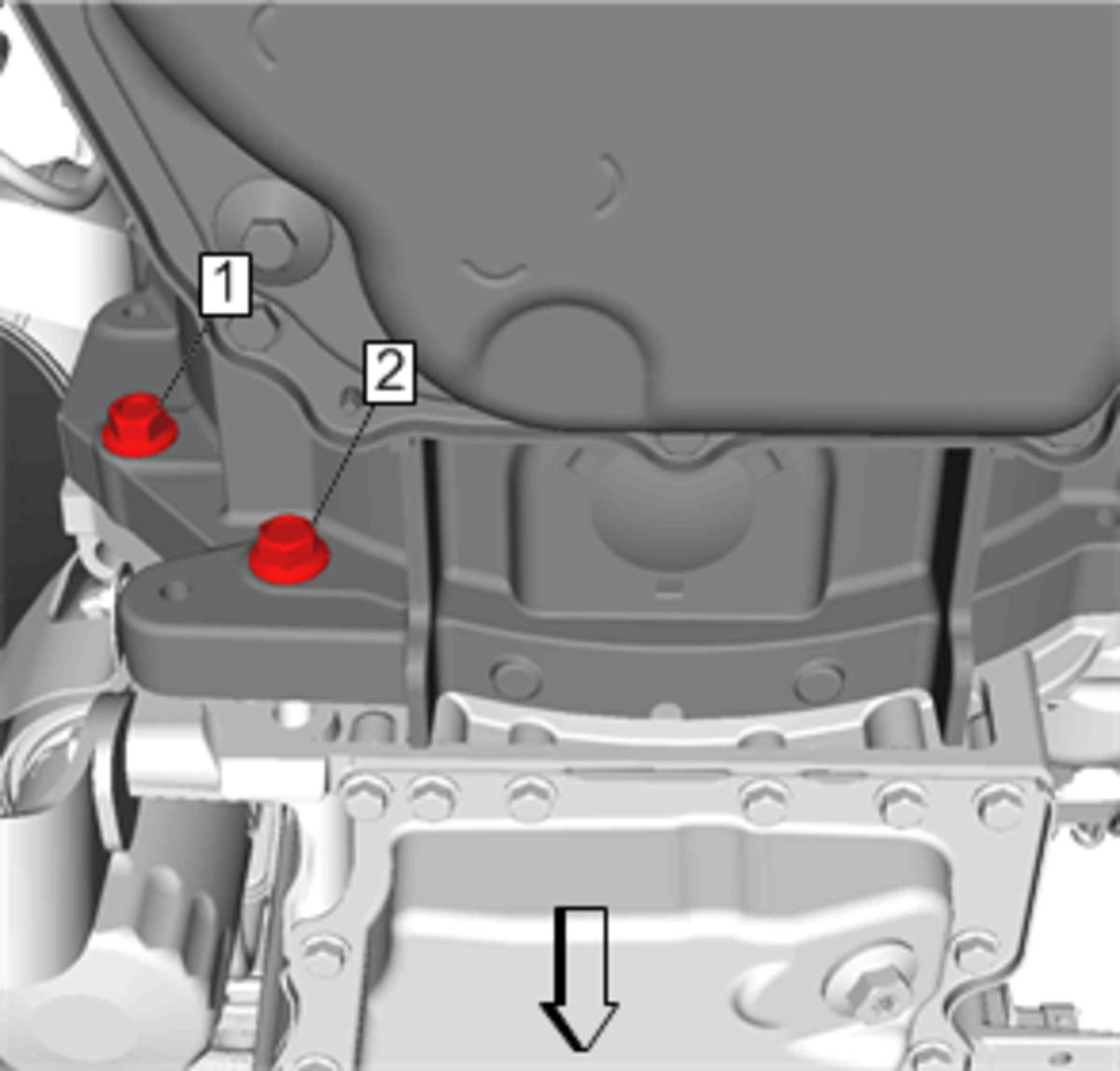

Remove the left upper transmission to engine bolts (1, 2).
Support the transmission with a suitable transmission jack.
Transmission Support - Remove. See Transmission Mount Replacement
Tilt the transmission downward just enough to gain access to the upper transmission fasteners.
Courtesy of GENERAL MOTORS COMPANY

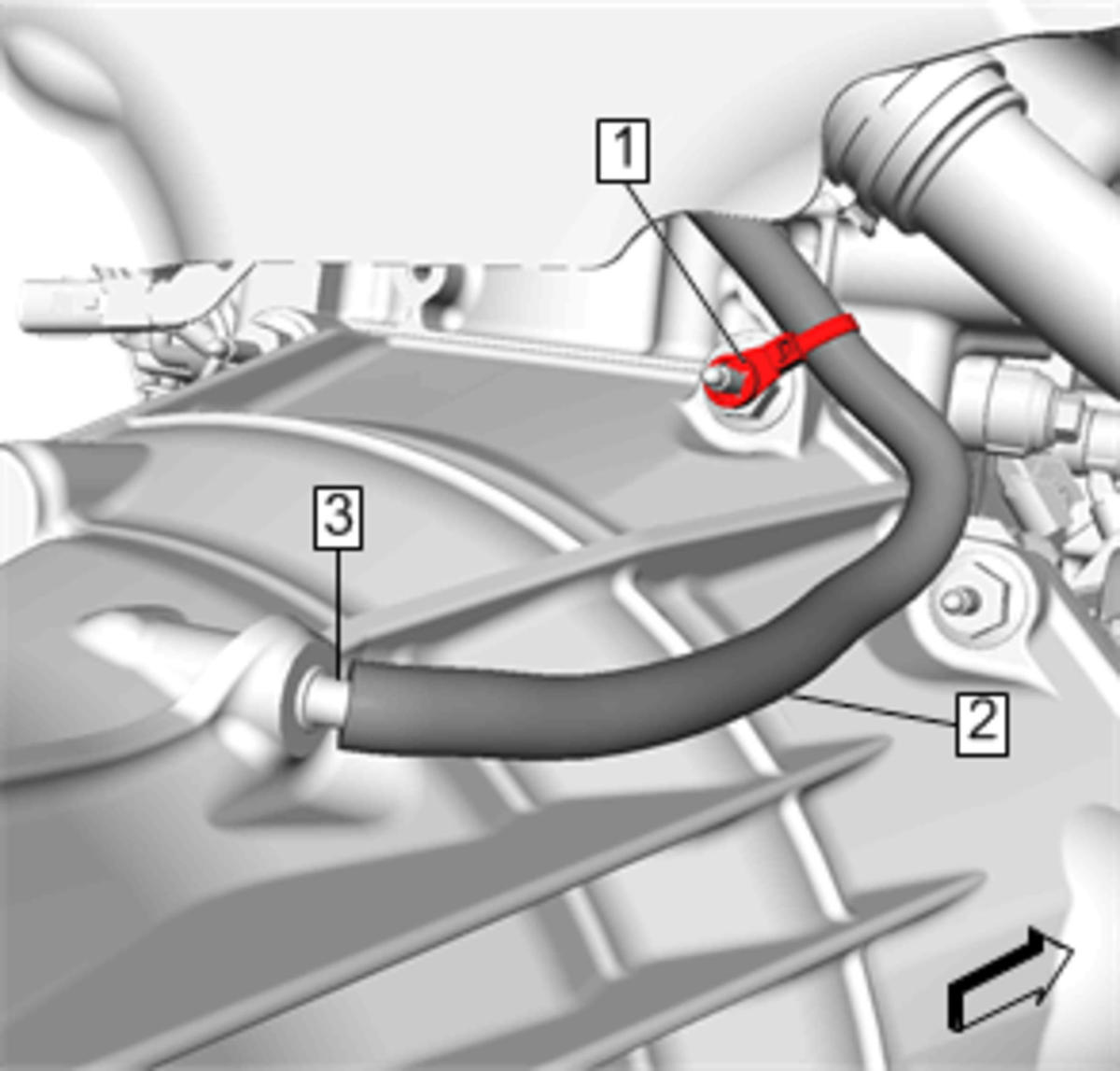

Disconnect the transmission vent hose (2) and retainer (1) from the transmission, then position aside.
Courtesy of GENERAL MOTORS COMPANY

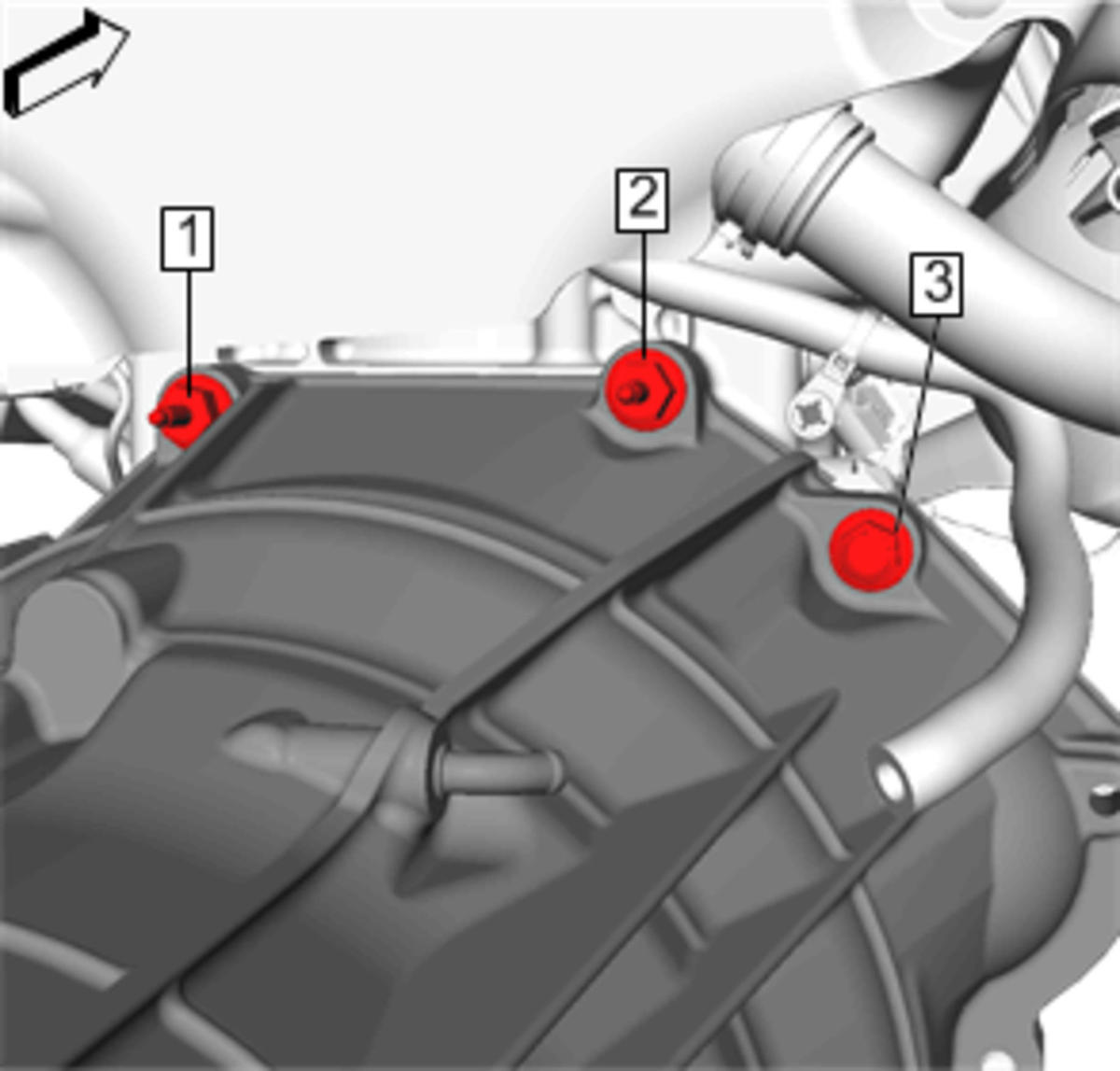

Remove the transmission to engine bolts (1, 2, 3).
Pull the transmission straight back.
Install the J-21366 strap onto the transmission bell housing to retain the torque converter.
Remove the transmission from the vehicle.
Transfer components as necessary.
Inspect the transmission fluid cooler, hoses, and pipes for leaks or damage. Replace as necessary.
