Transmission Mount Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

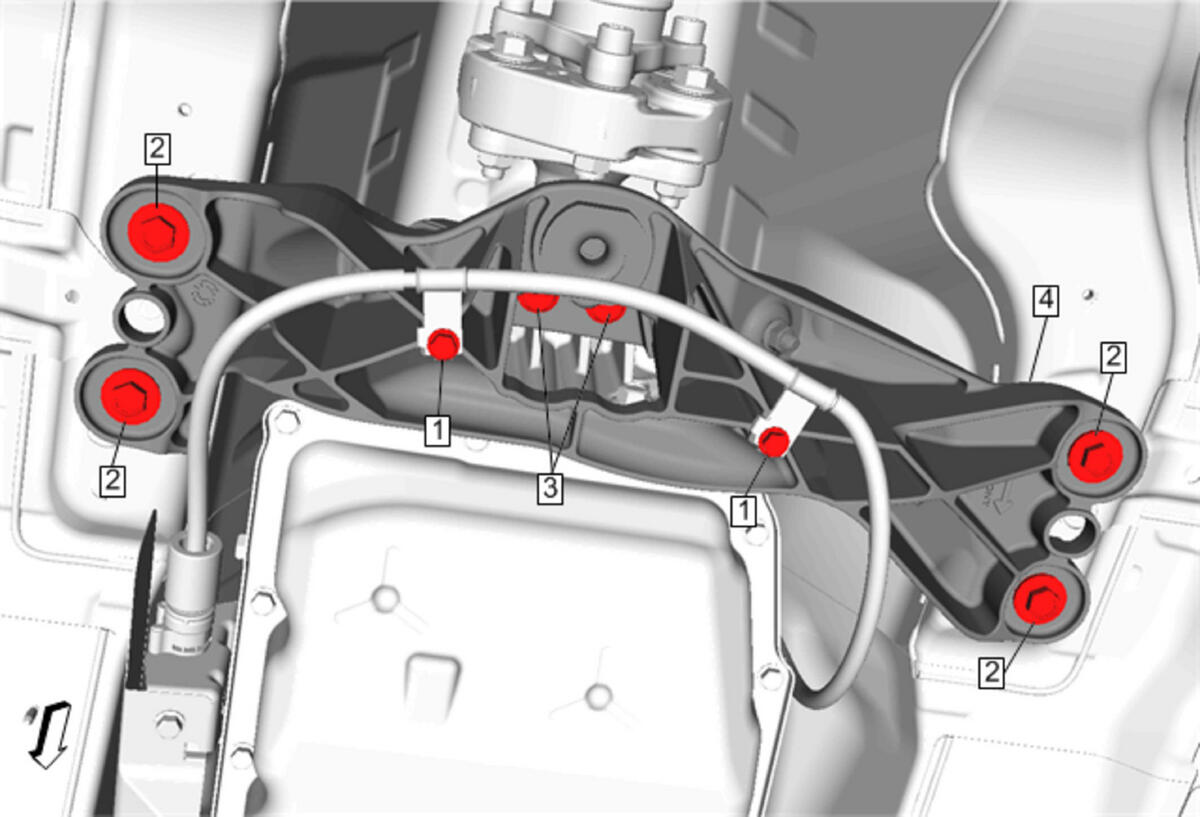

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
NOTE: The transmission support and the transmission mount are replaced as an assembly. Preliminary Procedures Raise and support the vehicle. Lifting and Jacking the Vehicle (ZL1)Lifting and Jacking the Vehicle (Convertible) Support the transmission with a suitable jack.
1	Shift Control Cable Bolt [2X] CAUTION: Refer to Fastener Caution Tighten 9 N.m (80 lb in)
2	Transmission Support Crossmember Bolt [4X] Tighten 58 N.m (43 lb ft)
3	Transmission Mount Bolt [2X] Tighten 58 N.m (43 lb ft)
4	Transmission Support Crossmember
