Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Remove the transmission fluid filter (4). Automatic Transmission Fluid, Fluid Pan and/or Filter Replacement
Courtesy of GENERAL MOTORS COMPANY

Remove and DISCARD the 2 transmission fluid baffle bolts, then remove the fluid baffle from the transmission. Transmission Fluid Baffle Replacement
Courtesy of GENERAL MOTORS COMPANY

Remove the transmission control wiring harness (4). Transmission Control Wiring Harness Replacement
Courtesy of GENERAL MOTORS COMPANY

Remove the manual shaft detent lever spring retaining bolt (1) and the manual shaft detent lever spring (2).
Courtesy of GENERAL MOTORS COMPANY

Pull back the spring (2), then disconnect the manual valve (1) from the manual shift shaft position switch assembly linkage (3).
Courtesy of GENERAL MOTORS COMPANY

Rotate the engine as necessary to obtain access to the retainer (2).
Using a suitable pry tool, unlock the retainer (2).
Remove the transmission fluid pump driven sprocket (1). Refer to transmission fluid baffle and driven sprocket in Control Valve Assembly and Transmission Wiring Harness Removal .
Courtesy of GENERAL MOTORS COMPANY

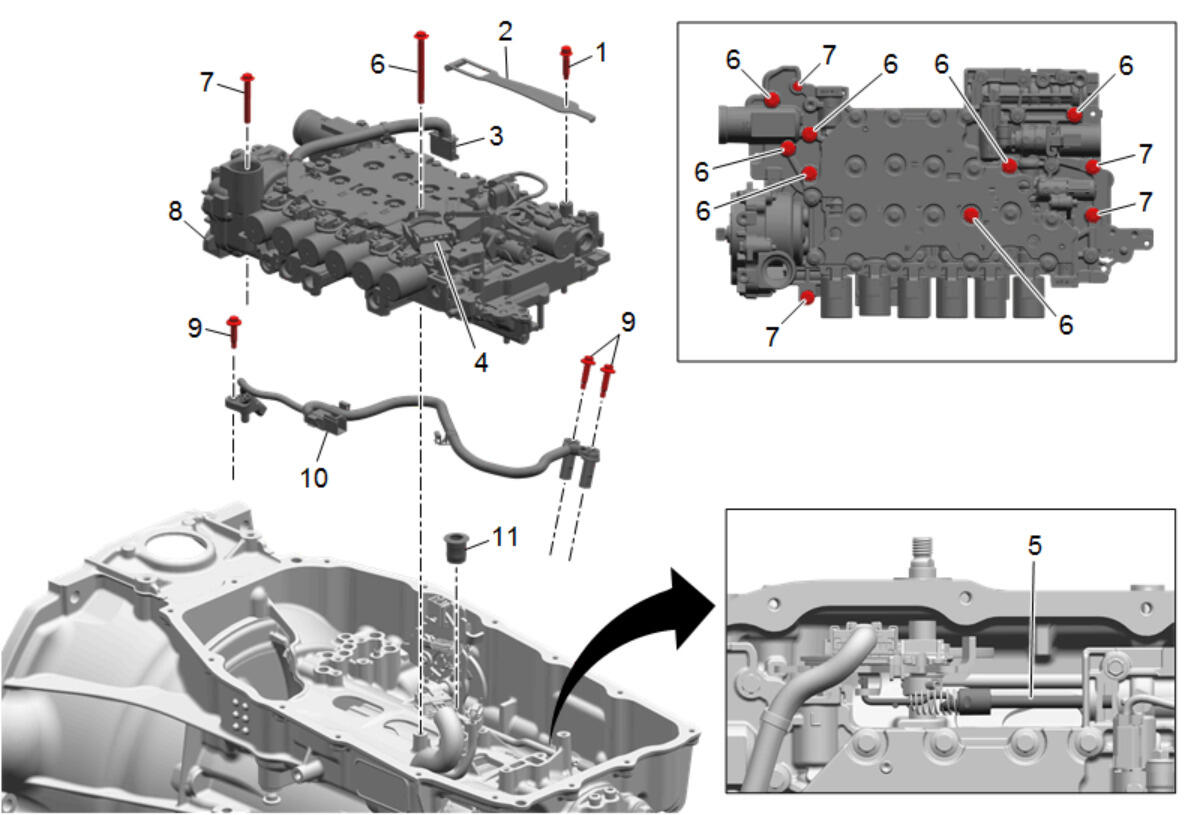

Remove the control valve body assembly (8). Control Valve Assembly and Transmission Wiring Harness Removal
