Installation Procedure

WARNING: This page is about a different variant/trim than selected.

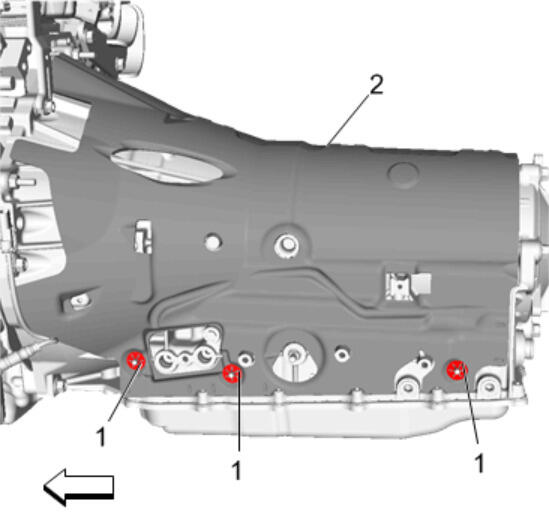

  1. GM4537783Courtesy of GENERAL MOTORS COMPANY

    Install the transmission housing sound insulator (2) to the vehicle.

  2. Install the 3 NEW left side transmission housing sound insulator transmission nut (1) to the transmission.
  3. GM5668950Courtesy of GENERAL MOTORS COMPANY

    Install the 3 NEW right side transmission housing sound insulator transmission nut (1) from the transmission.

  4. GM4535123Courtesy of GENERAL MOTORS COMPANY

    Transmission Range Selector Lever Cable Bracket (2) - Install - Automatic Transmission Range Selector Lever Cable Bracket Replacement

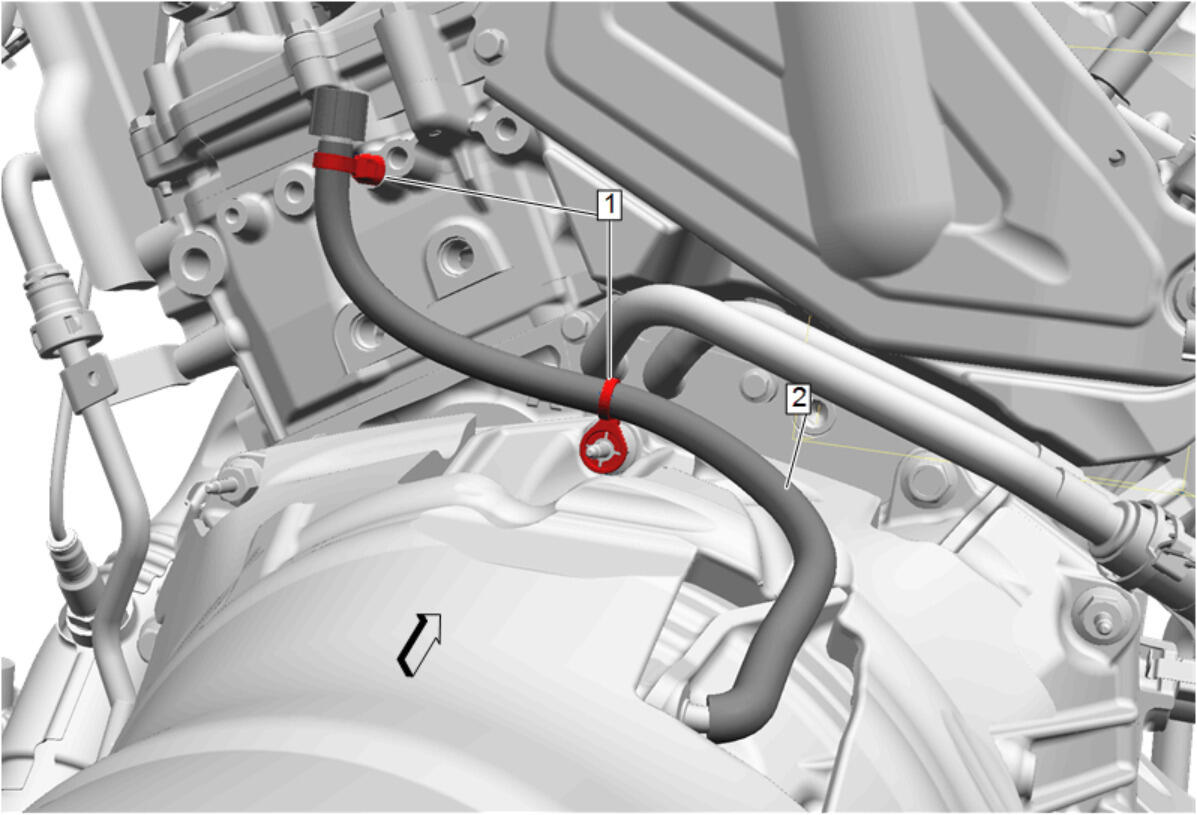

  5. GM5081886Courtesy of GENERAL MOTORS COMPANY

    Install the transmission vent hose. (2) Transmission Vent Hose Replacement (LGX)

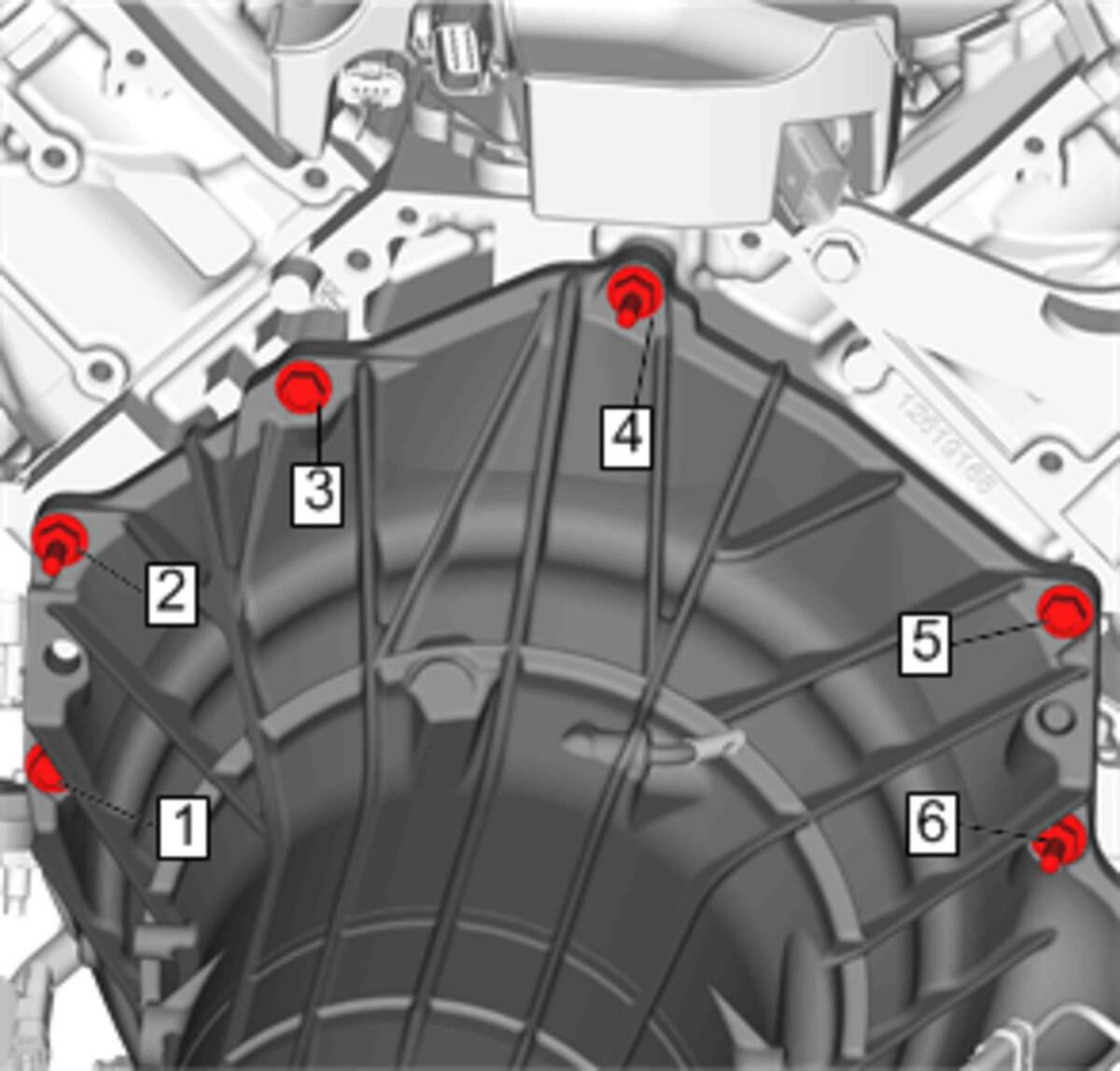

  6. GM4066436Courtesy of GENERAL MOTORS COMPANY

    Install the transmission. Transmission Replacement (with LGX)
