Installation Procedure
WARNING: This page is about a different variant/trim than selected.

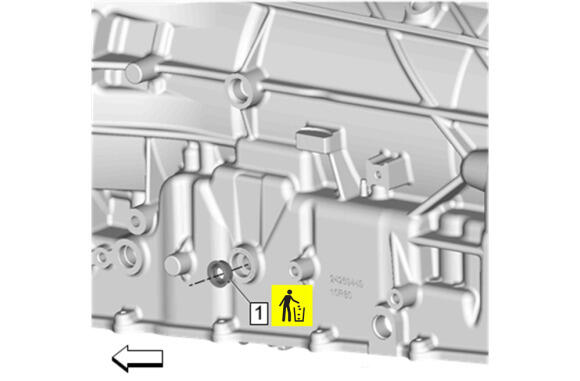

Install the NEW manual shift shaft seal (1) using DT-47770 seal installer.
Install the manual shift shaft aligning the position switch assembly (3) onto the shaft.
- Install the NEW manual shift shaft pin (1).
- Install the control valve body. Control Valve Body Replacement
- Install the automatic transmission range selector lever. Automatic Transmission Range Selector Lever Cable Replacement
Install the transmission mount (4). Transmission Mount Replacement
If equipped, install the underbody rear brace (2). Underbody Rear Brace Replacement (Convertible)
- Install the exhaust muffler. Exhaust Muffler Replacement (LGX, Coupe) , or Exhaust Muffler Replacement (LGX, Convertible) , or Exhaust Muffler Replacement (LT1, LT4, Coupe) , or Exhaust Muffler Replacement (LT1, LT4, Convertible)
