Installation Procedure
WARNING: This page is about a different variant/trim than selected.
- Note the part unique number (PUN) before installing the valve solenoid body. Control Valve Solenoid Body Identification Information

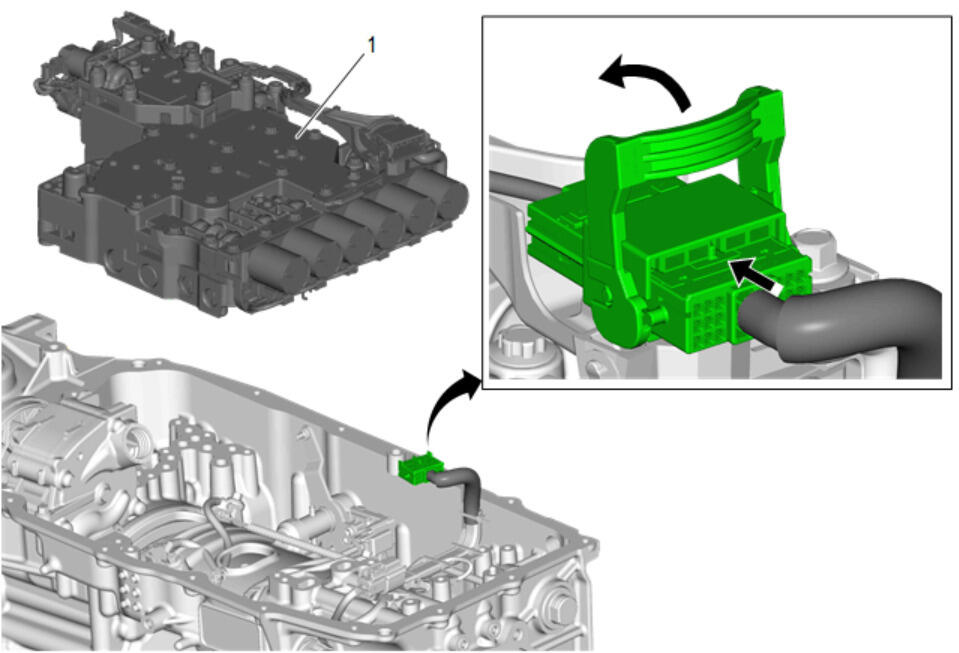

Control Valve Upper Body Assembly (1) - Install - Control Valve Assembly and Transmission Wiring Harness Installation
Install the transmission fluid filter (6) and fluid pan assembly. Automatic Transmission Fluid, Fluid Pan and/or Filter Replacement
- Perform the solenoid valve characterization reprogramming procedure. Q77 Transmission Control Solenoid Valve Characterization Programming (10L60, 10L80 or 10L90)
