Camshaft Cover - Top

WARNING: This page is about a different variant/trim than selected.

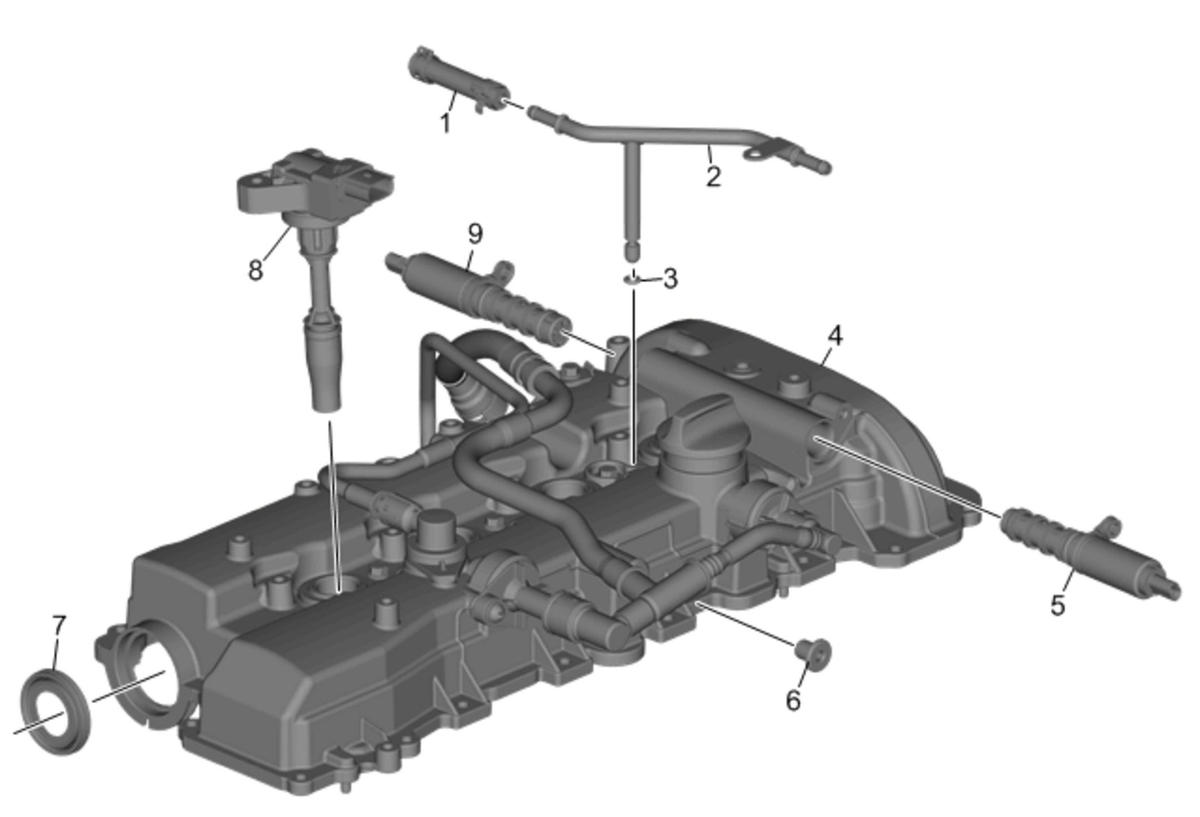

GM4182720

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts items in the following chart represent components shown in graphic above.

Camshaft Cover - Top

Callout	Component Name
Preliminary Procedure Thoroughly clean the camshaft cover and mating surfaces. Inspect each component, O-rings, and fasteners, and replace as necessary. Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant
1	Engine Coolant Air Bleed Hose
2	Engine Coolant Air Bleed Pipe
3	Engine Coolant Air Bleed Pipe O-Ring
4	Camshaft Cover
5	Camshaft Position Actuator Solenoid Valve - Intake
6	Camshaft Cover Plug CAUTION: Refer to Fastener Caution . Tighten 35 N.m (26 lb ft)
7	Vacuum Pump Seal Special Tools DT 45866 Input Shaft Seal Installer Equivalent regional tools: Special Tools .
8	Ignition Coil
9	Camshaft Position Actuator Solenoid Valve - Exhaust
