Air Cleaner Element Replacement (LT1)

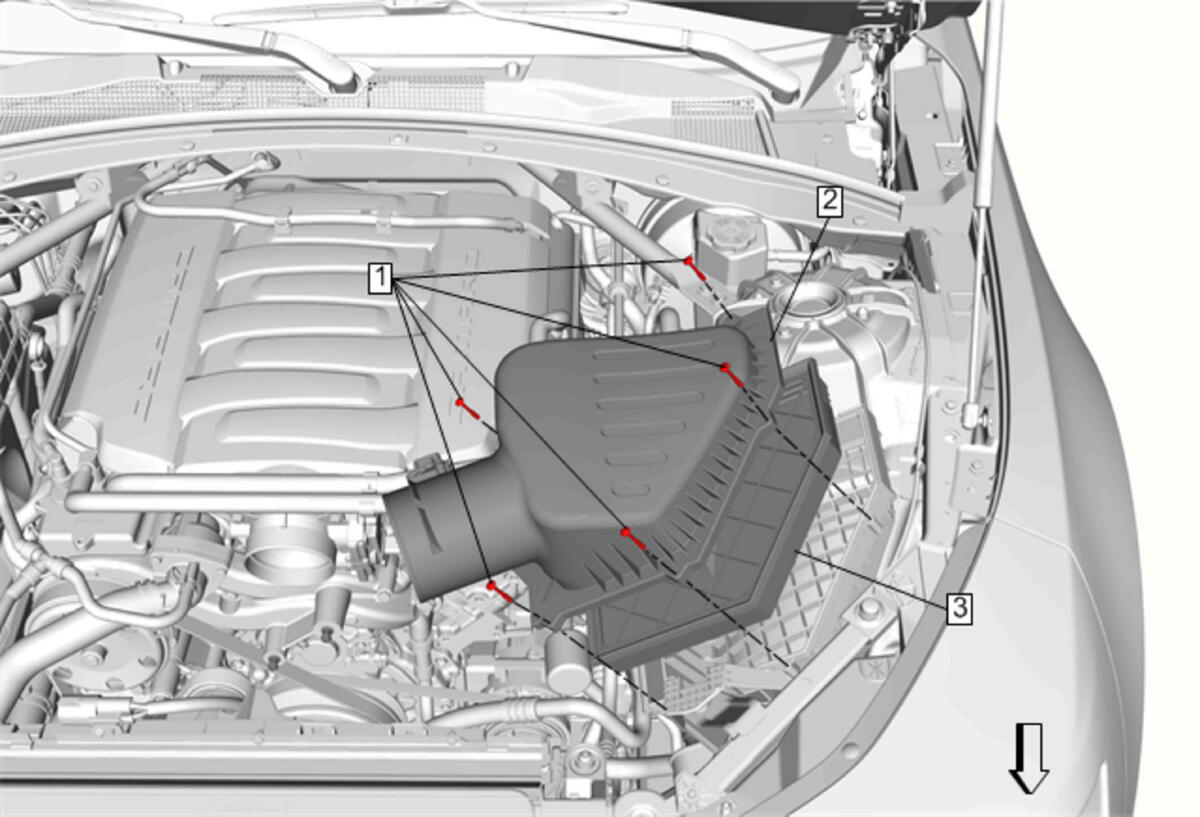

GM4194576Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Callout Component Name

Preliminary Procedures

  1. Air Cleaner Outlet Duct Replacement (LT1)
  2. Disconnect the electrical connector.
1 Air Cleaner Upper Housing Bolt [5x]
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Air Cleaner Upper Housing
3 Air Cleaner Element
