Front Floor Console Trim Plate Replacement (Automatic)

Courtesy of GENERAL MOTORS COMPANY

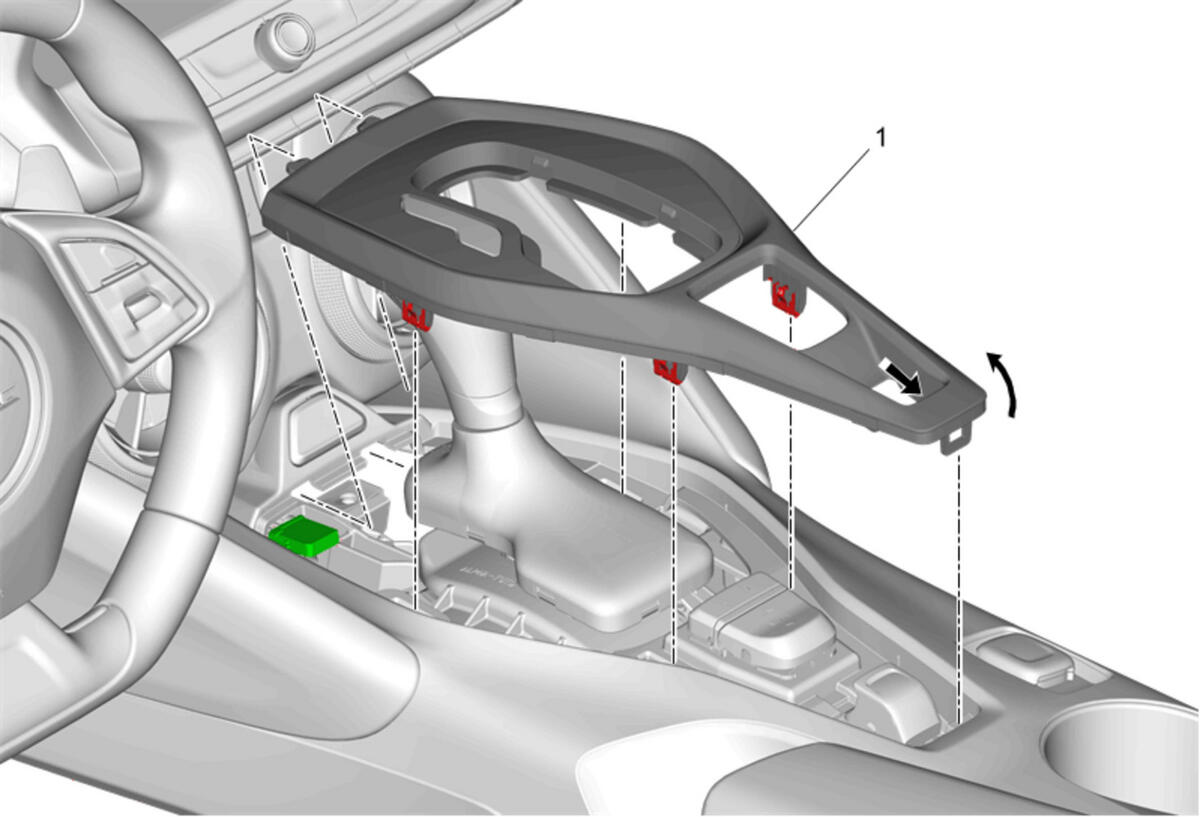

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure It is only necessary to release the boot from the trim plate. Transmission Control Lever Knob Replacement
1	Front Floor Console Trim Plate Procedure Use two flat bladed trim tools. One between the parking brake switch and the trim plate. The other trim tool on one side and work the trim plate up. Pull the trim plate rearward to clear the tabs. Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
It is only necessary to release the boot from the trim plate. Transmission Control Lever Knob Replacement

Front Floor Console Trim Plate

Procedure

Use two flat bladed trim tools. One between the parking brake switch and the trim plate. The other trim tool on one side and work the trim plate up.
Pull the trim plate rearward to clear the tabs.
Disconnect the electrical connector.
Transfer components as necessary.
